F1 Model 812 Flexible Array Loudspeaker

From Bose Portable PA Encyclopedia
(Redirected from F1 Subwoofer)
Jump to: navigation, search

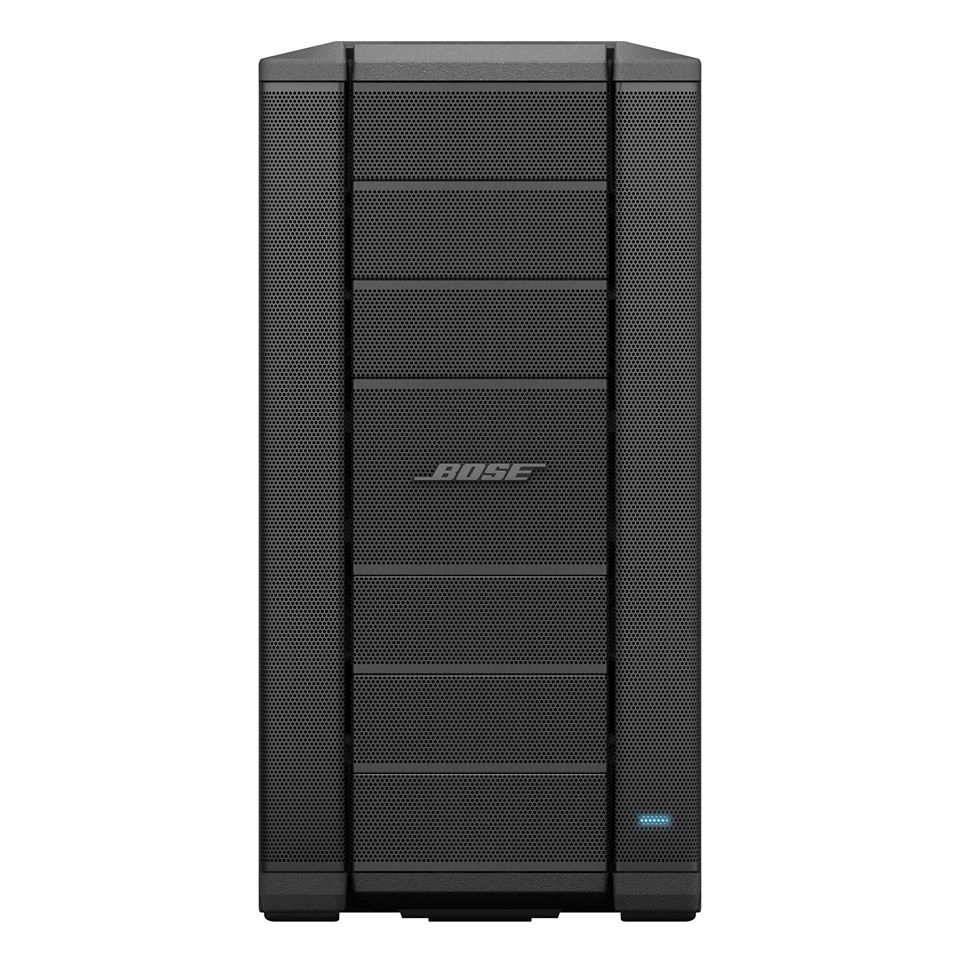

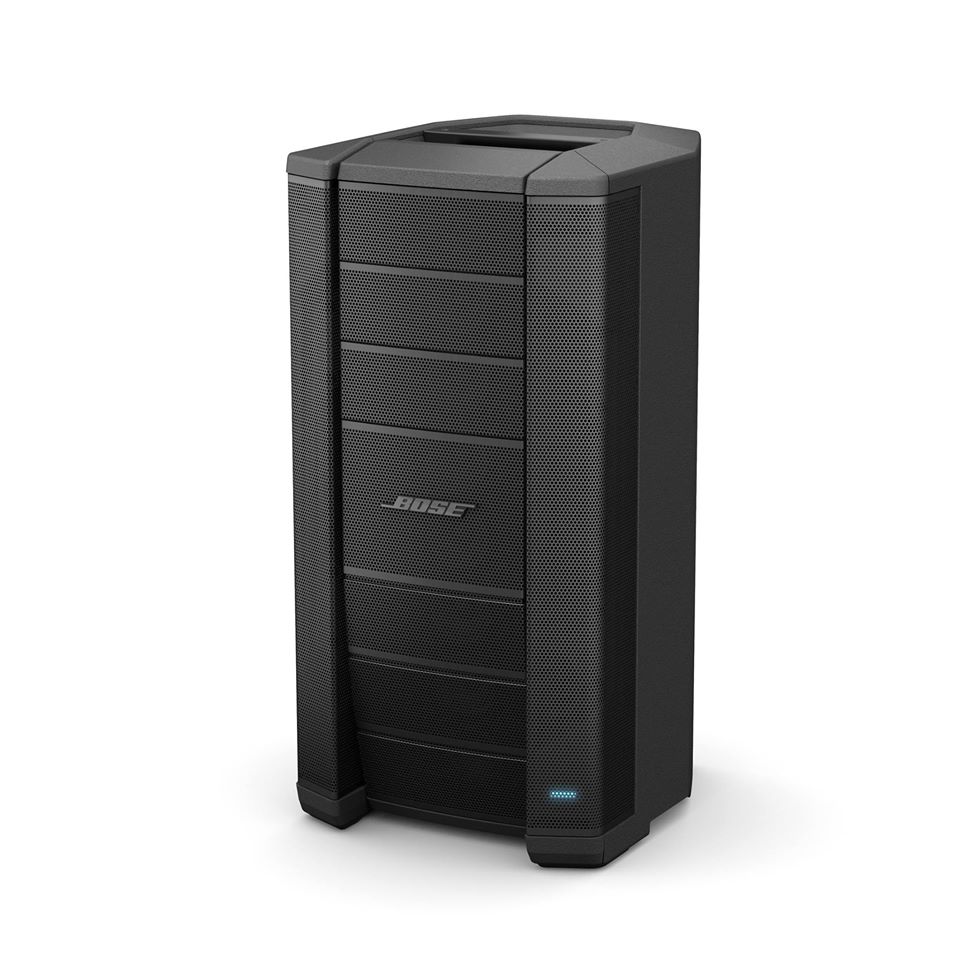

F1 Model 812 Photos


Coverage Patterns

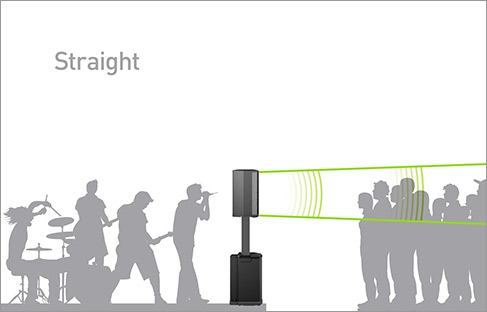

Straight Array

F1 Coverage Straight.jpg

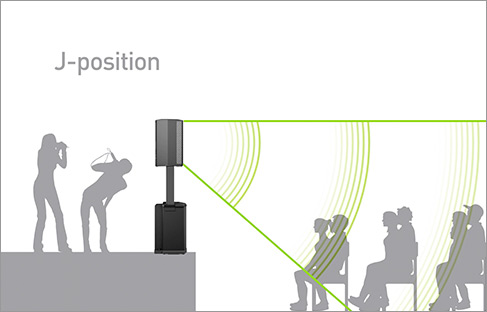

J Array

F1 Coverage J.jpg

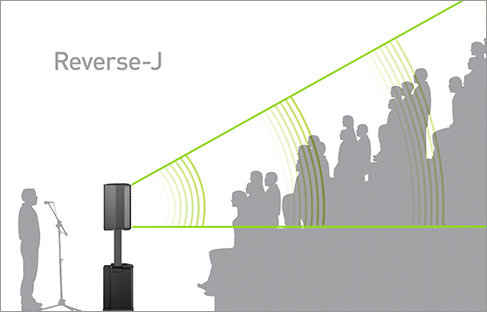

Reverse J Array

F1 Coverage Reverse J.jpg

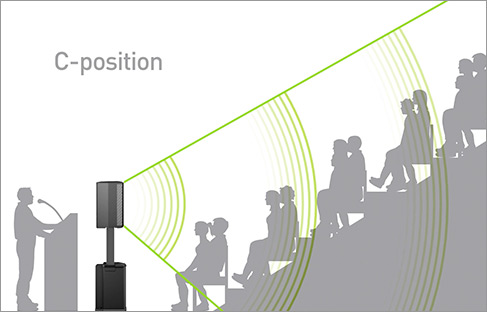

C Array

F1 Coverage C.jpg


Bottom / Top


Rear Panel IO

F1 Model 812 IO Panel

Volume Controls and Signal / Clip lights

Typically you will want to set your source (usually a mixer or T1 ToneMatch Audio Engine or ToneMatch Mixer[1]) to the maximum you can without clipping. On a mixer this may be shown as unity or 0.

When setting the Volume Control on the F1 Model 812 you can turn up the Volume Control until you see solid red, and then turn it down a little. Occasional red flickers (up to a second long) are okay. This may start to happen at -5 dB before clipping or with transient peaks. You will see these to warn you when you are approaching clipping. If you see solid red then you may be clipping.

F1 Model 812 IO panel clip limiter lights


It is completely fine to turn up the Volume well beyond 12:00 o'clock if you need to.

After you have found the maximum volume available you can control the system volume at the source. You probably won't have to change this setting on the F1 Model 812 unless you use a different source.

You won't damage the system if the red lights are visible. The internal limiter will protect the system. You can tell when the limiter is working. The yellow limiter light will come on.

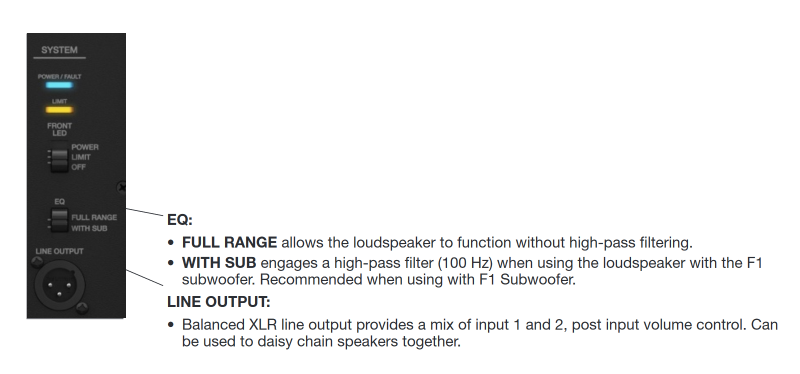

EQ

F1 Input Panel EQ.png.png

F1 Setting EQ Selector Switches.jpg

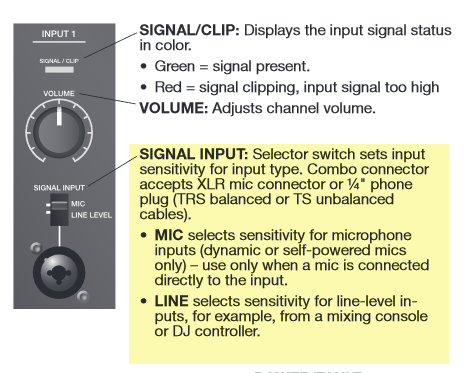

Input 1

The SIGNAL INPUT switch sets the input sensitivity. The MIC setting does not apply any microphone specific EQ. In this way, it is different from the L1 Compact Channel 1 input. Ideally the F1 Model 812 should receive a input level of +24 dBu to use the Line Level setting. If your source has an output level lower than that it's perfectly okay to use the MIC setting.

F1 Input Panel Signal Input.png

Input 2 Volume Control / Mute

Turning the Volume Controls all the way down sets the input to its lowest level but a strong signal may still be audible. This does not indicate a malfunction.



Use Case Scenarios

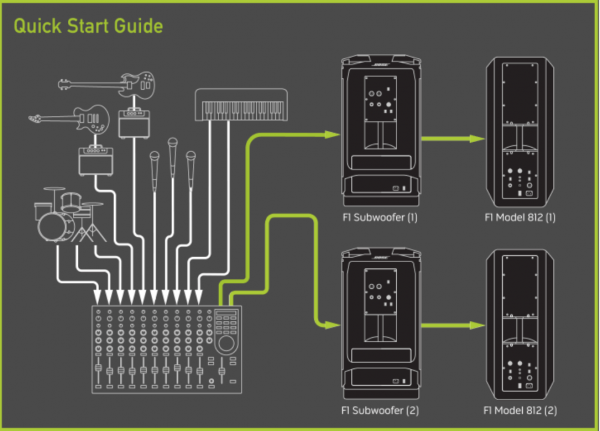

Quick Start Guide

F1 Quick Start Guide.png

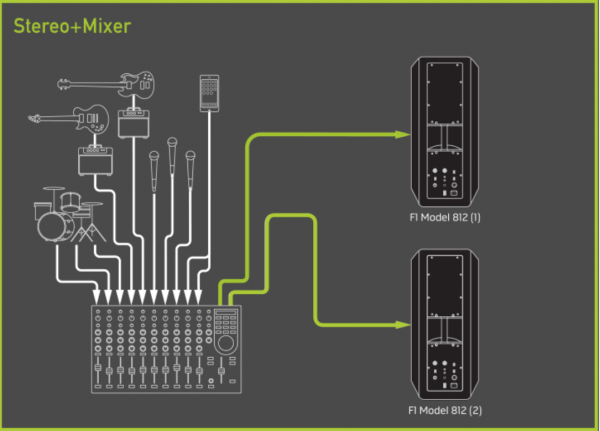

Stereo + Mixer

F1 Stereo+Mixer.png

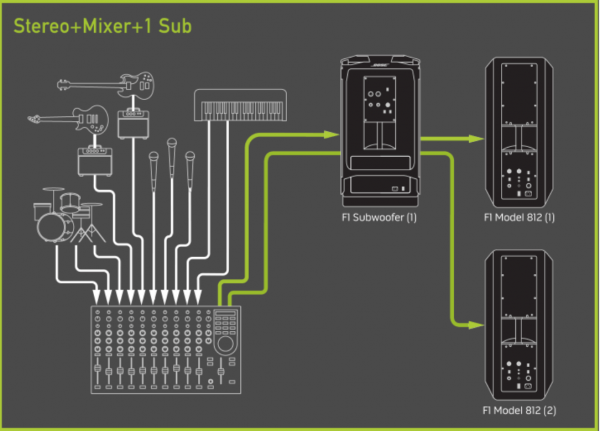

Stereo + Mixer + 1 Sub

F1 Stereo+DJ Mixer+1Sub.png

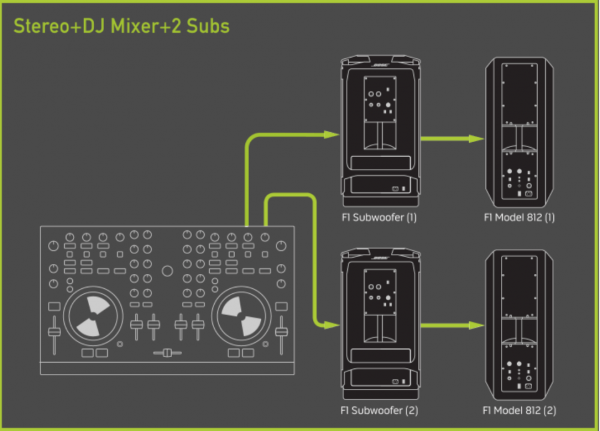

Stereo + DJ Mixer + 2 Subs

F1 Stereo+DJ Mixer+2Sub.png

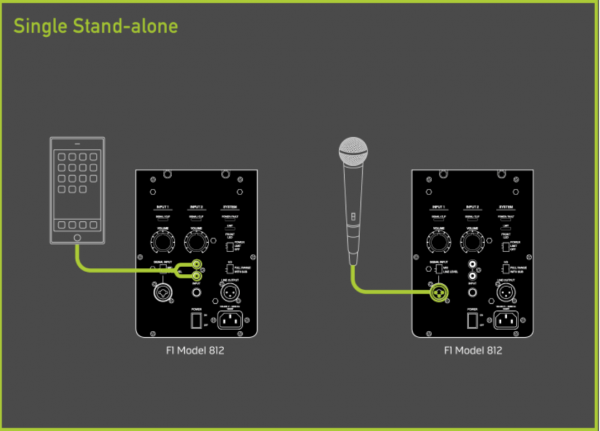

Single Stand-alone

F1 Single standalone.png

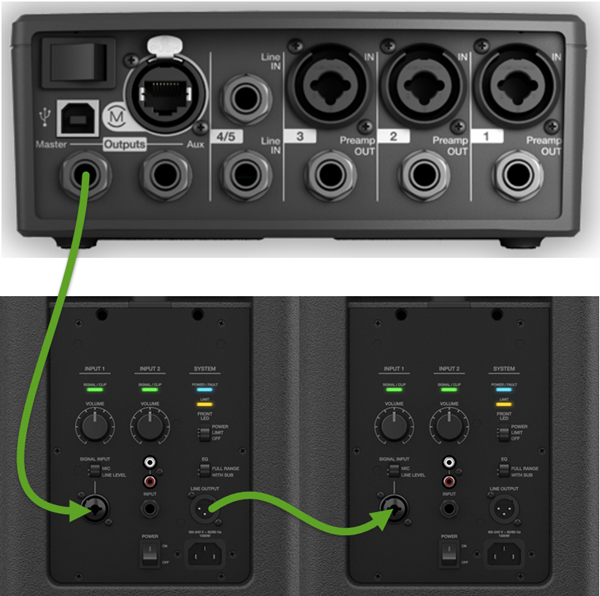

T1 ToneMatch Audio Engine

Please see: T1 ToneMatch® Audio Engine to F1 System

T1 to F1

--== Please click the picture above to see the full article ==--

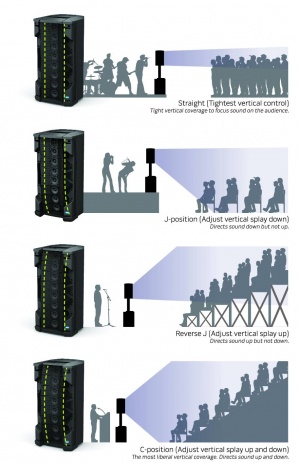

F1 Model 812 Flexible Array Loudspeaker Digital Signal Processing (DSP)

Dispersion Patterns.jpg

There is Digital Signal Processing in the F1 Model 812. It automatically optimizes the equalization to suit the position of the Flexible array (Straight, J, Reverse-J, C) and responds to the EQ switch (FULL RANGE/WITH SUB) so you can use the F1 Model 812 with the F1 Subwoofer. There's no mention of the DSP in those terms because this all happens automatically. The DSP is not user accessible except by changing the position of the flexible array and the EQ switch.

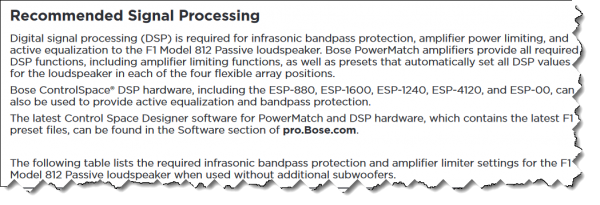

Why Does the F1 Model 812 Passive Require Digital Signal Processing

The F1 Model 812 Passive requires active equalization because the F1 Model 812 Passive does not have a amplifiers or digital signal processing. Looking at the documentation for the Bose F1 Model 812 Passive Loudspeaker Installation and Safety Guidelines you will find a section about the active equalization that must be provided for the F1 Model 812 Passive to provide infrasonic bandpass protection, amplifier power limiting and active equalization.

F1 Model 812 Passive DSP.png

If you read further in the Bose F1 Model 812 Passive Loudspeaker Installation and Safety Guidelines you will find recommended settings when using external processing. The F1 Model 812 uses similar settings.

Frequently Asked Questions

F1 Model 812 and F1 Subwoofer

F1 Model 812 FAQ

What is the F1 Model 812 system?

The Bose F1 Model 812 flexible array loudspeaker is the first powered loudspeaker that delivers the benefits of an adjustable array in a portable system package. Its unique flexible baffle allows you to tailor the loudspeaker’s vertical coverage to a wide variety of listening environments. Simply push or pull the array into position to create “Straight,” “C,” “J” or “Reverse J” coverage patterns. Once set, the system automatically updates the EQ to maintain optimum tonal balance for each coverage pattern. So whether you’re playing at floor level, on a stage, or facing raked seats or bleachers, you can adapt your PA to the room.

Engineered with an array of eight high-output drivers, a high-powered 12-inch woofer and a lower crossover point, the loudspeaker delivers full-range, high-SPL performance while maintaining vocal and midrange clarity that’s dramatically better than conventional loudspeakers.

The Bose F1 subwoofer packs all the power of a larger bass box into a more compact design that’s easier to carry and fits in a car. A mounting stand for the loudspeaker is stored right in the body of the subwoofer, making setup fast and easy. The stand even includes cable channels to neatly hide wires.

The loudspeaker and subwoofer combined deliver 2,000 watts of power, so you can fill nearly any room with sound.

And now getting there is easier, too. The loudspeaker and subwoofer feature strategically-placed handles for easy transportation.

How is the F1 Model 812 different from a conventional PA?

Current popular powered loudspeakers are standard two-way designs consisting of a single horn-loaded compression driver for high-frequency reproduction and a single woofer for mid- and low-mid-frequency output.

Since the Bose F1 Model 812 loudspeaker has an array of eight high-output drivers, mid/high-frequency response is much cleaner and less harsh sounding when compared to a traditional horn.

Characteristically, horns have a fixed output pattern that isn’t adaptable to typical performance spaces. These fixed-pattern loudspeakers are commonly positioned on pole mount stands where high-frequency content is projected over listeners’ heads, making vocal intelligibility difficult.

The Bose F1 Model 812 flexible array is quite useful for quickly and easily adjusting the loudspeaker’s coverage for a variety of performance and listening spaces, ensuring quality reproduction without the need for complex placement.

How does the flexible array work?

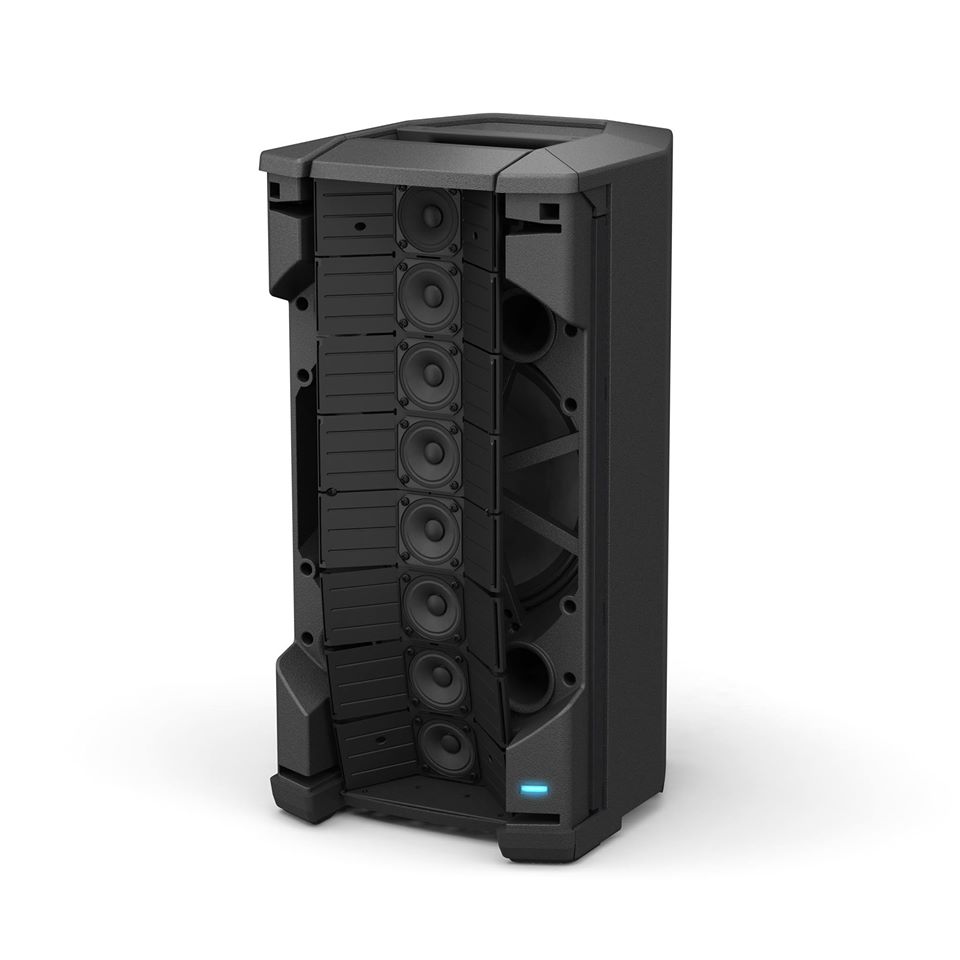

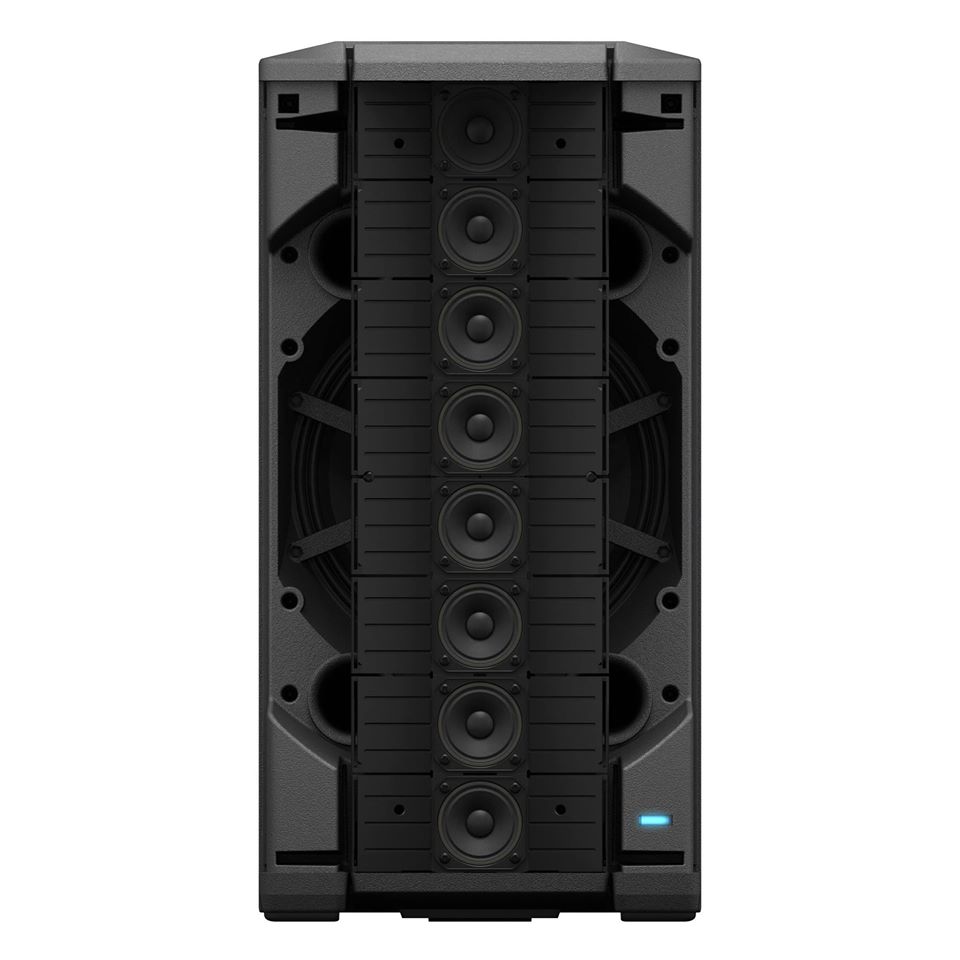

The eight drivers on the F1 Model 812 flexible array are mounted on a specially designed flexible baffle that is hinged in two locations. When the array position is changed, the loudspeaker’s internal EQ automatically changes according to the array’s position: “Straight,” “C,” “J” or “Reverse J.” This allows the loudspeaker to maintain tonal balance no matter which position is used.

Does the F1 Model 812 have a woofer?

Yes. The high-output 12-inch woofer is mounted behind the flexible array.

Can I use the F1 Model 812 with a standard speaker stand?

Yes, there is a pole cup on the bottom of the enclosure that accepts common tripod speaker stands.

What is the recommended subwoofer?

For best performance, we recommend using the Bose F1 subwoofer. However, other powered subs can be connected to the F1 Model 812 loudspeaker.

What is the F1 subwoofer?

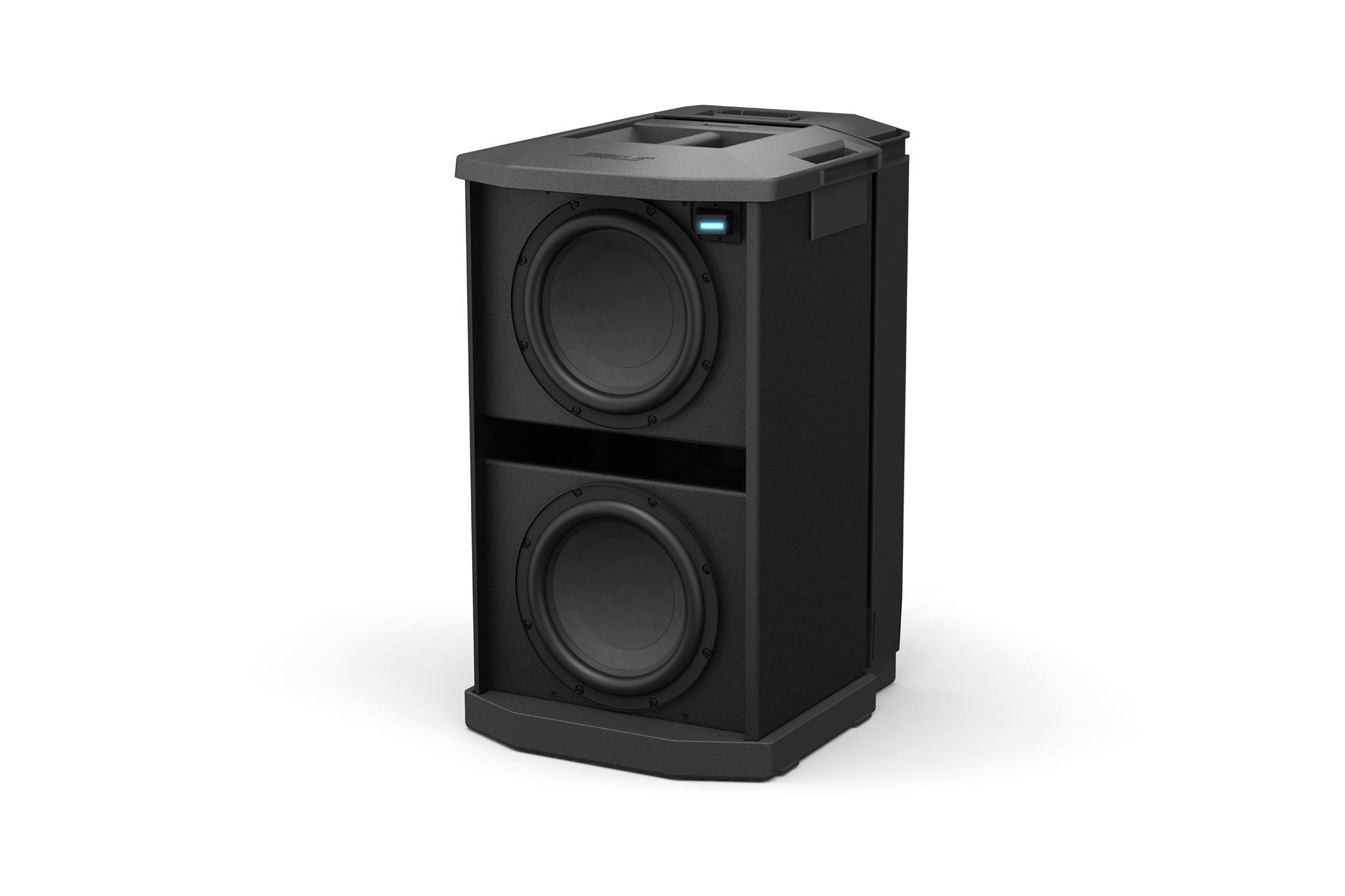

The F1 subwoofer is a compact bass module designed for use with the F1 Model 812 loudspeaker. Its powerful amplifier and dual drivers produce bass as much as subs nearly double its size.

The F1 subwoofer features:

  • 2 X 10" high-excursion drivers
  • 1,000 watts
  • 2 x input channel with XLR, 0.25-inch combo connector
  • 2 x XLR balanced line out
  • Polarity reverse switch
  • HPF enable
How many F1 subwoofers can you connect to an F1 Model 812 loudspeaker?

We recommend one sub per F1 Model 812 loudspeaker. However, you can connect as many as needed.

Can the F1 systems be used with Bose L1® systems?

Yes. Bose L1® systems can be used in conjunction with the F1 Model 812 loudspeaker as a supplemental fill or stage monitor.

Can it be used with the T1 ToneMatch&#9415 audio engine?

Yes. The F1 system is compatible with the ToneMatch audio engine. The T1 engine is a powerful multichannel audio device designed for musicians to use Bose portable pro loudspeaker systems. It includes our largest library of ToneMatch presets, proprietary EQ, a complete suite of studio-class effects and processing, and five channel inputs.

What sources can I plug into the mid/high?

The rear panel of the F1 Model 812 loudspeaker is equipped with XLR/TS combo jacks, a 0.25-inch instrument jack and stereo RCA inputs. When an external mixer is not used, a wide variety of instruments or sources can be connected directly. Common sources include:

  • A dynamic microphone
  • An acoustic instrument with a pickup system
  • Electronic keyboard
  • Electric bass guitar
  • CD or MP3 player
What are the weights and dimensions of the F1 Model 812 system?

F1 Model 812 loudspeaker
44.5 lbs. (20.18 kg)
26.1" H x 13.1" W x 14.6" D (664.66 x 334.3 x 372.5mm)

Shipping Weight: 54.5 lbs (24.72 kg)

F1 subwoofer
55 lbs. (24.9 kg)
27" H x 16.1" W x 17.6" D (688 x 410.16 x 448.5mm)

Shipping Weight: 65 lbs (29.4 kg)

F1 system stack
99.5 lbs (45.7 kg)
73.5" H x 16.1" W x 17.6" D (1868 x 410.16 x 448.5mm)

Does the system ship with carrying bags/covers?

Bags and covers are available as optional accessories.

Are hard shell cases available for the products?

Bose does not offer any hard shell cases.

What is included in the F1 Model 812 box?
  • F1 Model 812 loudspeaker
  • AC power cord
  • F1 Model 812 Owner’s Guide
What accessories are available?
  • Brackets
  • Bags and covers

    • Full-range padded bag with zipper
    • Subwoofer padded bag with zipper
    • Subwoofer slipcover
Can the F1 Model 812 system be used outdoors?

Yes. The system can be used inside or outside. However, it must never be exposed to precipitation or extended periods of direct sunlight. In cases of light rain, take precautions to cover the back panel of the loudspeaker. Water must not get into the air inlet slits inside the back I/O panel, handle recess or front grille.

The system has been tested to operate in temperatures from 0° – 50° C (32° – 122° F), and be stored in temperatures from -30° – 70° C (-22° – 158° F).

Where can the F1 Model 812 system be used?

The F1 Model 812 loudspeaker and F1 subwoofer combination is suitable for bands of all musical styles, DJs and voice-only applications. Due to the versatility of the flexible array, the system also can be used in a wide range of locations.

What kinds of musical performers (singers, bands, DJs, etc.) can use the new technology?

There are no restrictions in this regard. Any single voice, instrument and group size will benefit from the advantages of hearing themselves better, of being in complete control of their performance, of having audiences hear them better and of being able to set up and perform in just minutes.

Can DJs use this system?

Yes. The F1 Model 812 loudspeaker and F1 sub are ideal for DJs that want high power and sonic clarity in a portable system. The F1 subwoofer’s compact design and high capability eliminate the need for transporting subwoofers twice their size. Plus, the integrated stand eliminates ugly tripod bases that expose hanging wires and create tripping hazards.

Can acoustic instruments be amplified with the F1 Model 812 system?

Yes. When an external mixer is not in use, an acoustic instrument equipped with a pickup system may connect directly into the F1 Model 812 system.

Where can I purchase F1 flexible array systems in the United States?

You can purchase F1 flexible array systems directly from Bose through one of the following methods:

  • Call our Sales Solutions Team at 800-444-2673.
  • Purchase on the web at Bose.com. Click on “Shop Online,” then “Speakers” and then “Portable PA.”
  • Visit select Bose Stores that carry the F1 system.

All Bose direct purchases include a 45-day Better Music Guarantee. This means you can test any F1 flexible array system in your own environment and return it for a credit within 45 days of purchase. You are only responsible for the return shipping to Bose.

You can also purchase F1 flexible array systems at Bose authorized resellers, such as:

  • Guitar Center
  • Musician’s Friend
  • Sweetwater
  • American Musical Supply
  • zZounds
  • Specialty dealers
What is the warranty period on the F1 Model 812 system?

The F1 Model 812 and F1 sub both carry a two-year limited warranty on electronics and a five-year warranty on transducers. Both warranties are transferable with the product even if the ownership changes.

What is the 45-day Better Music Guarantee?

At Bose, we recognize that customers may want to experience the F1 flexible array system in their own environment with their specific gear. That is why we allow you to purchase and use the system in your specific application for up to 45 days. If for any reason you are not satisfied, you may return it for a refund. This offer is exclusive to Bose direct sales channels.

Where can I collaborate with Bose staff and existing owners to learn more about how the F1 Model 812 system can work for my specific application?

We host a public forum that allows our helpful user community to share their experiences and collaborate in real time on topics that are important to them. You will find extensive, application-specific documentation and helpful hints. The forum is fully searchable and can be accessed at http://Bose.infopop.cc.

You may also contact our product support team and speak with our knowledgeable staff of musicians. They may be reached at 877-335-2673.

Are the products repairable? What are the replacement costs?

Yes. Certain products are replaceable or repairable to an extent. U.S. customers may call 877-335-2673 or email support@Bose.com for further details. Customers outside of the U.S. should refer to their local Bose website.



Rotate the Logos

If you want to operate the F1 Model 812 horizontally, you can rotate the logos so they are parallel with the floor.

Gently - pull the logo straight out about 1/4" of an inch.

No tools required: I used my fingers above and below the OS in BOSE. Do not pull on the tails in the B or E.

It's spring loaded. So pull it straight out about 1/4" and then you can rotate it 90° at a time in any direction. Then when you release it, it should slip back flush with the grille.

Odor

April 19, 2016

On behalf of the Bose Professional Team:

Hello F1 Loudspeaker Group!

It’s come to our attention that some of our users are concerned about a smell coming out of F1 Subwoofers during the first few usages. This smell is out-gassing and it is actually normal for an odor to be released from a new loudspeaker. This is a release of chemicals due to temperature or pressure. In almost all cases this goes away after the first few uses of the product. If anyone feels their product is behaving abnormally, we encourage our users to reach out to our support department.

Call Bose® Product & Technical Support at (877) 335-2673 (U.S. and Canada only) Monday-Friday: 9:00 AM - 9:00 PM ET

If there is any additional news from Bose about this, it will be posted on the Bose Forum. http://bose.infopop.cc/eve/forums/a/tpc/f/6120043776/m/2950036286 — Source: Bose Forum

Grille Removal

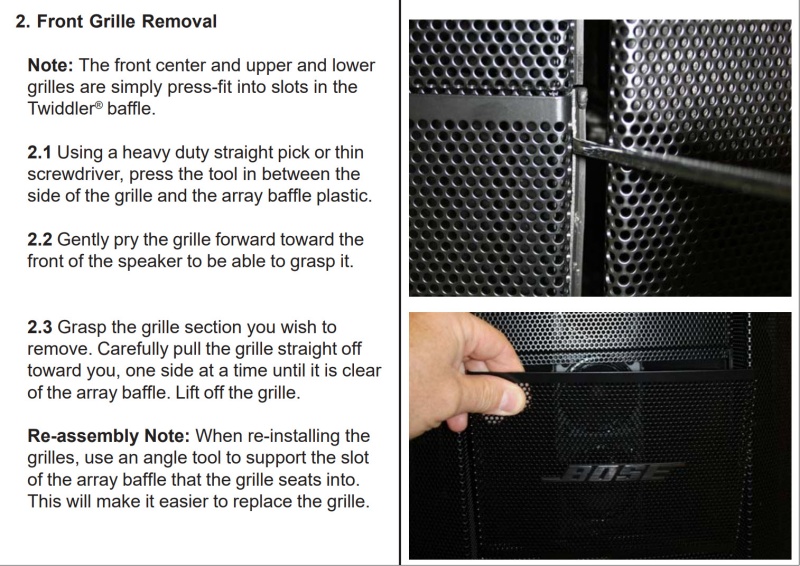

Front Grille

F1 Front Grille Removal.jpg

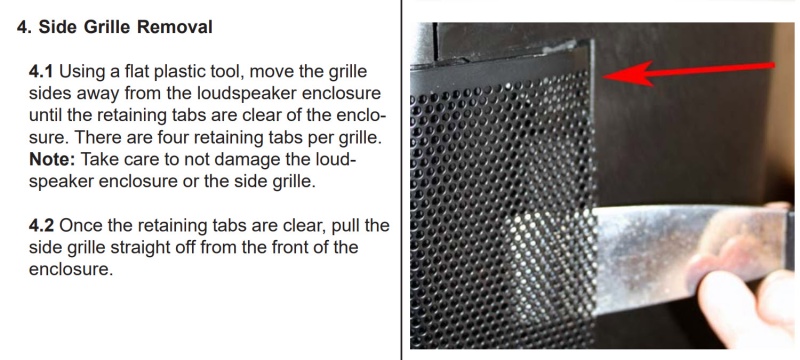

Side Grille

F1 Side Grille Removal.jpg

Physical Data

F1 Model 812

Enclosure
F1 Model 812: High impact composite materials

Dimensions
F1 Model 812 loudspeaker: 26.1" H x 13.1" W x 14.6" D (664.66 x 334.3 x 372.5mm)
F1 system stack: 73.5" H x 16.1" W x 17.6" D (1868 x 410.16 x 448.5mm)

Net Weight F1 Model 812 loudspeaker: 44.5 lbs (20.18 kg) F1 system stack: 99.5 lbs (45.7 kg)

Color
Black

Package Contents
1 F1 Model 812
1 IEC Line Cord
1 Owner’s Guide

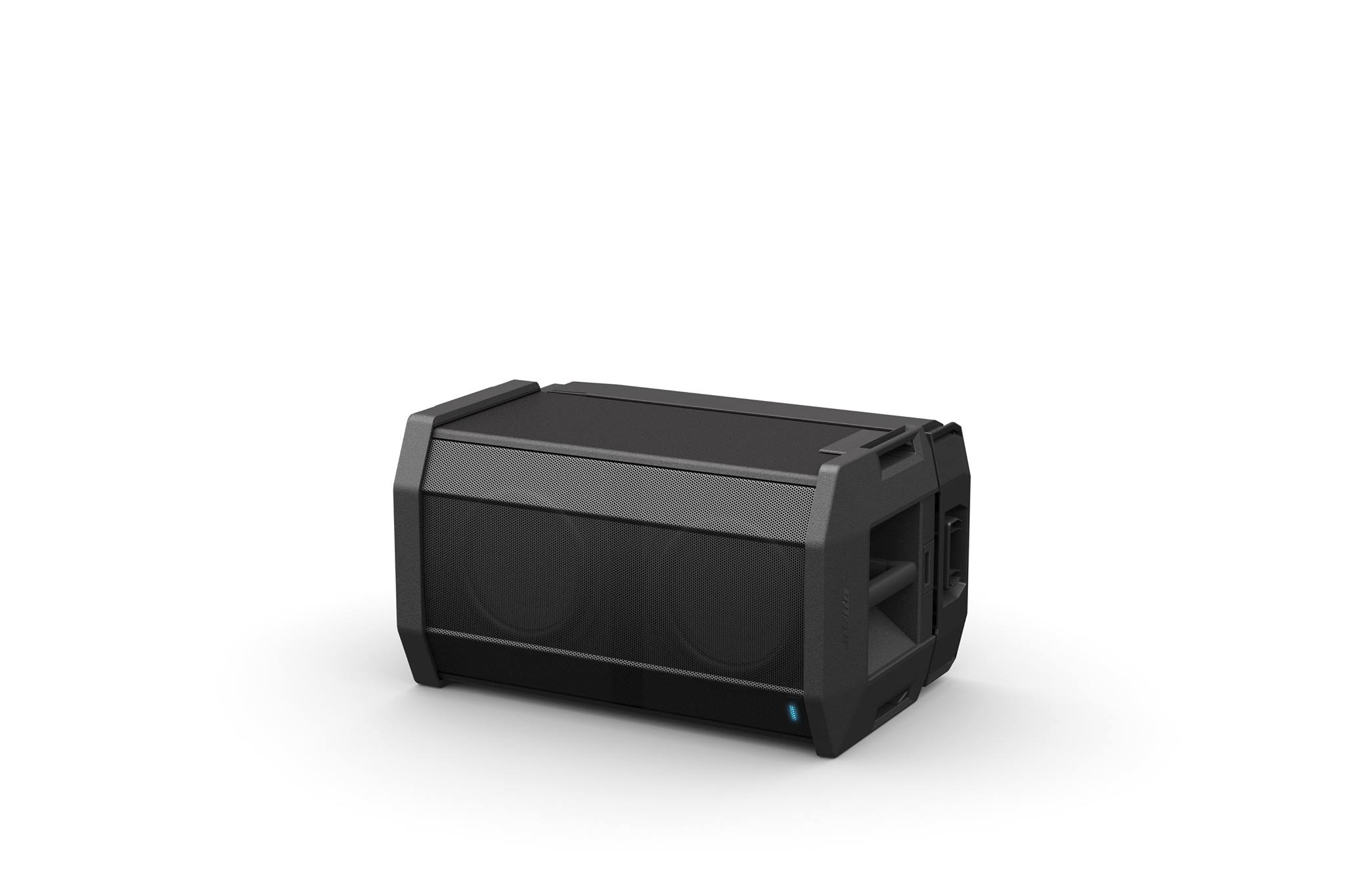

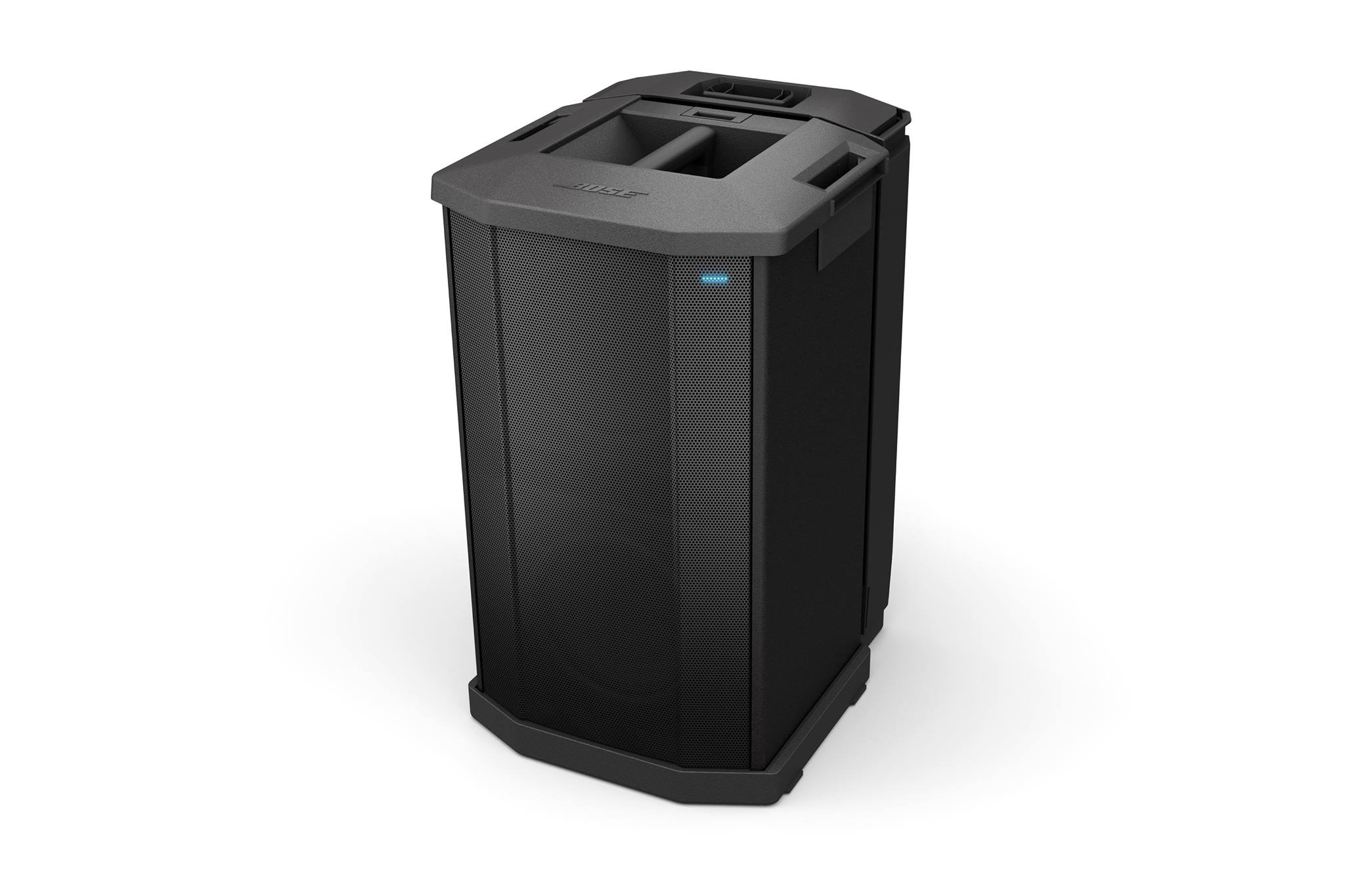

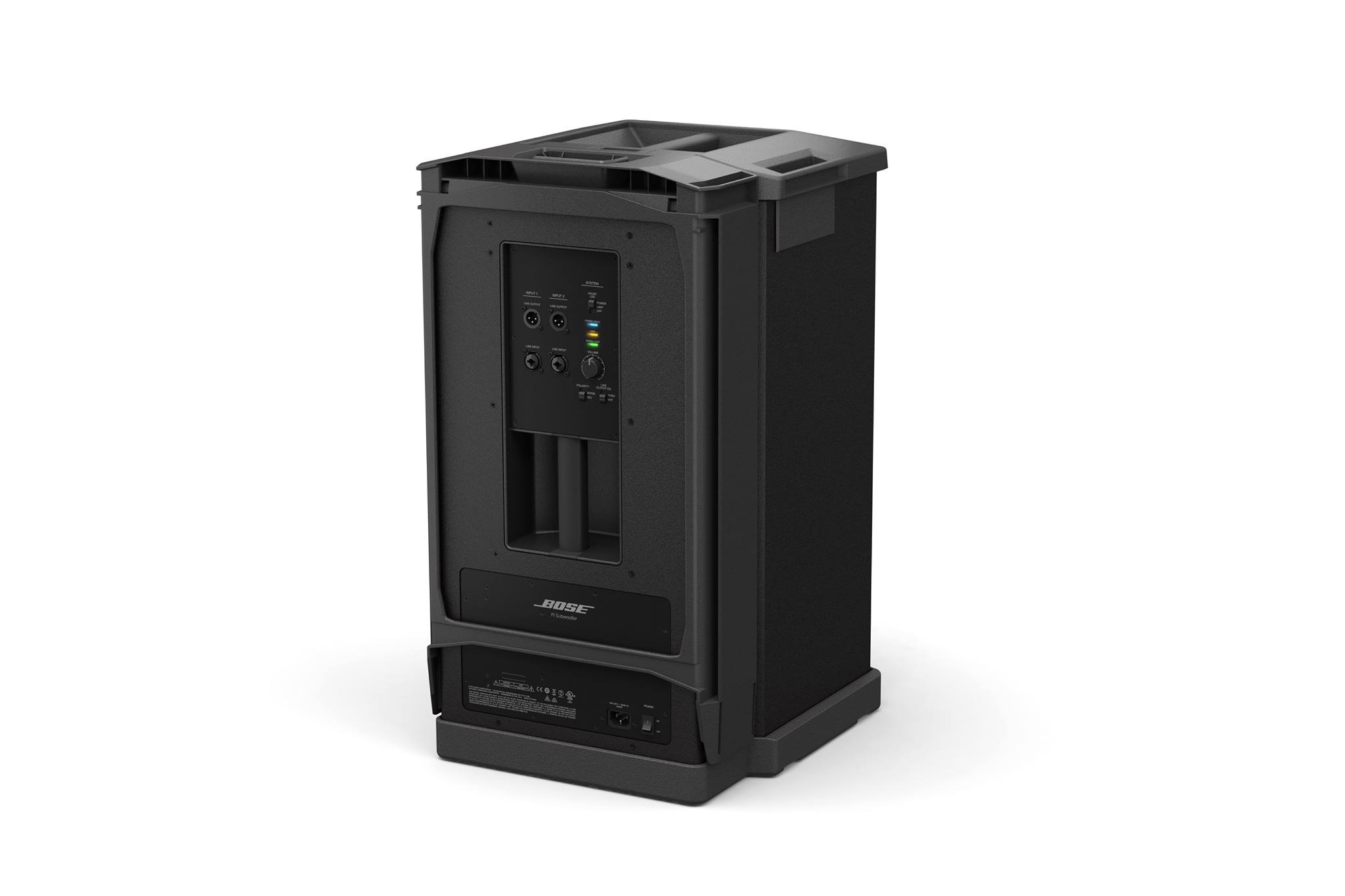

F1 Subwoofer

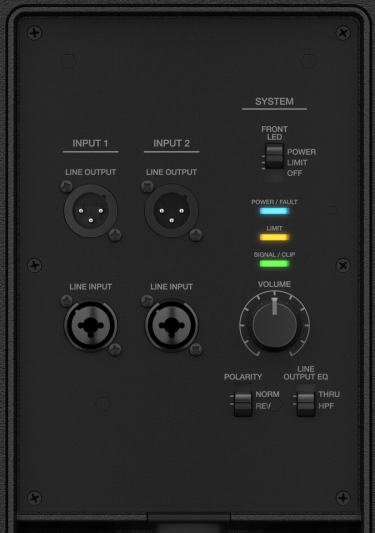

Input Output Panel

F1 Subwoofer IO Panel.png

LINE OUTPUT 1 & 2

Individual outputs that provide balanced line output signals (pre-volume control) that can be sent to powered loudspeakers or additional subwoofers.

Note: When the LINE OUTPUT EQ selector switch is set to THRU, the LINE OUTPUT signal will be full range.

LINE INPUT 1 & 2: Combination XLR – ¼" phone connector inputs that accept line level signals.

The INPUTS 1 & 2 remain distinct at the LINE OUTPUTS 1 & 2. They are not summed.

POLARITY

  • 'NORM' is used when the F1 Model 812 loudspeaker is mounted on the supplied stand.
  • 'REV' may be used to better align the bass when the subwoofer is located further away from the F1 Model 812 loudspeaker.

FRONT LED selector switch

  • 'POWER' enables LED to indicate power status.
  • 'LIMIT' enables LED to indicate limiting.
  • 'OFF' turns off LED.

POWER/FAULT

Indicates power/fault status

  • Blue = power on.
  • Red = fault condition.

LIMIT

Amber = system limiting

SIGNAL / CLIP

Displays the input signal status in color.

  • Green = signal present.
  • Red = signal clipping - input signal too high.

VOLUME

Adjusts subwoofer volume. Middle detent position is 0dB – nominal position when the F1 Model 812 and F1 Subwoofer are connected to a mixing console. Use 0dB position for a line-level signal input.

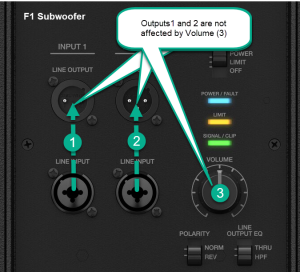

LINE OUTPUT Signal Path

F1 Subwoofer Line Outputs unaffected by volume.png

LINE OUTPUT EQ

  • 'THRU' passes input signal to the output with no filtering. Recommended when using with F1 Model 812.
  • 'HPF' passes input through a high-pass (100 Hz) filter. Affects LINE OUTPUT signals only.
Setting EQ Selector Switches

Recommended settings for the EQ selector switches on the F1 Model 812 Loudspeaker and the F1 Subwoofer are describe in the following table.

System SetupF1 Model 812 EQ SwitchF1 Subwoofer LINE OUTPUT EQ Switch
F1 Model 812 Loudspeaker used without F1 Subwoofer FULL RANGE Not applicable
Signal input to F1 Subwoofer, F1 Subwoofer output to F1 Model 812 Loudspeaker WITH SUB THRU
Signal input to F1 Model 812 Loudspeaker, F1 Model 812 output to F1 Subwoofer FULL RANGE or WITH SUB No effect
F1 Subwoofer IO Panel with Notes

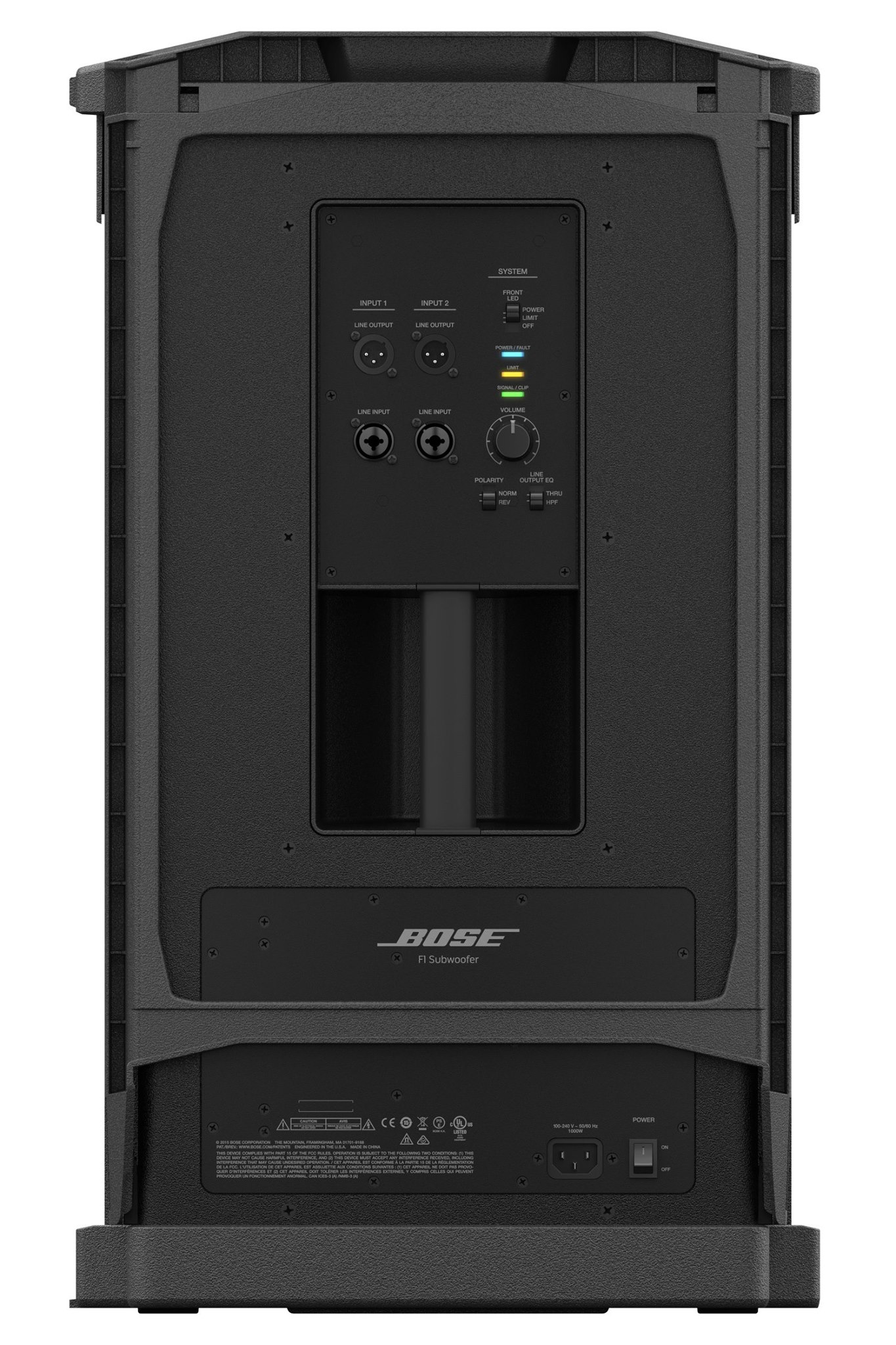

Pictures



Enclosure


F1 Subwoofer: Wood cabinet with high impact composite end caps

Dimensions
F1 Subwoofer: 27" H x 16.1" W x 17.6" D (688 x 410.16 x 448.5mm)
F1 system stack: 73.5" H x 16.1" W x 17.6" D (1868 x 410.16 x 448.5mm)

Net Weight
F1 Subwoofer: 55 lbs (24.9 kg)
F1 system stack: 99.5 lbs (45.7 kg)

Color
Black

Package Contents
1 F1 Subwoofer
1 F1 Subwoofer stand
1 IEC Line Cord
1 Owner’s Guide

F1 Subwoofer FAQ

What is the F1 Model 812 system?

The Bose F1 Model 812 flexible array loudspeaker is the first powered loudspeaker that delivers the benefits of an adjustable array in a portable system package. Its unique flexible baffle allows you to tailor the loudspeaker’s vertical coverage to a wide variety of listening environments. Simply push or pull the array into position to create “Straight,” “C,” “J” or “Reverse J” coverage patterns. Once set, the system automatically updates the EQ to maintain optimum tonal balance for each coverage pattern. So whether you’re playing at floor level, on a stage, or facing raked seats or bleachers, you can adapt your PA to the room.

Engineered with an array of eight high-output drivers, a high-powered 12-inch woofer and a lower crossover point, the loudspeaker delivers full-range, high-SPL performance while maintaining vocal and midrange clarity that’s dramatically better than conventional loudspeakers.

The Bose F1 subwoofer packs all the power of a larger bass box into a more compact design that’s easier to carry and fits in a car. A mounting stand for the loudspeaker is stored right in the body of the subwoofer, making setup fast and easy. The stand even includes cable channels to neatly hide wires.

The loudspeaker and subwoofer combined deliver 2,000 watts of power, so you can fill nearly any room with sound.

And now getting there is easier, too. The loudspeaker and subwoofer feature strategically-placed handles for easy transportation.

How is the F1 Model 812 different from a conventional PA?

Current popular powered loudspeakers are standard two-way designs consisting of a single horn-loaded compression driver for high-frequency reproduction and a single woofer for mid- and low-mid-frequency output.

Since the Bose F1 Model 812 loudspeaker has an array of eight high-output drivers, mid/high-frequency response is much cleaner and less harsh sounding when compared to a traditional horn.

Characteristically, horns have a fixed output pattern that isn’t adaptable to typical performance spaces. These fixed-pattern loudspeakers are commonly positioned on pole mount stands where high-frequency content is projected over listeners’ heads, making vocal intelligibility difficult.

The Bose F1 Model 812 flexible array is quite useful for quickly and easily adjusting the loudspeaker’s coverage for a variety of performance and listening spaces, ensuring quality reproduction without the need for complex placement.

How does the flexible array work?

The eight drivers on the F1 Model 812 flexible array are mounted on a specially designed flexible baffle that is hinged in two locations. When the array position is changed, the loudspeaker’s internal EQ automatically changes according to the array’s position: “Straight,” “C,” “J” or “Reverse J.” This allows the loudspeaker to maintain tonal balance no matter which position is used.

Does the F1 Model 812 have a woofer?

Yes. The high-output 12-inch woofer is mounted behind the flexible array.

Can I use the F1 Model 812 with a standard speaker stand?

Yes, there is a pole cup on the bottom of the enclosure that accepts common tripod speaker stands.

What is the recommended subwoofer?

For best performance, we recommend using the Bose F1 subwoofer. However, other powered subs can be connected to the F1 Model 812 loudspeaker.

What is the F1 subwoofer?

The F1 subwoofer is a compact bass module designed for use with the F1 Model 812 loudspeaker. Its powerful amplifier and dual drivers produce bass as much as subs nearly double its size.

The F1 subwoofer features:

  • 2 X 10" high-excursion drivers
  • 1,000 watts
  • 2 x input channel with XLR, 0.25-inch combo connector
  • 2 x XLR balanced line out
  • Polarity reverse switch
  • HPF enable
How many F1 subwoofers can you connect to an F1 Model 812 loudspeaker?

We recommend one sub per F1 Model 812 loudspeaker. However, you can connect as many as needed.

Can the F1 systems be used with Bose L1® systems?

Yes. Bose L1® systems can be used in conjunction with the F1 Model 812 loudspeaker as a supplemental fill or stage monitor.

Can it be used with the T1 ToneMatch&#9415 audio engine?

Yes. The F1 system is compatible with the ToneMatch audio engine. The T1 engine is a powerful multichannel audio device designed for musicians to use Bose portable pro loudspeaker systems. It includes our largest library of ToneMatch presets, proprietary EQ, a complete suite of studio-class effects and processing, and five channel inputs.

What sources can I plug into the mid/high?

The rear panel of the F1 Model 812 loudspeaker is equipped with XLR/TS combo jacks, a 0.25-inch instrument jack and stereo RCA inputs. When an external mixer is not used, a wide variety of instruments or sources can be connected directly. Common sources include:

  • A dynamic microphone
  • An acoustic instrument with a pickup system
  • Electronic keyboard
  • Electric bass guitar
  • CD or MP3 player
What are the weights and dimensions of the F1 Model 812 system?

F1 Model 812 loudspeaker
44.5 lbs. (20.18 kg)
26.1" H x 13.1" W x 14.6" D (664.66 x 334.3 x 372.5mm)

Shipping Weight: 54.5 lbs (24.72 kg)

F1 subwoofer
55 lbs. (24.9 kg)
27" H x 16.1" W x 17.6" D (688 x 410.16 x 448.5mm)

Shipping Weight: 65 lbs (29.4 kg)

F1 system stack
99.5 lbs (45.7 kg)
73.5" H x 16.1" W x 17.6" D (1868 x 410.16 x 448.5mm)

Does the system ship with carrying bags/covers?

Bags and covers are available as optional accessories.

Are hard shell cases available for the products?

Bose does not offer any hard shell cases.

What is included in the F1 Model 812 box?
  • F1 Model 812 loudspeaker
  • AC power cord
  • F1 Model 812 Owner’s Guide
What accessories are available?
  • Brackets
  • Bags and covers

    • Full-range padded bag with zipper
    • Subwoofer padded bag with zipper
    • Subwoofer slipcover
Can the F1 Model 812 system be used outdoors?

Yes. The system can be used inside or outside. However, it must never be exposed to precipitation or extended periods of direct sunlight. In cases of light rain, take precautions to cover the back panel of the loudspeaker. Water must not get into the air inlet slits inside the back I/O panel, handle recess or front grille.

The system has been tested to operate in temperatures from 0° – 50° C (32° – 122° F), and be stored in temperatures from -30° – 70° C (-22° – 58° F).

Where can the F1 Model 812 system be used?

The F1 Model 812 loudspeaker and F1 subwoofer combination is suitable for bands of all musical styles, DJs and voice-only applications. Due to the versatility of the flexible array, the system also can be used in a wide range of locations.

What kinds of musical performers (singers, bands, DJs, etc.) can use the new technology?

There are no restrictions in this regard. Any single voice, instrument and group size will benefit from the advantages of hearing themselves better, of being in complete control of their performance, of having audiences hear them better and of being able to set up and perform in just minutes.

Can DJs use this system?

Yes. The F1 Model 812 loudspeaker and F1 sub are ideal for DJs that want high power and sonic clarity in a portable system. The F1 subwoofer’s compact design and high capability eliminate the need for transporting subwoofers twice their size. Plus, the integrated stand eliminates ugly tripod bases that expose hanging wires and create tripping hazards.

Can acoustic instruments be amplified with the F1 Model 812 system?

Yes. When an external mixer is not in use, an acoustic instrument equipped with a pickup system may connect directly into the F1 Model 812 system.

Where can I purchase F1 flexible array systems in the United States?

You can purchase F1 flexible array systems directly from Bose through one of the following methods:

  • Call our Sales Solutions Team at 800-444-2673.
  • Purchase on the web at Bose.com. Click on “Shop Online,” then “Speakers” and then “Portable PA.”
  • Visit select Bose Stores that carry the F1 system.

All Bose direct purchases include a 45-day Better Music Guarantee. This means you can test any F1 flexible array system in your own environment and return it for a credit within 45 days of purchase. You are only responsible for the return shipping to Bose.

You can also purchase F1 flexible array systems at Bose authorized resellers, such as:

  • Guitar Center
  • Musician’s Friend
  • Sweetwater
  • American Musical Supply
  • zZounds
  • Specialty dealers
What is the warranty period on the F1 Model 812 system?

The F1 Model 812 and F1 sub both carry a two-year limited warranty on electronics and a five-year warranty on transducers. Both warranties are transferable with the product even if the ownership changes.

What is the 45-day Better Music Guarantee?

At Bose, we recognize that customers may want to experience the F1 flexible array system in their own environment with their specific gear. That is why we allow you to purchase and use the system in your specific application for up to 45 days. If for any reason you are not satisfied, you may return it for a refund. This offer is exclusive to Bose direct sales channels.

Where can I collaborate with Bose staff and existing owners to learn more about how the F1 Model 812 system can work for my specific application?

We host a public forum that allows our helpful user community to share their experiences and collaborate in real time on topics that are important to them. You will find extensive, application-specific documentation and helpful hints. The forum is fully searchable and can be accessed at http://Bose.infopop.cc.

You may also contact our product support team and speak with our knowledgeable staff of musicians. They may be reached at 877-335-2673.

Are the products repairable? What are the replacement costs?

Yes. Certain products are replaceable or repairable to an extent. U.S. customers may call 877-335-2673 or email support@Bose.com for further details. Customers outside of the U.S. should refer to their local Bose website.


F1 Passive FAQ

What are the main differences between active and passive?

The active is a self-powered product with a built-in amplifier. The F1 passive requires outside amplification. The F1 Active and F1 Passive have the same inserts, share the same accessories and brackets and can be used in both portable and installed applications.

Can the F1 Passive be bi-amped?

The F1 Passive cannot be Bi-amped. It has an internal crossover to distribute audio between its mid/high drivers and woofer.

Why does it require Active EQ?

The F1 Passive requires active equalization to achieve the full frequency response and tonal balance. There are four loudspeaker equalization presets available for each of the four array positions. These can be used in both Bose and 3rd Party processors.

Is it compatible with the F1 sub?

The F1 Passive speaker is not compatible with the F1 Sub speaker stand. For installed applications, we recommend using the MB4, MB12 and MB24 sub.

What accessories are available?

F1 Active and Passive share the same accessories, these include the U-Bracket, Yoke Bracket, Pan-and-Tilt brackets and carry bags.

Which subwoofers are compatible with the F1 Passive?

For installed applications, we recommend the MB4, MB12 and MB24.

Can I install this outdoors?

F1 Passive is intended for indoor installations.

Does the system ship with carrying bags/covers?

No. F1 Bags and covers are available as optional accessories.

What are the weights and dimensions of the F1 Model 812 system?

47 lbs (21.32 kg) 26.1" H x 13.1" W x 14.6" D (664.66 x 334.3 x 372.5mm)

What ships in the box?

F1 Model 812 loudspeaker, Installation Guide
