S1 Pro+ Daisy Chain Wireless

S1 Pro+ Daisy Chain Wireless

Connect Two S1 Pro+ using the S1 Pro+ XLR wireless transmitter

To connect on S1 Pro+ to a second S1 Pro+ using the S1 Pro+ XLR Wireless transmitter.

Terms used

S1 Pro+ 1

This is the master S1 Pro+ to which you have connected the sound sources that you want to be heard through both S1 Pro+ systems

S1 Pro+ 2

This is the remote S1 Pro+ to which you send the sound from S1 Pro 1

Set Up

• Turn down the volume on both S1 Pro+ systems

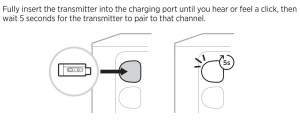

• On S1 Pro+ 2, pair the XLR transmitter to one of the Input channels (1 or 2). For this discussion, we'll assume you have connected to channel 1.


• Connect the XLR Wireless transmitter to S1 Pro+ 1 Line Out (XLR connection)


• On S1 Pro+ 2 channel 1 set the input to LINE input


• On S1 Pro+ 1, bring up the channel volumes to the desired levels
• On S1 Pro+ 2, bring up channel 1 volume to suit your application. Note: This will not necessarily match the same position on the dials as S1 Pro+ 1

---
