S1 Pro+ with Kemper Profiler Player
This is a super convenient feature of the S1 Pro+ when using a Bose Wireless Transmitter.

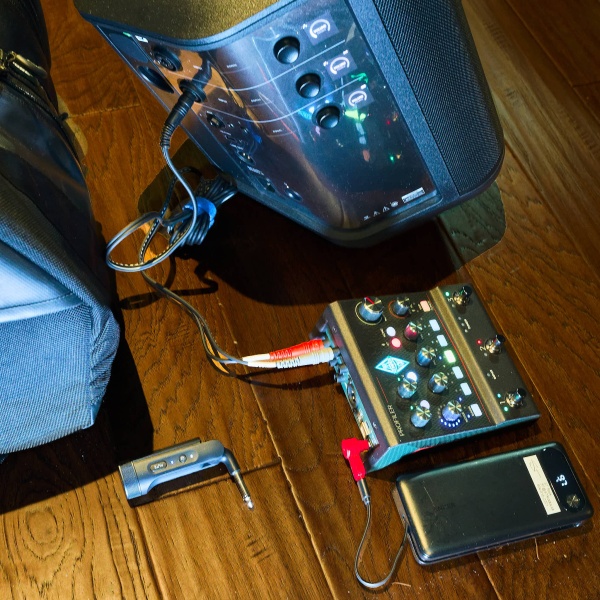

In this setup, the Bose Wireless transmitters are connected to:
- XLR to Sennheiser MD 445 handheld microphone (Channel 1) (not shown)
- 1/4-inch to electric guitar (Channel 2)
Connections to the back of the Kemper Profiler Player.
- Red connects to the Tip-Ring-Sleeve TIP connector and goes to the Kemper Profiler Player INPUT
- Grey connects to the Tip-Ring-Sleeve RING connector and goes to the Kemper Profiler Player OUTPUT
- Note: Your cable may use different colours.
The Tip-Ring-Sleeve to two Tip-Sleeve cable (often called an INSERT cable)
- Notes
- When using an amp modeller pedal, for best performance, use the Bose app to select the Full Range Flat Response (FRFR) ToneMatch preset for that channel.
- The XLR cable (with the red ring on the connector) is connecting the S1 Pro+ LINE OUT to a front-of-house system. This could also have been an L1 system.
- Full function setup with Midi control for the Kemper Profiler Player
Here is my super portable setup with the Kemper Profile Player and Xsonic Airstep MIDI Controllers
Documentation from the S1 Pro+ Owner's Guide
- Notes
- Be sure to set the S1 Pro+ channel INSERT to Auto
- In the example above, we connected the guitar to channel 2; in the documentation below, it is connected to channel 1. The principles are equally applicable.
- Insert Mode Effects Loop
Source: S1 Pro+ Owners Guide
 This article expresses my opinion and experience. Please post comments to Twitter @ST_Muso or LinkedIn @STPro. Thank you — ST. |
