Template:ToneMatch Mixers to F1 Model 812

Gain Staging

For each F1 Model 812 Flexible Array Loudspeaker

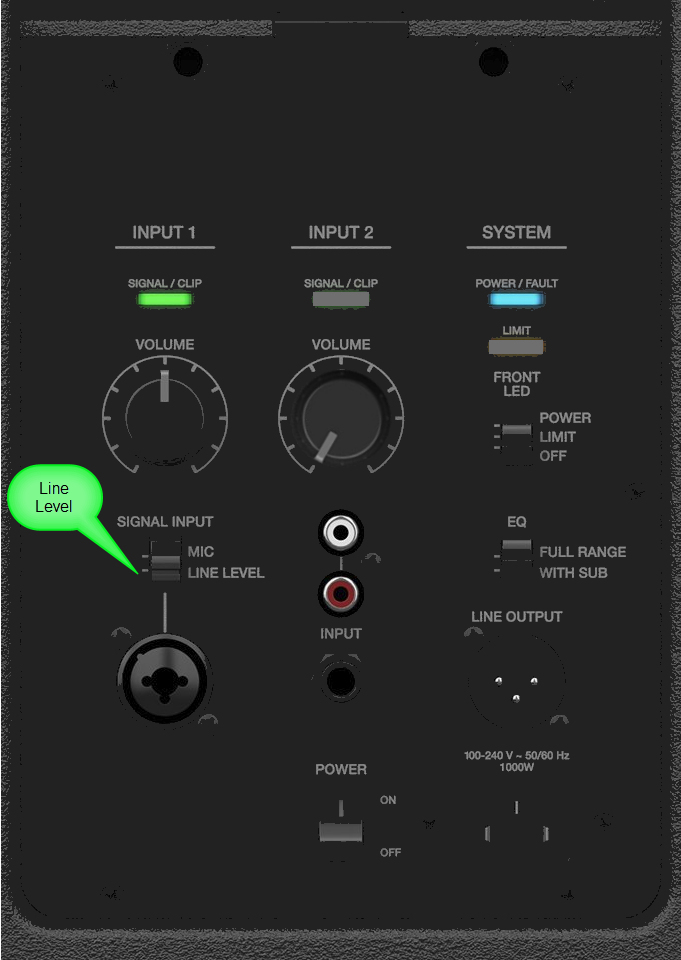

F1 Model 812 Flexible Array Loudspeaker Channel 1 Combo Input

The use an XLR or ¼ inch Tip-Ring-Sleeve jack cable.

MIC / LINE LEVEL

Set this to LINE LEVEL

Volume Control

Use the Input 1 volume control.

1. Set the Input 1 Volume control to the 0 (zero) position.
2. Connect the T8S ToneMatch mixer Main Output to the Input 1
3. Adjust the volume of the T8S ToneMatch mixer Main Output to the maximum output without distortion. This is probably between 10:00 o'clock and 12:00 o'clock on the Master Output
4. While playing music through the T8S ToneMatch mixer, increase the Volume level so that the Signal/Clip indicator glows green with flickers of red. This will probably be around 9:00-11:00 o'clock
5. If the Signal/Clip indicator glows red, decrease the Volume level so that it glows only green or red. If you see red flashes longer than one second, turn down the volume.

---
