Feedback / T1 ToneMatch® Audio Engine

T1

• This technique was described on the Bose^® Pro Portable PA Community in a post by Bill-at-Bose.

• The technique takes some practice and experimentation. But the effort is worth it because the technique can be used in many different situations.

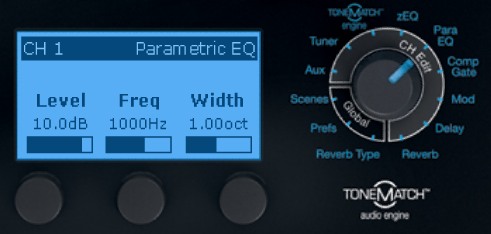

You'll be using the parametric equalizer on the T1 ToneMatch Audio Engine to improve vocal microphone feedback. The parametric equalizer has a frequency adjustment to select the pitch (note) you want to shape, and a boost or cut adjustment to increase or decrease that pitch like a regular tone control. It also has a bandwidth knob, to set how wide a range of pitches around the single pitch you are adjusting.

1. Turn the volume down on the microphone channel
2. Set the Para EQ Level to 10 dB boost (boost, not cut)
3. Set the Para EQ Width to "0.01 oct."
4. Slowly turn up the volume of the microphone creating feedback to just before feedback. You'll probably start to hear the pitch that feeds back but don't let the feedback start.
5. Start changing the Para EQ frequency control. At some point, the system will begin to feedback on the same pitch you were hearing without the boost. With some tuning and listening, you now have the Para EQ frequency set to the exact frequency causing feedback. You may need to ride the volume of the microphone channel to avoid going into loud feedback.
6. Change the ten dB boost to a cut, to notch out the frequency. That microphone should now be able to be used with as much feedback.

If there are multiple microphones in the system you may find that the whole system feeds repeat this procedure if necessary for the other microphones.

Then, once you know the frequency (and the T1 tells you this in Hz, e.g.4082 Hz - very cool), you can apply the same notch to other microphones.

How much does this hurt the sound? Another great question (glad I asked Smile), and you should experiment a little, since - it depends. The notch will have different effects on the tone depending on how deep it is (how much you cut), how wide it is (keep it as narrow as you can), and where it is relative to your voice or instrument. Use your ears to tell you if you've gone too far.

---
