Connect a ToneMatch mixer to a Mackie SRM series loudspeaker

Overview

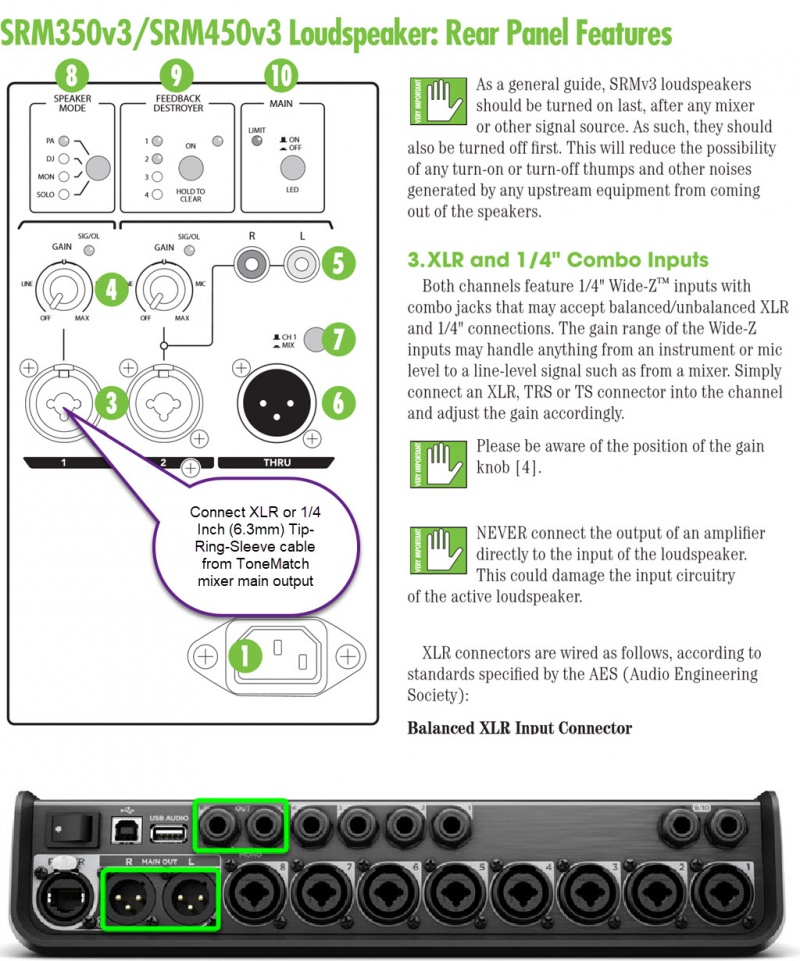

Here is an excerpt from the Mackie SRM 350 Owners Manual.

Mackie SRM 350 input from ToneMatch Mixer.jpg

You can connect using XLR or 1/4 inch (6.3mm) Tip-Ring-Sleeve cables, whichever is most convenient. There is no advantage to using one over the other.

1/4 inch (6.3mm) Tip-Ring-Sleeve cable connections

This applies to both T4S and T8S Tonematch mixers.

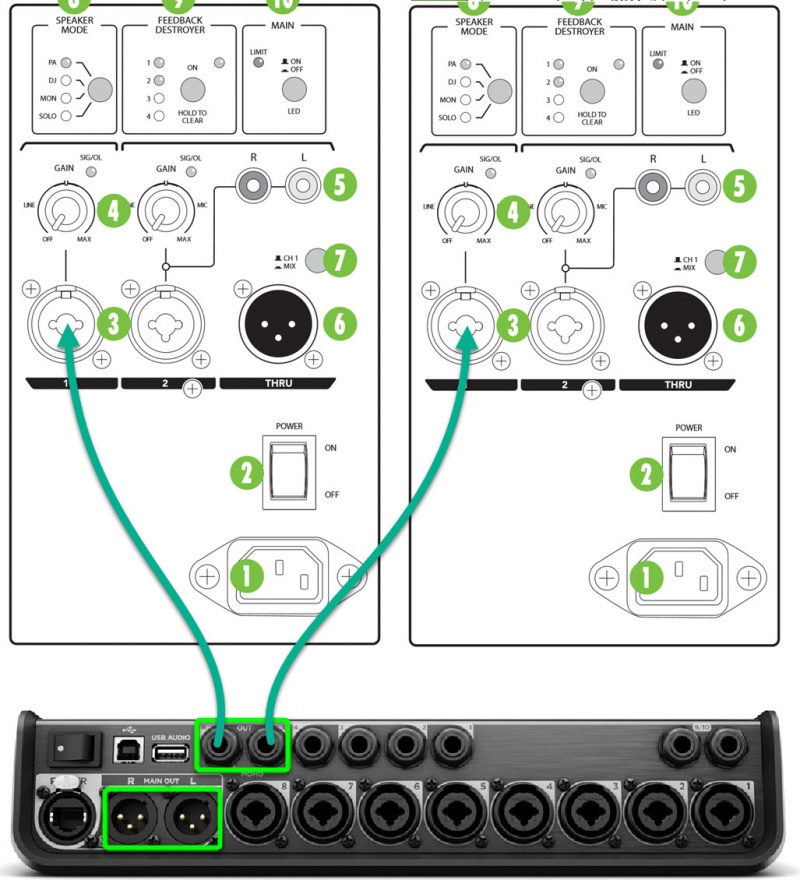

Mackie SRM 350 input from ToneMatch Mixer 14.jpg

The output side is 1/4 inch (6.35 mm) Tip-Ring-Sleeve jack and the input on the Bose side is 1/4 inch (6.35 mm) Tip-Ring-Sleeve jack. Use a cable like this.

1/4" Male TRS to 1/4" Male TRS  Cable.

1/4" TRS Balanced Patch Cable (audiopile.net)


XLR cable connections

This applies to only the T8S Tonematch mixer.

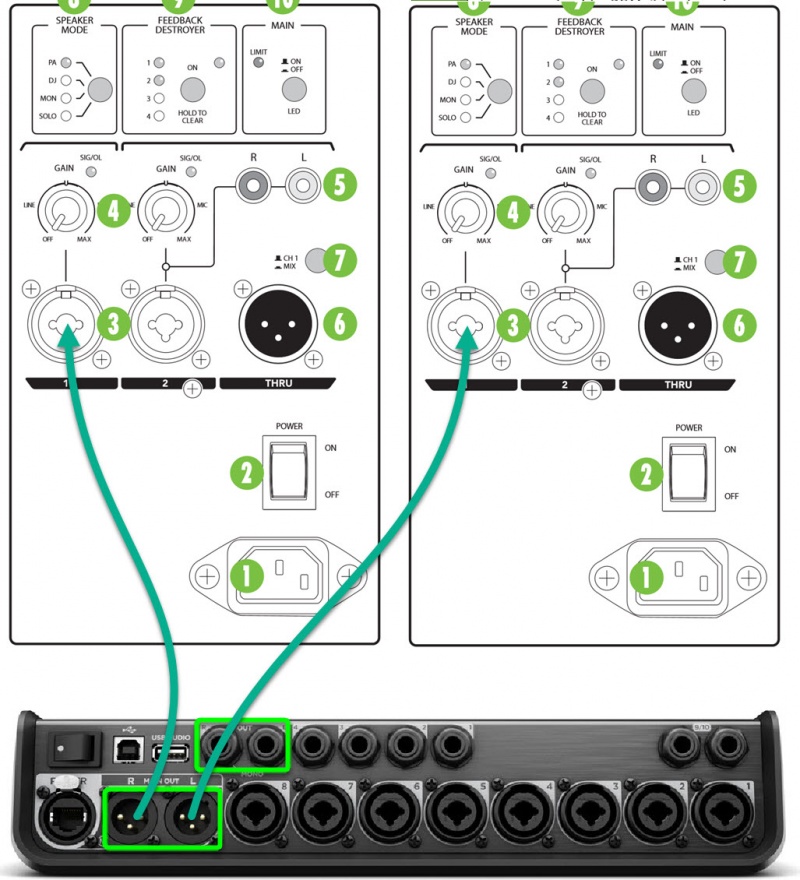

Mackie SRM 350 input from ToneMatch Mixer XLR.jpg

XLR cables provide a balanced connection. These are often used for microphones but they are also fine for line level connections.
