T1 ToneMatch® Audio Engine to Compact

T1 ToneMatch Audio Engine to L1 Compact

Here is an excerpt from page 12 of the L1® Compact Owner's Guide (pdf format)

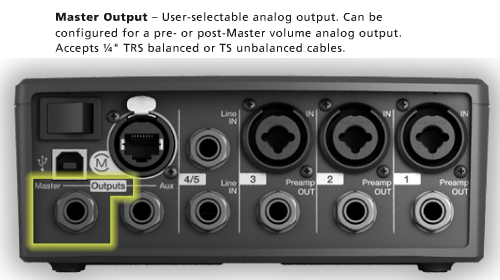

Connect FROM T1 ToneMatch Audio Engine Master or Aux Output using ¼ inch jack connections.

Connect TO the Compact Channel 2 volume straight up (12:00 o'clock to 1:00 o'clock) for good results. You can turn it up higher, but if you see the light on the Compact flickering red, turn down the volume on the Compact.

¼ Inch Tip-Ring-Sleeve (balanced) to ¼ Inch Tip-Ring-Sleeve (balanced)

A balanced connection is preferred and will provide better noise rejection over greater distances than the unbalanced connection.

¼ Inch Tip-Ring-Sleeve (unbalanced) to ¼ Inch Tip-Sleeve (unbalanced)

This should work fine but a balanced connection (immediately above) is preferred especially if you will have cable runs in excess of 20 feet (6 meters) or if you hear line noise, hum or hiss.

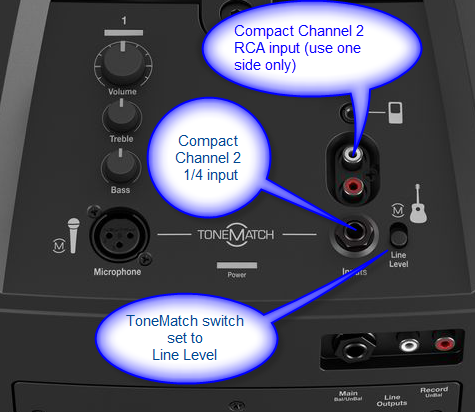

Channel 2 Connection from T1 ToneMatch Audio Engine Details

Connect the T1 ToneMatch Audio Engine Master output L1 Compact channel 2.

Turn the Channel 1 volume all the way down (fully counterclockwise) unless you have a microphone attached to it.

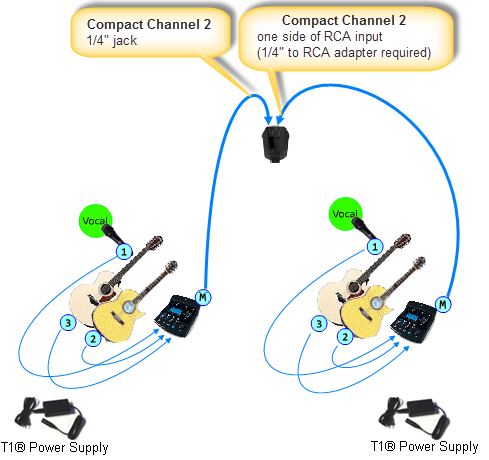

Two T1®s to Separate Inputs on Compact Channel 2

Compact Channel 2 detail

Suggested by Tom the Guitar Guy

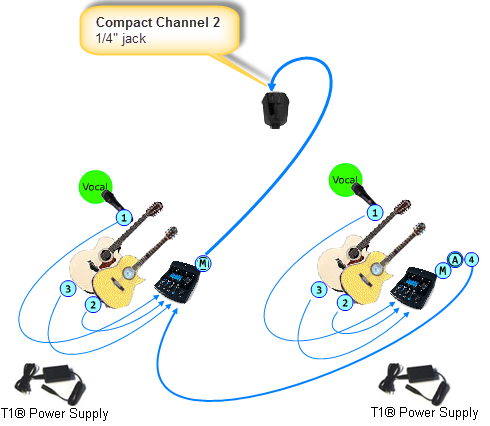

Daisy Chain Two T1®s to Compact Channel 2

Compact Channel 2 detail

---

For more general information see: T1 ToneMatch Audio Engine and L1 Compact

---
