m
m (fixed images)

(19 intermediate revisions by the same user not shown)
Line 7: Line 7:

|Model parameter 2= [[Compact#Channel_2|Compact Channel 2]]

|Model parameter 2= [[Compact#Channel_2|Compact Channel 2]]

|TCH=[http://www.tc-helicon.com/products/voicelive-play-gtx/ VoiceLive Play GTX]

|TCH=[http://www.tc-helicon.com/products/voicelive-play-gtx/ VoiceLive Play GTX]
−
|TCH Image=[[Image:Voicelive-play-gtx_top.jpg|300px|right]]
+
|TCH Image = [[File:Voicelive-play-gtx_top.jpg |link=http://www.tc-helicon.com/products/voicelive-play-gtx| 250px |title=TC-Helicon VoiceLive Play GTX ]]
−
|TCH Image = {{#img: image=Voicelive-play-gtx_top.jpg |page=http://www.tc-helicon.com/products/voicelive-play-gtx| height=250px |title=TC-Helicon VoiceLive Play GTX }}
+
|TCH Additional Note =  so I don't have to touch the {{{L1}}} once I'm set up.

}}

}}

</pre>

</pre>
Line 15: Line 15:

{{Compact icon}}{{Model 1S icon}}{{Model II icon}}

{{Compact icon}}{{Model 1S icon}}{{Model II icon}}

-->

-->
−
<html><div style="float:right; padding-top:60px"></html>{{{TCH Image|{{#img: image=Voicelive-play-gtx_top.jpg |page=http://www.tc-helicon.com/products/voicelive-play-gtx| height=250px |title=TC-Helicon VoiceLive Play GTX }}}}}<html></div></html>
+
<html><div style="float:right; padding-top:60px"></html>{{{TCH Image|[[File:Voicelive-play-gtx_top.jpg |link=http://www.tc-helicon.com/products/voicelive-play-gtx| 250px |title=TC-Helicon VoiceLive Play GTX ]]}}}<html></div></html>
−
=== [[Compact]] ===
+
<noinclude>=== [[Compact]] ===</noinclude>

The {{{TCH}}} has two outputs available (Vocal and Guitar) but I choose the LEFT output and run MONO so that I can make the connection with one cable. I don't use {{{Model parameter 1|Compact Channel 1}}} when I'm using the {{{TCH}}}.

The {{{TCH}}} has two outputs available (Vocal and Guitar) but I choose the LEFT output and run MONO so that I can make the connection with one cable. I don't use {{{Model parameter 1|Compact Channel 1}}} when I'm using the {{{TCH}}}.


I prefer to use an adapter (XLR to &frac14; inch jack) from the {{{TCH}}}  left out - to {{{Model parameter 2|Compact Channel 2}}}.  That way you don't have to work around the {{{L1}}}'s internal microphone Preset.

I prefer to use an adapter (XLR to &frac14; inch jack) from the {{{TCH}}}  left out - to {{{Model parameter 2|Compact Channel 2}}}.  That way you don't have to work around the {{{L1}}}'s internal microphone Preset.

−
[[Image:Compact Channel 2 Balanced.png]]
+
[[File:Compact_Channel_2_Line_Level.png |link=Compact#Channel_2| 400px |Compact Channel 2]]

−
There's MIX button on the {{{TCH}}} that brings up a screen where it's easy to control the relative volumes (voice and guitar) on the {{{TCH}}} so I don't have to touch the Compact once I'm set up. And it's nice to use just one cable from the {{{TCH}}} to the {{{L1}}}.  This also keeps the {{{Model parameter 1|Compact Channel 1}}} free in case I need to plug in another microphone.
+
There's MIX button on the {{{TCH}}} that brings up a screen where it's easy to control the relative volumes. Vocal volume is set. You can raise and lower the other inputs on the {{{TCH}}}. {{{TCH Additional Note}}}. And it's nice to use just one cable from the {{{TCH}}} to the {{{L1}}}.  This also keeps the {{{Model parameter 1|Compact Channel 1}}} free in case I need to plug in another microphone.


I use an adapter like this

I use an adapter like this
 +
<!--
 +
* [http://www.musiciansfriend.com/accessories/planet-waves-xlr-female-to-1-4-female-adapter xlr female to 1/4 female adapter][[Image:XLRTo14female.png|right]]

−
* [http://www.musiciansfriend.com/accessories/planet-waves-xlr-female-to-1-4-female-adapter xlr female to 1/4 female adapter][[Image:XLRTo14female.png|right]]


* [http://www.audiopile.net/products/Adaptors_Connectors/NEUTRIK/NA3FJ/NA3FJ_cutsheet.shtml NA3FJ Neutrik 3 Pin XLR Female to 1/4" TRS Female Locking Barrel Adapter] [[Image:NeutrikNA3FJ.jpg|right]]

* [http://www.audiopile.net/products/Adaptors_Connectors/NEUTRIK/NA3FJ/NA3FJ_cutsheet.shtml NA3FJ Neutrik 3 Pin XLR Female to 1/4" TRS Female Locking Barrel Adapter] [[Image:NeutrikNA3FJ.jpg|right]]
 +
-->
 +
<table><tr><td>Neutrik NA3FJ XLR to &frac14; inch jack Tip-Ring-Sleeve female</td><td> or </td><td>Planet Waves XLR female to &frac14; inch jack Tip-Ring-Sleeve female</td></tr>
 +
<tr><td>
 +
[[File:NeutrikNA3FJ.jpg |link=http://www.audiopile.net/products/Adaptors_Connectors/NEUTRIK/NA3FJ/NA3FJ_cutsheet.shtml| 300px |NA3FJ Neutrik 3 Pin XLR Female to 1/4" TRS Female Locking Barrel Adapter]]
 +
</td><td>&nbsp;</td><td>
 +
[[File:XLRTo14female.png |link=http://www.musiciansfriend.com/accessories/planet-waves-xlr-female-to-1-4-female-adapter| 300px |xlr female to 1/4 female adapter]]
 +
</td></tr>
 +
</table>
 +
 +
 +
WITH
 +
 +
<table><tr><td>Balanced &frac14; inch jack Tip-Ring-Sleeve cable</td><td> or </td><td>Unbalanced &frac14; inch jack Tip-Sleeve cable</td></tr>
 +
<tr><td>
 +
[[File:TRStoTRS.jpg |link=http://www.audiopile.net/products/Mic_Instr_Cables/IP-101/IP-101_cutsheet.shtml| 300px |&frac14; inch jack Tip-Ring-Sleeve ]]
 +
</td><td>&nbsp;</td><td>
 +
 +
[[File:TSUnbalanced.jpg  |link=http://www.audiopile.net/products/Mic_Instr_Cables/GBNC/GBNC_SOON_cutsheet.shtml| 300px |&frac14; inch jack Tip-Sleeve ]]
 +
</td></tr>
 +
</table>
 +
 +
 +
OR a longer version of a cable like this:
 +
 +
 +
[[Image:XLR to TRS mp106.jpg]]
 +
 +
[http://www.audiopile.net/MP-105 Source: Audiopile.net]
 +
 +
Technical Description:
 +
 +
The EWI MP-105 is a special application adaptor cable for converting XLR to 1/4 TRS.  This cable is typically used to plug XLR cord into balanced 1/4" TRS panel jacks commonly found on mixing consoles and processing equipment.
 +
 +
The Female XLR end is wired through to the 1/4" Male TRS end as follows:
 +
 +
*    Pin One FXLR to Sleeve of MTRS
 +
*    Pin Two FXLR to Tip of MTRS
 +
*    Pin Three FXLR to Ring of MTRS
 +
 +
The 1/4" MTRS end is an EWI model P292S-BKG
 +
 +
The FXLR end is an EWI model ES3FB-GDP
 +
 +
The cable itself is constructed with 99.98% pure 22ga. high strand count copper conductors.


−
using a &frac14; inch jack Tip-Ring-Sleeve cable



TO

TO
Line 37: Line 81:

{{{Model parameter 2}}}

{{{Model parameter 2}}}

 +
<!--

[[Image:Compact_Channel_2_Line_Level.png]]

[[Image:Compact_Channel_2_Line_Level.png]]
 +
-->

Latest revision as of 22:02, 28 March 2017

Usage:

{{TC-Helicon to L1®
|L1=[[Compact]]
|Model parameter 1= [[Compact#Channel_1|Compact Channel 1]]
|Model parameter 2= [[Compact#Channel_2|Compact Channel 2]]
|TCH=[http://www.tc-helicon.com/products/voicelive-play-gtx/ VoiceLive Play GTX]
|TCH Image = [[File:Voicelive-play-gtx_top.jpg |link=http://www.tc-helicon.com/products/voicelive-play-gtx| 250px |title=TC-Helicon VoiceLive Play GTX ]]
|TCH Additional Note =  so I don't have to touch the {{{L1}}} once I'm set up.
}}

title=TC-Helicon VoiceLive Play GTX

Compact

The {{{TCH}}} has two outputs available (Vocal and Guitar) but I choose the LEFT output and run MONO so that I can make the connection with one cable. I don't use Compact Channel 1 when I'm using the {{{TCH}}}.

I prefer to use an adapter (XLR to ¼ inch jack) from the {{{TCH}}} left out - to Compact Channel 2. That way you don't have to work around the {{{L1}}}'s internal microphone Preset.

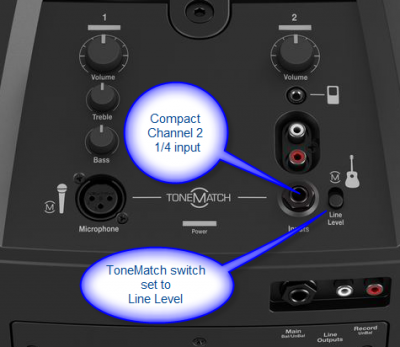

Compact Channel 2

There's MIX button on the {{{TCH}}} that brings up a screen where it's easy to control the relative volumes. Vocal volume is set. You can raise and lower the other inputs on the {{{TCH}}}. {{{TCH Additional Note}}}. And it's nice to use just one cable from the {{{TCH}}} to the {{{L1}}}. This also keeps the Compact Channel 1 free in case I need to plug in another microphone.

I use an adapter like this

Neutrik NA3FJ XLR to ¼ inch jack Tip-Ring-Sleeve female or Planet Waves XLR female to ¼ inch jack Tip-Ring-Sleeve female

NA3FJ Neutrik 3 Pin XLR Female to 1/4" TRS Female Locking Barrel Adapter



xlr female to 1/4 female adapter


WITH

Balanced ¼ inch jack Tip-Ring-Sleeve cable or Unbalanced ¼ inch jack Tip-Sleeve cable

¼ inch jack Tip-Ring-Sleeve



¼ inch jack Tip-Sleeve


OR a longer version of a cable like this:


XLR to TRS mp106.jpg

Source: Audiopile.net

Technical Description:

The EWI MP-105 is a special application adaptor cable for converting XLR to 1/4 TRS. This cable is typically used to plug XLR cord into balanced 1/4" TRS panel jacks commonly found on mixing consoles and processing equipment.

The Female XLR end is wired through to the 1/4" Male TRS end as follows:

  • Pin One FXLR to Sleeve of MTRS
  • Pin Two FXLR to Tip of MTRS
  • Pin Three FXLR to Ring of MTRS

The 1/4" MTRS end is an EWI model P292S-BKG

The FXLR end is an EWI model ES3FB-GDP

The cable itself is constructed with 99.98% pure 22ga. high strand count copper conductors.


TO

{{{Model parameter 2}}}
