To connect a stereo source to a T1 ToneMatch Audio Engine see: Backing Tracks
Warning about Cables
If you use a cable like this to connect a stereo source to the T1 ToneMatch Audio Engine
- In Channels 1,2,3 you will hear only one side of the stereo source
- In Channels 4 or 5 the left and right channels from the source will tend to cancel each other out and you will get little or no output.
Corrections to the T1® Owners Guide pages 38 and 40
From the original diagrams it looks like this kind of cable may work.
- Correction - use a cable like this
[[Image:18TRSto2x14TS.png]

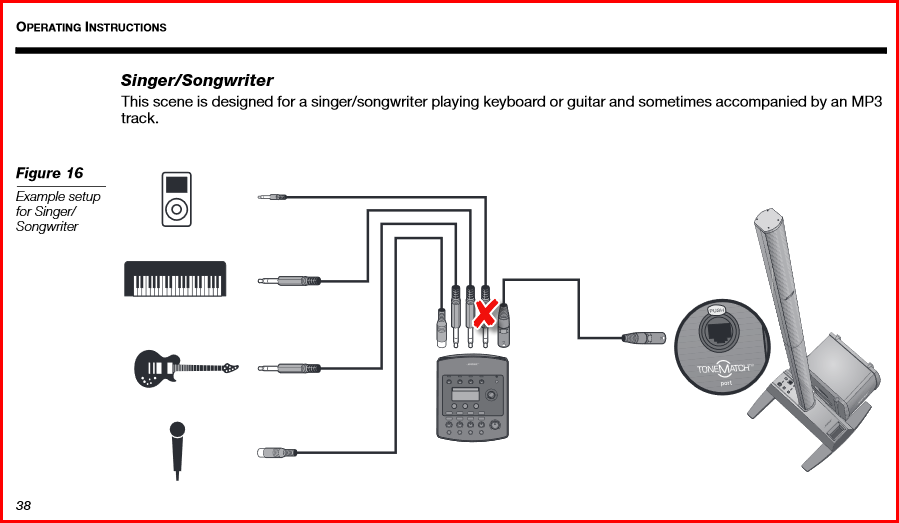

Original page (red x indicates error)
- Correction - use a cable like this
[[Image:18TRSto2x14TS.png]
Original page (red x indicates error)
- Correction - use a cable like this
[[Image:18TRSto2x14TS.png]
