T4S ToneMatch Mixer Monitor Outputs

T4S

L1 Model II

How do I set up a powered monitor with my T4S ToneMatch mixer and L1 Model II or L1 Model 1S

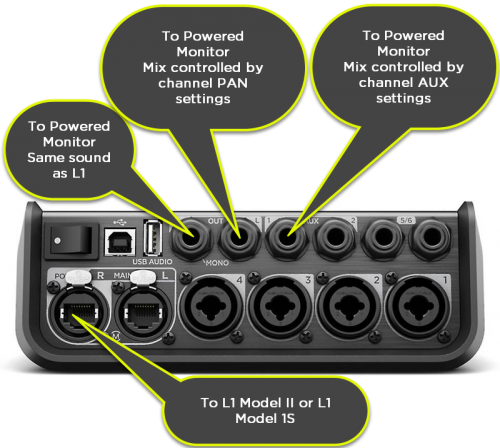

You have several options for creating a monitor mix.

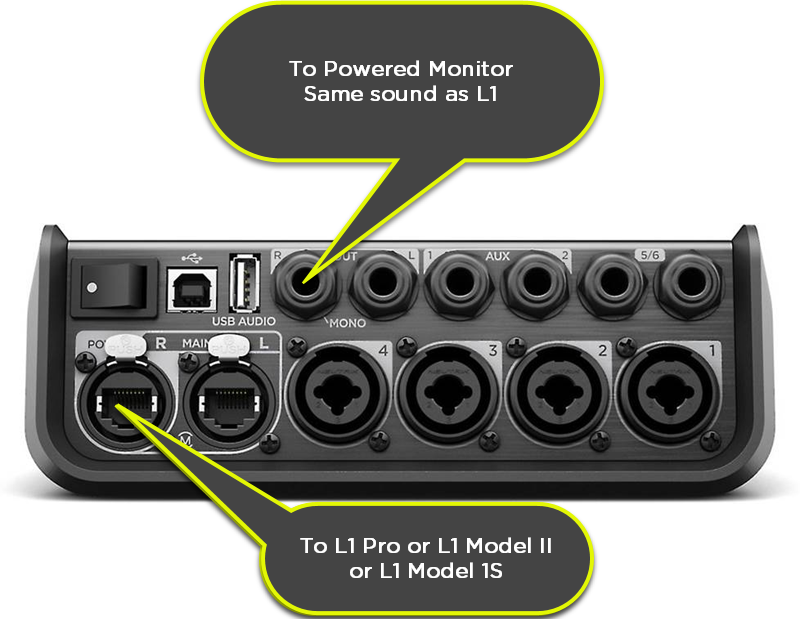

1. The same sound as you are sending to the L1 system
   • If you have connected the L1 to ToneMatch Port
     connect your monitor to the Main Right Output

2. Use the channel pan controls to set up a monitor mix.

   • Panned center will give you the same sound as you are sending to the L1
   • Panned Hard Left will give you all of the sound in the monitor mix and not the L1
   • Panned Slightly Left will give more of the sound in the monitor mix and than the L1
3. Use the channel Aux settings to set up a monitor mix.


---
