Bose L1 Pro16 Compared to L1 Pro32

Feature	Bose L1 Pro16	Bose L1 Pro32
Feature	Bose L1 Pro16	Bose L1 Pro32

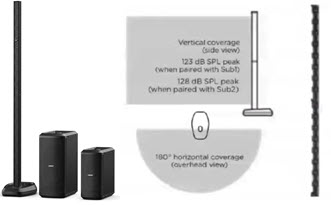

Horizontal dispersion	180 degrees	180 degrees
Vertical dispersion	0/-30 degrees (J-shape)	0 degrees (straight shape)
Output	118 dB / 124 dB peak	With Sub1: 117 dB / 123 dB peak With Sub2: 122 dB / 128 dB peak
Audience	not specified	not specified
Speaker Array	Sixteen 2.00" (51 mm) articulated cricket drivers	Thirty two 2.00" (51 mm) articulated cricket drivers
Woofer	One 10"x 18" neodymium racetrack transducer in the power stand	Sub1:One 7" x 13" neodymium racetrack transducer Sub2:One 10"x 18" neodymium racetrack transducer
Low Frequency	42 Hz - 3dB	With Sub1: 40 Hz - 3dB With Sub2: 37 Hz - 3dB
Crossover	200 Hz	200 Hz
Power to speakers	Biamped  250 Watts RMS mid-high array 1000 Watts RMS to sub 1250 Watts RMS total	Biamped Power Stand 480 Watts RMS mid-high array Sub1 480 Watts RMS (960 Watts RMS total) Sub2 1000 Watts RMS (1480 Watts RMS total)
Weight	Total system weight 18 kg (54.9 lb) Power Stand: 18.8 kg (41.4 lb) Mid-High array and extension: 6.1 kg (13.5 lb)	Total system weight with Sub1 29.1 kg (64.1 lb) Sub2 36.4 kg (80.3 lb) Power Stand: 5.9 kg (13.0 lb) Mid-High arrays (2) 7.1 kg (15.6 lb) Sub1 16.1 kg (35.5 lb) Sub2 23.4 kg (51.7 lb)
Dimensions (H x W x D)	201.2 x 35.5 x 45.6 cm (79.2 x 14.0 x 18.0 in)	L1 Pro32 213.5 × 34.5 × 55 cm (84.1 × 13.6 × 21.7 in) Sub1 53.0 × 25.0 × 53.0 cm (20.9 × 9.8 × 20.9 in) Sub2 69.0 × 30.5 × 55.0 cm (27.2 × 12.0 × 21.7 in) Footprint (floor space required) L1 Pro32 with Sub1 (W x D) 59.4 x 55.1 cm (23.4 x 21.7 in) L1 Pro32 with Sub2 (W x D) 65.0 x 55.1 cm (25.6 x 21.7 in)
Everything below this bar is the same for both
ToneMatch® Presets	Channels 1 and 2 Full suite of ToneMatch Presets available in the ToneMatch mixers, built-in. Set using the L1 Mix App.	Channels 1 and 2 Full suite of ToneMatch Presets available in the ToneMatch mixers, built-in. Set using the L1 Mix App.
Battery	No	No
Connections	Channels 1 and 2 Combo Jacks XLR / 6 mm (1/4" Tip-Ring or Tip-Ring-Sleeve) balanced / unbalanced Channel 3/Aux Input 6 mm (1/4" Tip-Ring or Tip-Ring-Sleeve) balanced / unbalanced 3 mm (1/8" Tip-Ring-Sleeve) accepts stereo or mono input Bluetooth input	Channels 1 and 2 Combo Jacks XLR / 6 mm (1/4" Tip-Ring or Tip-Ring-Sleeve) balanced / unbalanced Channel 3/Aux Input 6 mm (1/4" Tip-Ring or Tip-Ring-Sleeve) balanced / unbalanced 3 mm (1/8" Tip-Ring-Sleeve) accepts stereo or mono input Bluetooth input
Tone Controls	Channels 1 and 2 * Bass / Treble Channel 3 * None	Channel 1 * Bass / Treble Channel 2 * None
Line Out	XLR balanced	XLR balanced
Bluetooth input	Yes: Channel 3 Supports Bluetooth 5.x	Yes: Channel 3 Supports Bluetooth 5.x
Reverb	Channels 1 and 2 Yes Channel 3 None	Channels 1 and 2 Yes Channel 3 None
ToneMatch Port	Yes full support for T4S/T8S power only for T1	Yes full support for T4S/T8S power only for T1
System EQ	Yes Live/Music/Speech/Off	Yes Live/Music/Speech/Off
Scenes	Yes Store/recall system settings via Bose L1 Mix App	Yes Store/recall system settings via Bose L1 Mix App
Bose L1 Mix App	Yes Wireless control over volume, tone, reverb and system EQ	Yes Wireless control over volume, tone, reverb and system EQ

---
