Bose L1 Pro16 Compared to L1 Pro32

From Bose Portable PA Encyclopedia
Revision as of 18:45, 23 April 2021 by ST (talk | contribs)
Jump to: navigation, search

Share

Questions and comments or LinkedIn @STPro.Thank you — ST.
Feature Bose L1 Pro16 Bose L1 Pro32

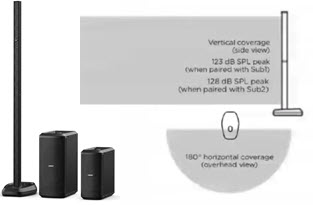

  L1 Pro16 w Coverage 221x200.jpg L1 Pro32 with subs w Coverage 305x205.jpg
Feature Bose L1 Pro16 Bose L1 Pro32
Horizontal dispersion 180 degrees 180 degrees
Vertical dispersion 0/-30 degrees (J-shape) 0 degrees (straight shape)
Output 118 dB / 124 dB peak  With Sub1: 117 dB / 123 dB peak
With Sub2: 122 dB / 128 dB peak
Audience not specified not specified
Speaker Array Sixteen 2.00" (51 mm) articulated cricket drivers Thirty two 2.00" (51 mm) articulated cricket drivers
Woofer One 10"x 18" neodymium racetrack transducer in the power stand Sub1:One 7" x 13" neodymium racetrack transducer
Sub2:One 10"x 18" neodymium racetrack transducer
Low Frequency 42 Hz - 3dB With Sub1: 40 Hz - 3dB
With Sub2: 37 Hz - 3dB
Crossover 200 Hz 200 Hz
Power to speakers Biamped
  •  250 Watts RMS mid-high array
  • 1000 Watts RMS to sub
  • 1250 Watts RMS total
 Biamped
  • Power Stand 480 Watts RMS mid-high array
  • Sub1 480 Watts RMS (960 Watts RMS total)
  • Sub2 1000 Watts RMS (1480 Watts RMS total)
Weight Total system weight 18 kg (54.9 lb)
  • Power Stand: 18.8 kg (41.4 lb)
  • Mid-High array and extension: 6.1 kg (13.5 lb)
Total system weight with
Sub1 29.1 kg (64.1 lb)
Sub2 36.4 kg (80.3 lb)
  • Power Stand: 5.9 kg (13.0 lb)
  • Mid-High arrays (2) 7.1 kg (15.6 lb)
  • Sub1 16.1 kg (35.5 lb)
  • Sub2 23.4 kg (51.7 lb)
Dimensions (H x W x D) 201.2 x 35.5 x 45.6 cm
(79.2 x 14.0 x 18.0 in)		 L1 Pro32
213.5 × 34.5 × 55 cm (84.1 × 13.6 × 21.7 in)
Sub1 53.0 × 25.0 × 53.0 cm (20.9 × 9.8 × 20.9 in) Sub2 69.0 × 30.5 × 55.0 cm (27.2 × 12.0 × 21.7 in)
Footprint (floor space required)
L1 Pro32 with Sub1 (W x D) 59.4 x 55.1 cm (23.4 x 21.7 in)
L1 Pro32 with Sub2 (W x D) 65.0 x 55.1 cm (25.6 x 21.7 in)
Sound Projection L1 Pro Throw over Distance.jpg
Everything below this bar is the same for both
ToneMatch® Presets Channels 1 and 2
Full suite of ToneMatch Presets available in the ToneMatch mixers, built-in. Set using the L1 Mix App. 		Channels 1 and 2
Full suite of ToneMatch Presets available in the ToneMatch mixers, built-in. Set using the L1 Mix App.
Battery No No
Connections Channels 1 and 2
Combo Jacks
XLR / 6 mm (1/4" Tip-Ring or Tip-Ring-Sleeve) balanced / unbalanced
Channel 3/Aux Input
  • 6 mm (1/4" Tip-Ring or Tip-Ring-Sleeve) balanced / unbalanced
  • 3 mm (1/8" Tip-Ring-Sleeve) accepts stereo or mono input
  • Bluetooth input
 Channels 1 and 2
Combo Jacks
XLR / 6 mm (1/4" Tip-Ring or Tip-Ring-Sleeve) balanced / unbalanced
Channel 3/Aux Input
  • 6 mm (1/4" Tip-Ring or Tip-Ring-Sleeve) balanced / unbalanced
  • 3 mm (1/8" Tip-Ring-Sleeve) accepts stereo or mono input
  • Bluetooth input
Tone Controls Channels 1 and 2 * Bass / Treble Channel 3 * None Channel 1 * Bass / Treble Channel 2 * None
Line Out XLR balanced XLR balanced
Bluetooth input Yes: Channel 3
Supports Bluetooth 5.x 		Yes: Channel 3
Supports Bluetooth 5.x
Reverb Channels 1 and 2 Yes
Channel 3 None 		Channels 1 and 2 Yes
Channel 3 None
ToneMatch Port Yes full support for T4S/T8S
power only for T1 		Yes full support for T4S/T8S
power only for T1
System EQ Yes
Live/Music/Speech/Off 		Yes
Live/Music/Speech/Off
Scenes Yes
Store/recall system settings via Bose L1 Mix App 		Yes
Store/recall system settings via Bose L1 Mix App
Bose L1 Mix App Yes
Wireless control over volume, tone, reverb and system EQ 		Yes
Wireless control over volume, tone, reverb and system EQ
