Effects PS1 Powerstand TRS Connections

From Bose Portable PA Encyclopedia
Revision as of 12:45, 26 December 2006 by ST (talk | contribs)
Jump to: navigation, search

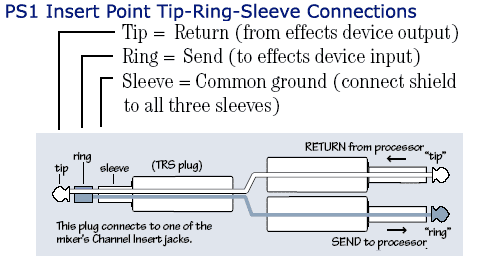

A common problem is with the way some Insert Cables are labelled. This is how the connections are run at the Insert Point of the PS1 Powerstand. TipRingSleevePS1.gif

and this is connected to one of the PS1 Powerstand Insert Points
