Connections / DJ VJ Computer to Model I

Here are several ways to connect your L1 Classic or L1 Model I

• DJ console or mixer or mixing desk
• VJ console or mixer or mixing desk
• Computer or mixer or mixing desk

For the following discussion we will call your console or computer your "Device".

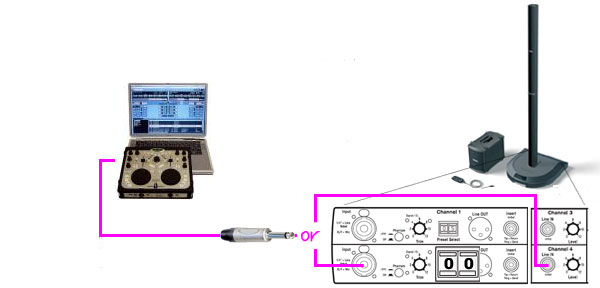

Mono Output from Device to Mono L1™

You can use a single B1 or two B1s depending on how much low end support you need for your application.

Stereo Output from Device to Mono L1™=

You can use a single B1 or two B1s depending on how much low end support you need for your application. In this example we are showing two B1s. This is more common for modern backing tracks with plenty of bass, and for most venues.

Stereo Output to Stereo L1&trades;

Two L1™s will provide an excellent stereo image over a very wide "sweet spot".

---
