Activating B1 EQ Curves when using third party loudspeakers for Bass

Note: This is an unsupported application.

This article describes how you can trigger the EQ Curves for one or two B1 Bass Modules, when you are not using B1 Bass Modules, but instead have connected a third party loudspeaker to the Bass Amp Out on a Classic, Model I or Model II Power Stand.


This article is adapted from a post from Hilmar-at-Bose [1]

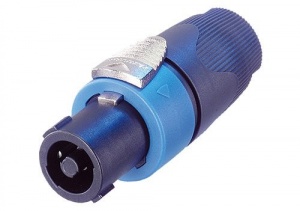

To get the B1 EQ activated at the B1 connection modify a Speakon cable so that there is a 5k or 10k resistor between the 2+ and 2- pins of an NL4 plug.

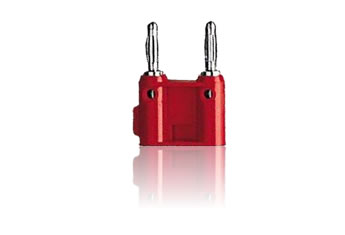

The easiest way to do that is to run normal speaker wire or lamp cord from 2+ and 2- to a banana plug like this

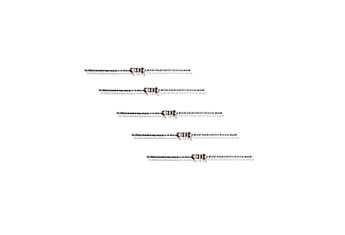

You can then take make up two more banana plugs with a 10k resistor like this


across the pins. By simply cascading none, one, or two of the "resistor plugs" you can get three different EQ curves and check which one you like better.

That's a little do-it-yourself project but requires only a screwdriver, some parts, and a little patience.

Hope that helps

Hilmar
