Ethernet

From Bose Portable PA Encyclopedia FAQ & Wiki
Jump to: navigation, search

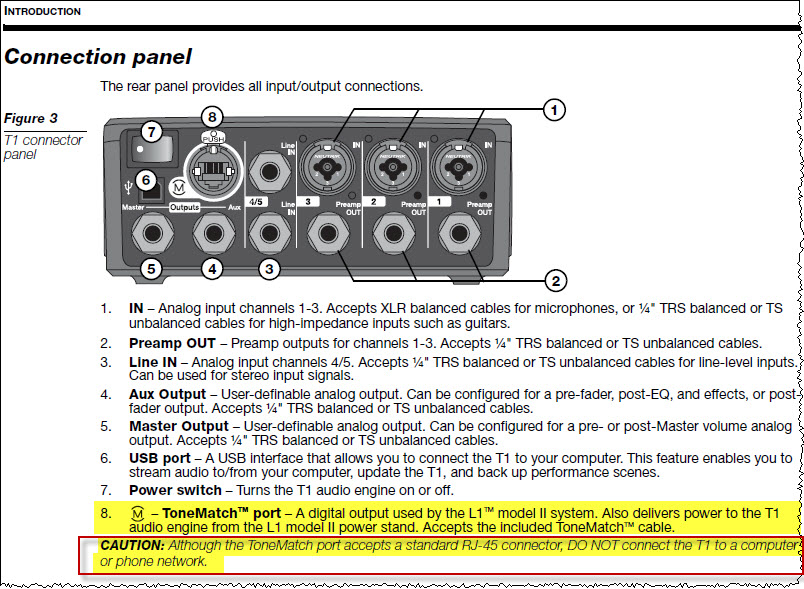

Caution: Although the ToneMatch port accepts a standard RJ-45 connector, DO NOT connect the T1 to a computer or phone network.


T1 Ethernet Warning.jpg


Questions:

Is it possible to connect one T1 ToneMatch® Audio Engine to two L1® Model II using a CAT-5 splitter?
From a technical standpoint, it would not be a good idea to use a CAT5 splitter in conjunction with the T1 Tonematch Engine. Since that line carries power at specific voltage levels to the T1, splitting or combining these signals could possibly risk damaging the T1.
A far better solution to connect the T1 to multiple L1 Model II systems would be to connect the Tonematch (CAT5) cable to the first system normally, and then make a separate connection from the Master Out jack on the Tonematch to the analog input of a second system.
Source: Adam-at-Bose [1]
How do I connect a single T1 ToneMatch® Audio Engine to two L1 Model 1S Power Stands?
T1 ToneMatch® Audio Engine to Two Model 1S Power Stands
How do I connect a single T1 ToneMatch® Audio Engine to two L1 Model II Power Stands?
T1 ToneMatch® Audio Engine to Two Model II Power Stands




  1. Adam-at-Bose Cat5 Splitter
