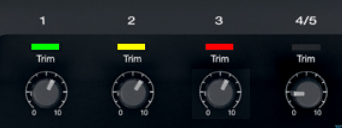

T1 Trim Pots
Any setting is valid as long as the input LEDs are predominantly green with yellow flickers (1 and 2 are okay) - but NOT red (3).
Different input devices will require different settings to achieve a good input as described.
