HeadRush Prime to L1 Pro

Q: How do I connect a HeadRush Prime pedalboard to an L1 Pro

A:

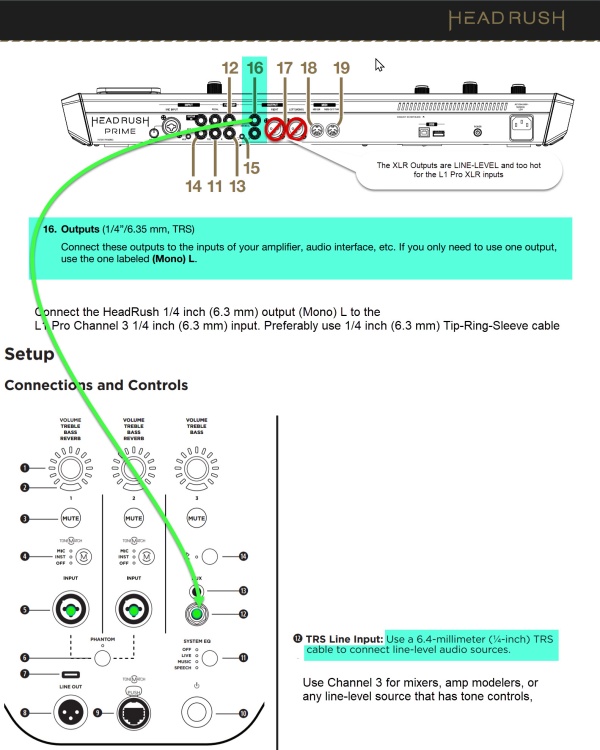

• HeadRush L (mono) 1/4 inch (6.3 mm) Tip-Ring-Sleeve output to L1 Pro channel 3 (1/4 inch (6.3 mm) Tip-Ring-Sleeve).
• Don't use the HeadRush XLR outputs to the L1 Pro XLR inputs. The HeadRush XLR Outputs are line-level and too hot for the L1 Pro XLR inputs (which are designed for microphone-level signal sources.

• On the HeadRush Prime, you can leave the 1/4 output at the default Line Level Output.
  You'll find that under Global | Audio Tab | 1/4" Level.

References:

• HeadRush Prime Quickstart Guide
• HeadRush Prime User Guide

---
