S1 Pro+ USB Charging Port

From Bose Portable PA Encyclopedia
Jump to: navigation, search

S1 Pro+  This information is applicable to the S1 Pro+ system


Overview

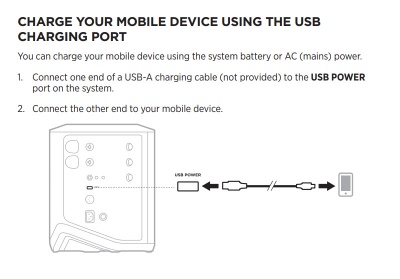

The S1 Pro+ USB Charging Port can charge your mobile device, as described in the S1 Pro+ Owners Guide. For most people, this means a phone or tablet. The port supplies: 5V 1.5A

S1 Pro+ USB Charging Port.jpg

Here are some other uses for it.

Power a Wireless Receiver

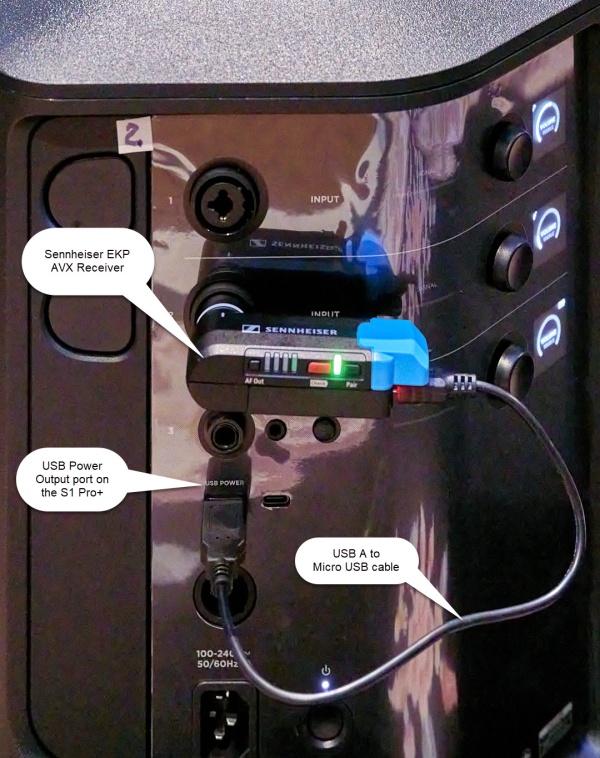

The Sennheiser AVX Wireless System operating range is 100 feet (30 meters). While the transmitter battery life is rated at greater than 10 hours, the receiver (shown in the picture) is rated at greater than 4 hours. You can extend this time by connecting to the S1 Pro+ USB Power port as shown below.

S1 Pro+ Sennheiser AVX USB power.jpg

In case you're wondering why I would use a third-party wireless system, the Sennheiser AVX system shown here operates in the 1.9 GHz band—away from TV and Wi-Fi interference. The range is two to three times that of the Bose transmitter.

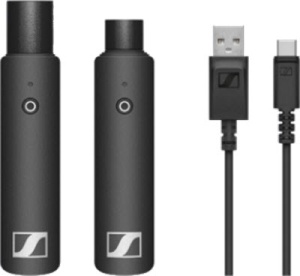

The USB Charging port works equally well with the Sennheiser XSW-D systems with a USB A to USB C cable.

Sennheiser XSD-D XLR Base Set.jpg

Power a Guitar Processor

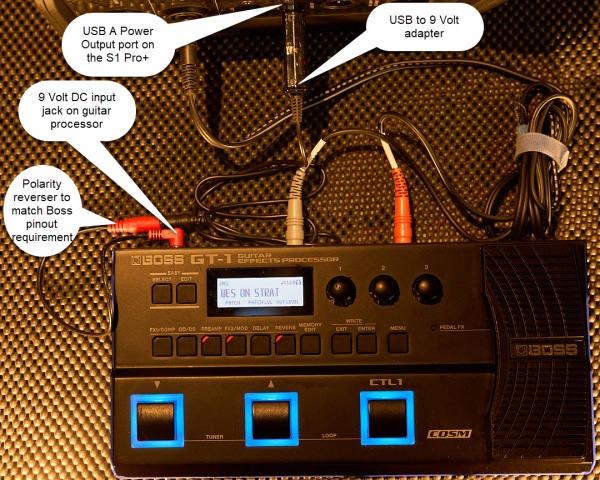

The BOSS GT-1 Guitar Effects Processor shown below operates on batteries or an external power supply. In the picture below, we're using a USB A to 9-volt power adapter to connect the S1 Pro+ USB Power port to the Boss 9-volt input jack.

USB Power Port - 2.jpg

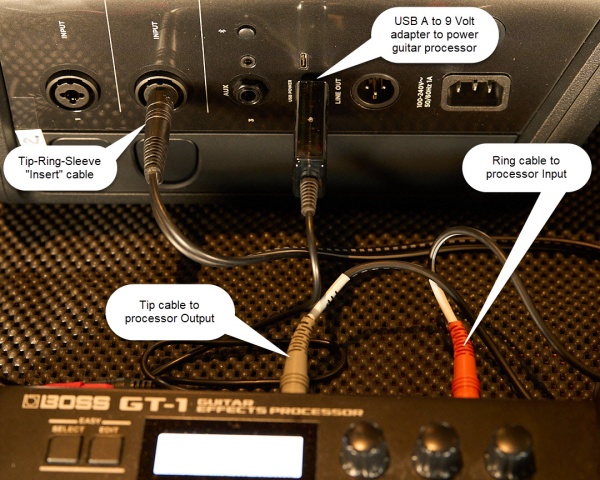

This documents the other connections shown in the photo above. For more information about using the Insert Mode, see S1 Pro+ Wireless Insert Mode With Modeler

S1 Pro+ Wireless Insert Mode Modeler 9.jpg
