Introduction

Connect a guitar with a preamp to the S1 Pro System Aux input

This will be of interest if you are already using S1 Pro System channels 1 and 2 and you need another live input.


If you have questions for comments about this article please see: S1 Pro Aux Input for Guitar discussion for this article

Guitar with Preamp or External Preamp

If your guitar has a preamp, you can connect it to the S1 Pro System Aux input. If your guitar has a volume control, it probably has a preamp. You will rely on controls on the guitar or guitar preamp.

Considerations:

  • There are no Presets or Tone Controls or Reverb for the Aux input
  • You will get less volume from the Aux input than channels 1 and 2 because the input sensitivity is lower on the Aux input.
    This may not be a problem unless you are trying to get maximum output from the S1 Pro System
  • Bluetooth is disabled when you connect to the Aux input

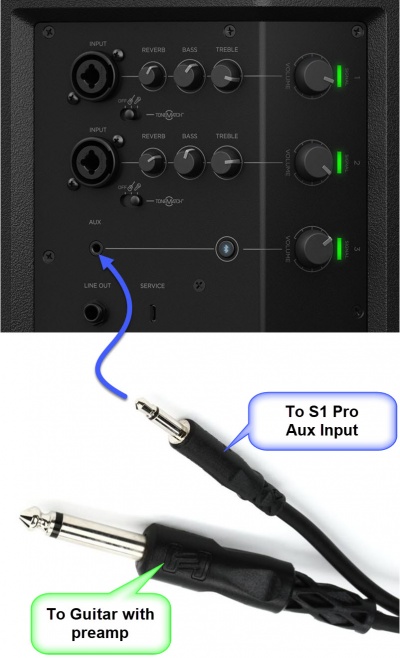

Guitar to S1 Pro Aux Input 1.jpg

OR

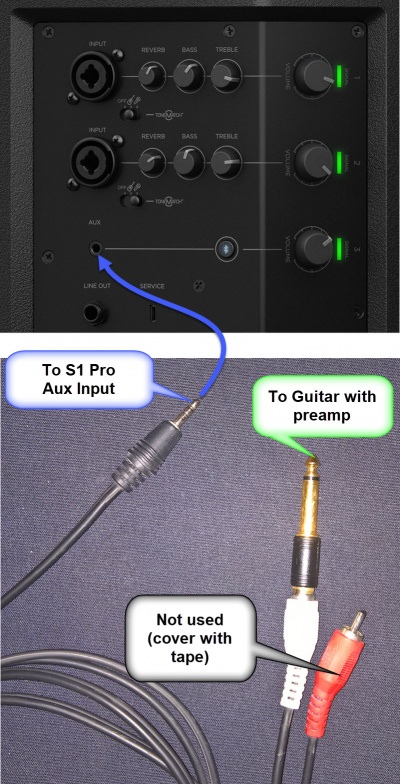

Guitar to S1 Pro Aux Input.jpg

Guitar Processor

Connect your guitar to the guitar processor.

Connect the guitar processor output to S1 Pro System Aux input using a cable like those shown above.

Guitar Processor with Headphone Output

If you have a guitar processor with a headphone output, you can connect that to the S1 Pro System Aux input.

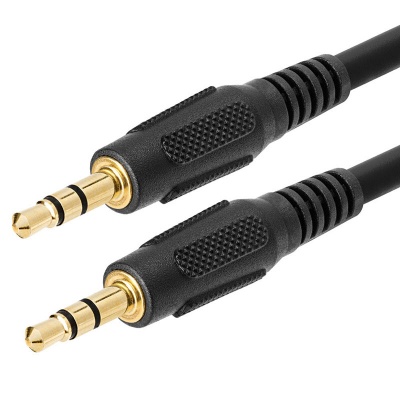

18 trs to 18 trs.jpg

Guitar Processors

Guitar Processors

Mesa Boogie V-Twin IO

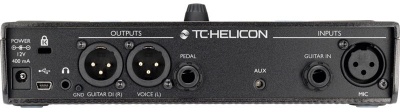

TC Helicon Play Acoustic IO

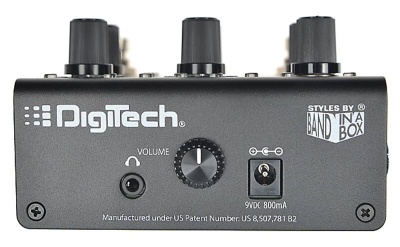

Digitech Trio Plus Creator IO

Kemper Profiling Amp

See: Processors
