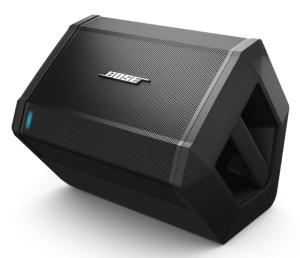

S1 Pro Monitor Mode
When using your S1 Pro system as a stage monitor on the floor in front of you:
- The dispersion is
- Horizontal 50 degrees
- Vertical 120 Degrees
- The EQ is automatically adjusted for best performance on the floor as a stage monitor

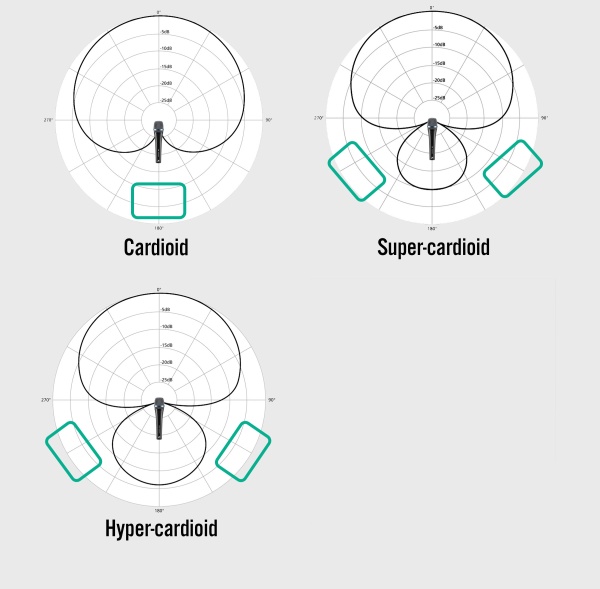

Please position the S1 Pro system so that it avoids the polar pattern (pickup area) of your type of microphone.
- Cardioid
Place the S1 Pro system anywhere behind the microphone (including directly behind the microphone)
- Super-cardioid
Avoid placing the placing the S1 Pro system directly behind the microphone. Put in the null points off-center as shown above
- Hyper-cardioid
Avoid placing the placing the S1 Pro system directly behind the microphone. Put in the null points off-center as shown above
