Stereo to Mono Conversion

From Bose Portable PA Encyclopedia FAQ & Wiki
Jump to: navigation, search
Can I connect a stereo output to a mono input on a Bose Portable PA Product?
There are cables and simple converters that claim to do this. We recommend that you don't use them (see details below about why you shouldn't). Do one of the following:

The following is an excerpt from Why Not Wye

Introduction

Wye-connectors (or "Y"-connectors, if you prefer) should never have been created.

Anything that can be hooked-up wrong, will be. You-know-who said that, and she was right. A wye-connector used to split a signal into two lines is being used properly; a wye-connector used to mix two signals into one is being abused and may even damage the equipment involved.

Here is the rule: Outputs are low impedance and must only be connected to high impedance inputs -- never, never tie two outputs directly together -- never. If you do, then each output tries to drive the very low impedance of the other, forcing both outputs into current-limit and possible damage. As a minimum, severe signal loss results.


Subwoofers
Monoing Your Low End

One of the most common examples of tying two outputs together is in "monoing" the low end of multiway active crossover systems. This combined signal is then used to drive a sub-woofer system.

Since low frequencies below about 100Hz have such long wavelengths (several feet), it is very difficult to tell where they are coming from (like some of your friends). They are just there -- everywhere. Due to this phenomenon, a single sub-woofer system is a popular cost-effective way to add low frequency energy to small systems.

So the question arises as how best to do the monoing, or summing, of the two signals? It is done very easily by tying the two low frequency outputs of your crossovers together using the resistive networks described below. You do not do it with a wye-cord.


Download the full article: Why Not Wye.pdf

Compact

Here is the rule: Outputs are low impedance and must only be connected to high impedance inputs -- never, never tie two outputs directly together -- never. If you do, then each output tries to drive the very low impedance of the other, forcing both outputs into current-limit and possible damage. As a minimum, severe signal loss results.

  • If your source has RCA outputs, use a standard RCA-RCA cable to connect to Compact Channel 2 RCA inputs.
  • If your source has a 1/8" stereo output, use a 1/8" Tip-Ring-Sleeve cable to connect to the Compact Channel 2 1/8" input.




S1 Pro system

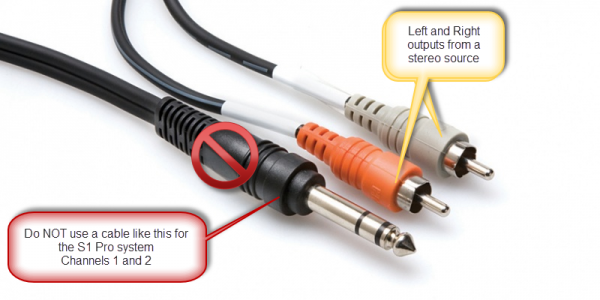

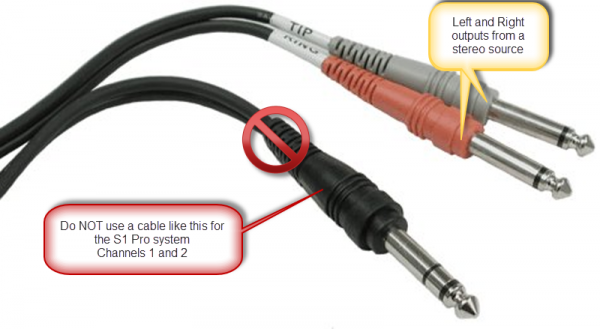

Here is the rule: Outputs are low impedance and must only be connected to high impedance inputs -- never, never tie two outputs directly together -- never. If you do, then each output tries to drive the very low impedance of the other, forcing both outputs into current-limit and possible damage. As a minimum, severe signal loss results.

  • If your source has RCA outputs, use a standard RCA to 1/8 inch Tip-Ring-Sleeve
  • If your source has a 1/8" stereo output, use a 1/8" Tip-Ring-Sleeve cable to connect to the S1 Pro Aux 1/8" input.




Model 1S

Here is the rule: Outputs are low impedance and must only be connected to high impedance inputs -- never, never tie two outputs directly together -- never. If you do, then each output tries to drive the very low impedance of the other, forcing both outputs into current-limit and possible damage. As a minimum, severe signal loss results.



Model II

Here is the rule: Outputs are low impedance and must only be connected to high impedance inputs -- never, never tie two outputs directly together -- never. If you do, then each output tries to drive the very low impedance of the other, forcing both outputs into current-limit and possible damage. As a minimum, severe signal loss results.



T1 ToneMatch® Audio Engine

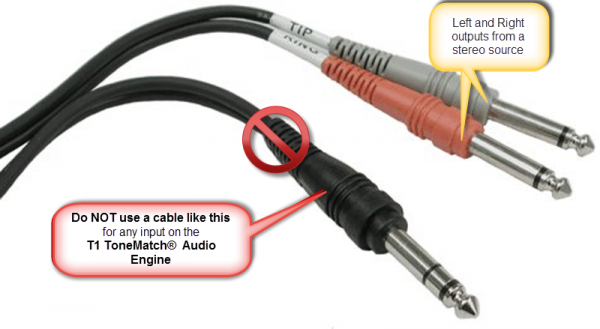

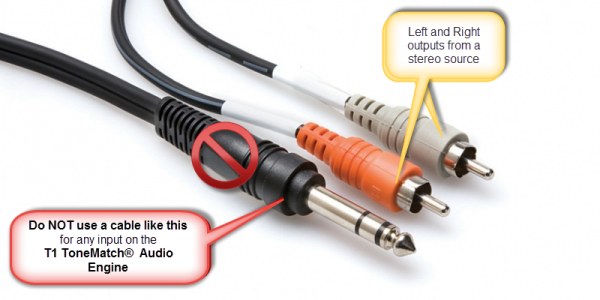

Here is the rule: Outputs are low impedance and must only be connected to high impedance inputs -- never, never tie two outputs directly together -- never. If you do, then each output tries to drive the very low impedance of the other, forcing both outputs into current-limit and possible damage. As a minimum, severe signal loss results.





T4S/T8S ToneMatch Mixers

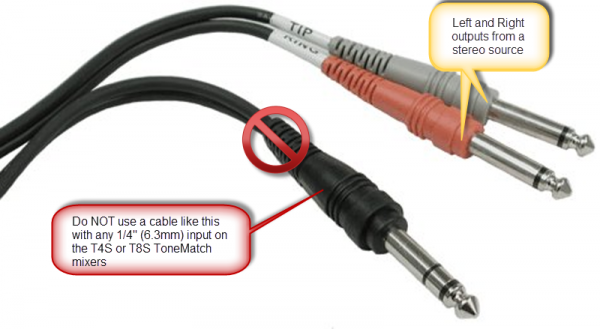

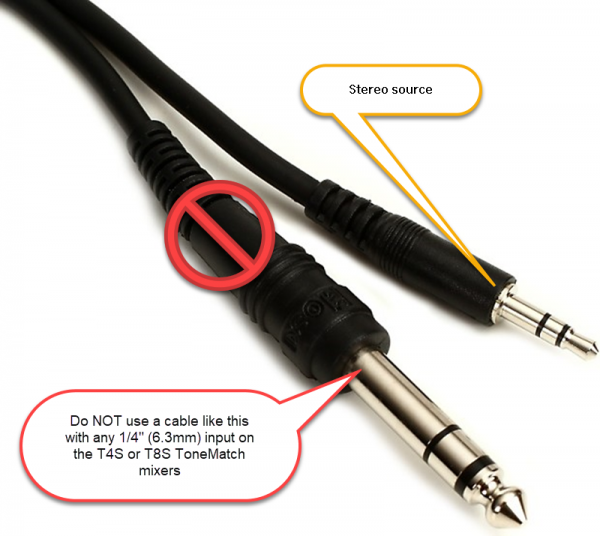

Here is the rule: Outputs are low impedance and must only be connected to high impedance inputs -- never, never tie two outputs directly together -- never. If you do, then each output tries to drive the very low impedance of the other, forcing both outputs into current-limit and possible damage. As a minimum, severe signal loss results.
