T1 ToneMatch® Audio Engine to Model 1S and Compact

T1

L1 Model 1S

L1 Model II

L1 Compact

Please note: Bose recommends that if you have two full sized L1® systems using the same source, that you place those systems at least 20 feet apart (6 meters). This is to avoid Multiple Source Interference.

Running a Model 1S system and L1 Compact with the same source (Dual Mono) is not recommended unless the L1®s are at least 20 feet apart. Also, when using a full sized L1® and a Compact, if the Compact is really close to the full sized system, you may not notice much of the sound of the Compact.

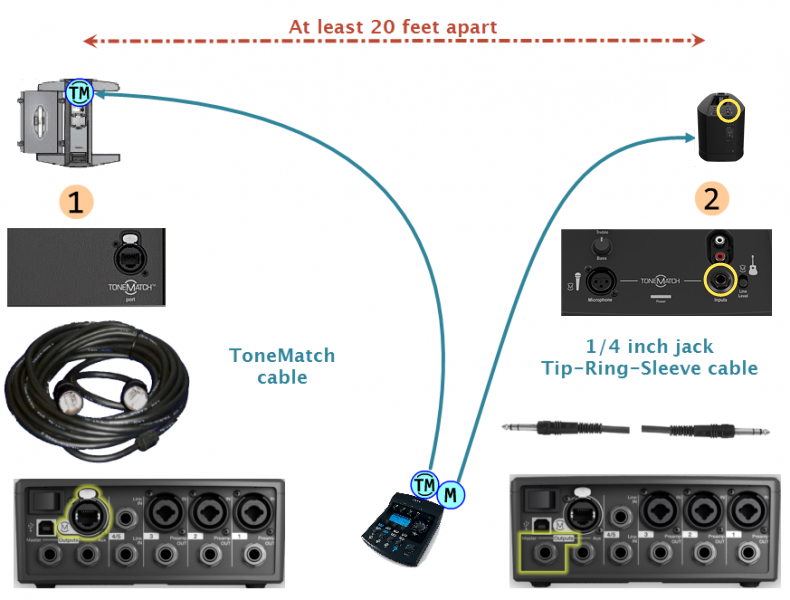

System 1 Connect the first system with the ToneMatch cable that came with the T1®. T1® ToneMatch port to the Model 1S Power Stand ToneMatch port.

Compact Connect the Compact with a ¼ inch jack Tip-Ring-Sleeve cable T1® Master Output to the L1 Compact Channel 2 input. Set the Channel 2 volume "5" and adjust as necessary to get a good balance with the other system. If you are seeing red on the Channel 2 LED light, turn down the volume on the Compact. If you not are using Compact Channel 1, turn the Channel 1 volume all the way off. For best results use a Tip-Ring-Sleeve (balanced) connection. You can use a Tip-Sleeve (unbalanced connection) but the Tip-Ring-Sleeve (balanced connection is preferred).

---
