T4S to F1 Model 821 Tip Ring Sleeve Connection
Contents
Connect the T8S to L1 Model II
The output from the T8S ToneMatch mixer is a balanced mono 1/4 inch (6.35 mm) Tip-Ring-Sleeve and the input on the L1 Model II is a balanced mono 1/4 inch (6.35 mm) Tip-Ring-Sleeve so use a cable like this.
.
1/4" TRS Balanced Patch Cable (audiopile.net)
Connect the ToneMatch Power Supply to the T8S ToneMatch mixer for power.
Gain Staging

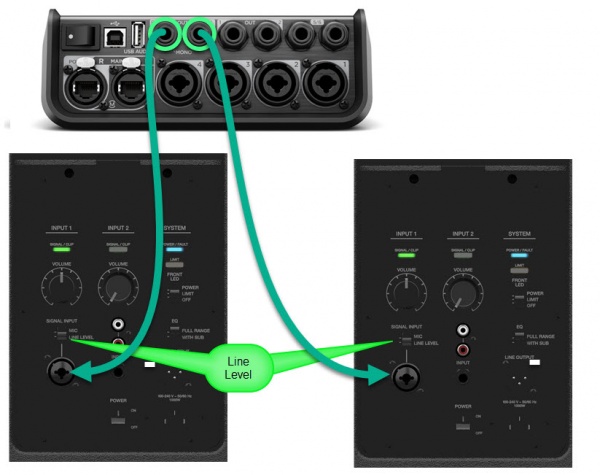

For each F1 Model 812 Flexible Array Loudspeaker
F1 Model 812 Flexible Array Loudspeaker Channel 1 Combo Input
The use a ¼ inch Tip-Ring-Sleeve jack cable.
MIC / LINE LEVEL
Set this to LINE LEVEL
Volume Control
Use the Input 1 volume control.
- Set the Input 1 Volume control to the 0 (zero) position.
- Connect the T4S ToneMatch mixer/T8S ToneMatch mixer Main Output to the Input 1
- Adjust the volume of the T4S ToneMatch mixer/T8S ToneMatch mixer Main Output to the maximum output without distortion. This is probably between 10:00 o'clock and 12:00 o'clock on the Master Output
- While playing music through the T4S ToneMatch mixer/T8S ToneMatch mixer,
on the F1 Model 812 Flexible Array Loudspeaker increase the Volume level so that the Signal/Clip indicator glows green with flickers of red. This will probably be around 9:00-11:00 o'clock - On the F1 Model 812 Flexible Array Loudspeaker if the Signal/Clip indicator glows red, decrease the Volume level so that it glows only green or red. If you see red flashes longer than one second, turn down the volume.
