T8S This information is applicable to the T8S ToneMatch® mixer

Introduction

The T8S ToneMatch mixer XLR outputs are LINE LEVEL. If the house system mixer XLR inputs are MIC LEVEL, the T8S ToneMatch mixer signal from the XLR outputs will be too hot. If you are experiencing distortion when you connect the T8S ToneMatch mixer XLR outputs to a house system mixer XLR inputs, this article is for you.

If you have questions about this article, please see T8S XLR Outputs to House System discussion

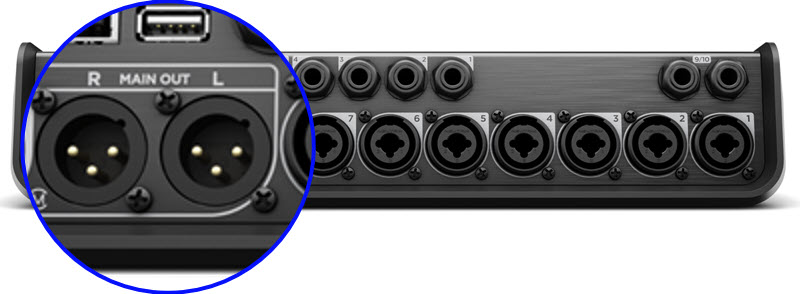

T8S Outputs XLR.jpg

The T8S ToneMatch mixer XLR outputs are LINE LEVEL. If the house system mixer XLR inputs are MIC LEVEL, the T8S ToneMatch mixer signal from the XLR outputs will be too hot. There are several ways to get a better match for the levels.

House System Connection

Most house system mixers should have options to match the input sensitivity to a LINE LEVEL source like a T8S ToneMatch mixer.

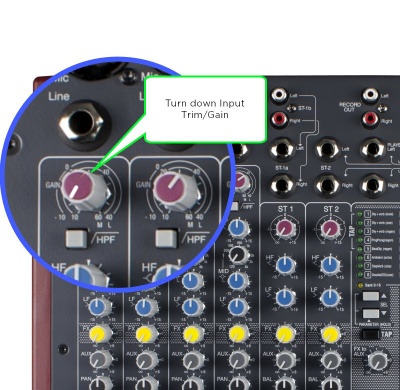

  1. Use the input trim and lower the input sensitivity
    Mixer Input Trim.jpg
    On the house set system, set the input trim so you get a strong input signal without clipping. See the owners manual for the house mixer for details.

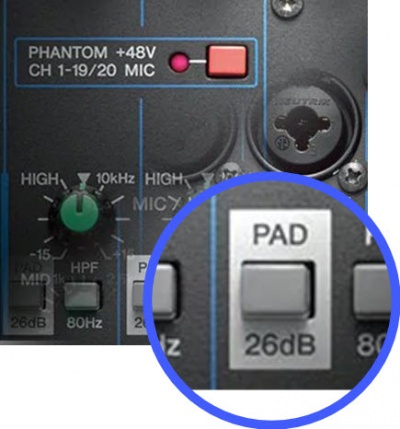

  2. Use the MIC/LINE or ATTENUATION switch to lower the input sensitivity to LINE LEVEL
    Mixer Input Pad Switch.jpg

  3. Use the 1/4 inch (6.3 mm) Tip-Ring-Sleeve LINE LEVEL input
    Allen Heath 60 10FX Inputs.jpg

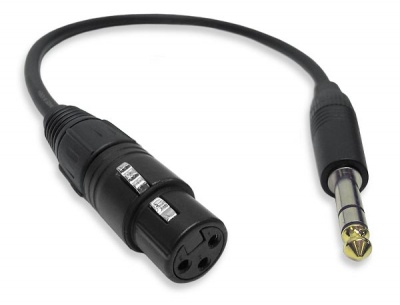

    Use an XLR to 1/4 inch Tip-Ring-Sleeve converter
    MP-105 600w DETAILw.jpg>

Between the T8S ToneMatch mixer and the house system

Use a -30 dB attenuation Pad to between the T8S and the house system
Find them on the web

T8S ToneMatch mixer Connections

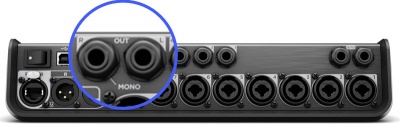

Use the T8S ToneMatch mixer 1/4 inch (6.35 mm) Tip-Ring-Sleeve output to the house system mixer 1/4 inch (6.35 mm) Tip-Ring-Sleeve inputs
T8S Outputs 14.jpg
