Connecting an iPad, iPod, Tablet, Computer to a T8S ToneMatch® mixer


Analog Connections

Aux Inputs

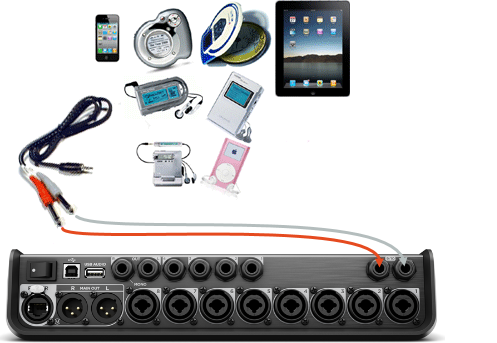

Connect to the Aux Inputs to leave the combo jack inputs available. The Aux inputs are routed directly to the Main outputs. You can set Pan and Level using the Rotary Selector PAN/AUX settings

Backtracks to T8S 910.png

Combo Inputs

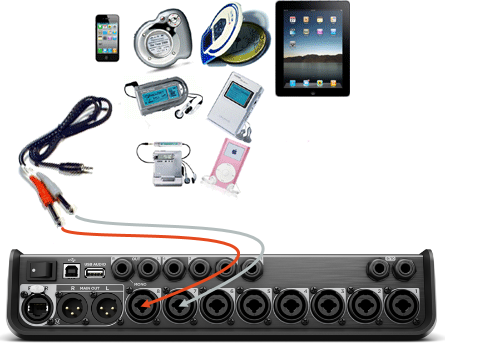

If you need to use Presets, Effects, or the physical volume controls, connect to the last two channels that have combo inputs.

Backtracks to T8S 78.png


Stereo to Left/Right Adapter

Plug this into your source device: an iPad, iPod, Tablet, Computer (headphone or line out jack). Connect:

  • 1/8 inch (3 mm) Tip-Ring-Sleeve jack on the source device and
  • Colored ends to the T8S

Hosa CMP159

Source: Hosa CMP159

T1 ToneMatch® Audio Engine / Gain Staging / Prerecorded music on Channel 4/5

iPad or iPod

If your Apple device does not have a headphone output, consider using the Apple Lightning to 3.5mm Headphone Adapter.

Lightning to 3.5 mm.jpg


You can use just one input on the source device: an iPad, iPod, Tablet, Computer if you can set the source device output to mono. Typically, you can do this under Accessibility options.

Set your iPad or iPhone to Mono

Launch the Settings app on your iPad or iPhone.

  1. Tap General.
  2. Tap Accessibility.
  3. In the Hearing section, turn Mono Audio On

Then use a cable like this but connect only one end (red or grey) to one of the combo jacks on the ToneMatch mixer. This will give you both sides of the stereo track (combined to mono).

Hosa CMP159

Source: Hosa CMP159

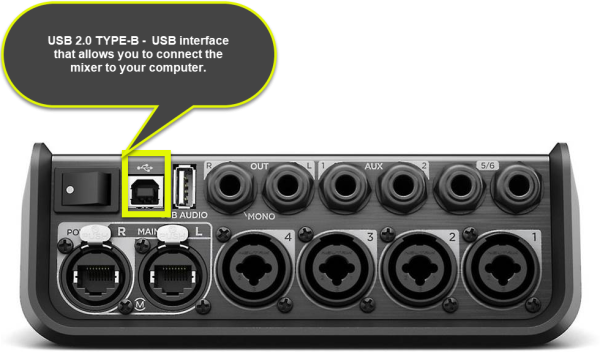

USB B Connection from Computer

T8S/T4S

Documentation Update

USB B from PC and USB A can be directed to:

  • None
  • Aux In
  • Channel 3 or 4 (T4S) ⇐ New
  • Channel 7 or 8 (T4S) ⇐ New
  • Master

Settings for USB B from PC are also applied to USB A Playback.

T4S T8S USB from PC.jpg

USB B from PC to Aux

If you have questions or comments on this video please see this discussion in the Bose Pro Portable PA Community

USB B from PC to Channels

If you have questions or comments on this video please see this discussion in the Bose Pro Portable PA Community


Note
Routing settings for USB from PC are also applied to USB A playback. See USB A Playback.

T1 ToneMatch Audio Engine

Please see: T1 ToneMatch® Audio Engine / USB
