Yamaha MGP12X to T1 ToneMatch Audio Engine

From Bose Portable PA Encyclopedia FAQ & Wiki
Jump to: navigation, search

How To

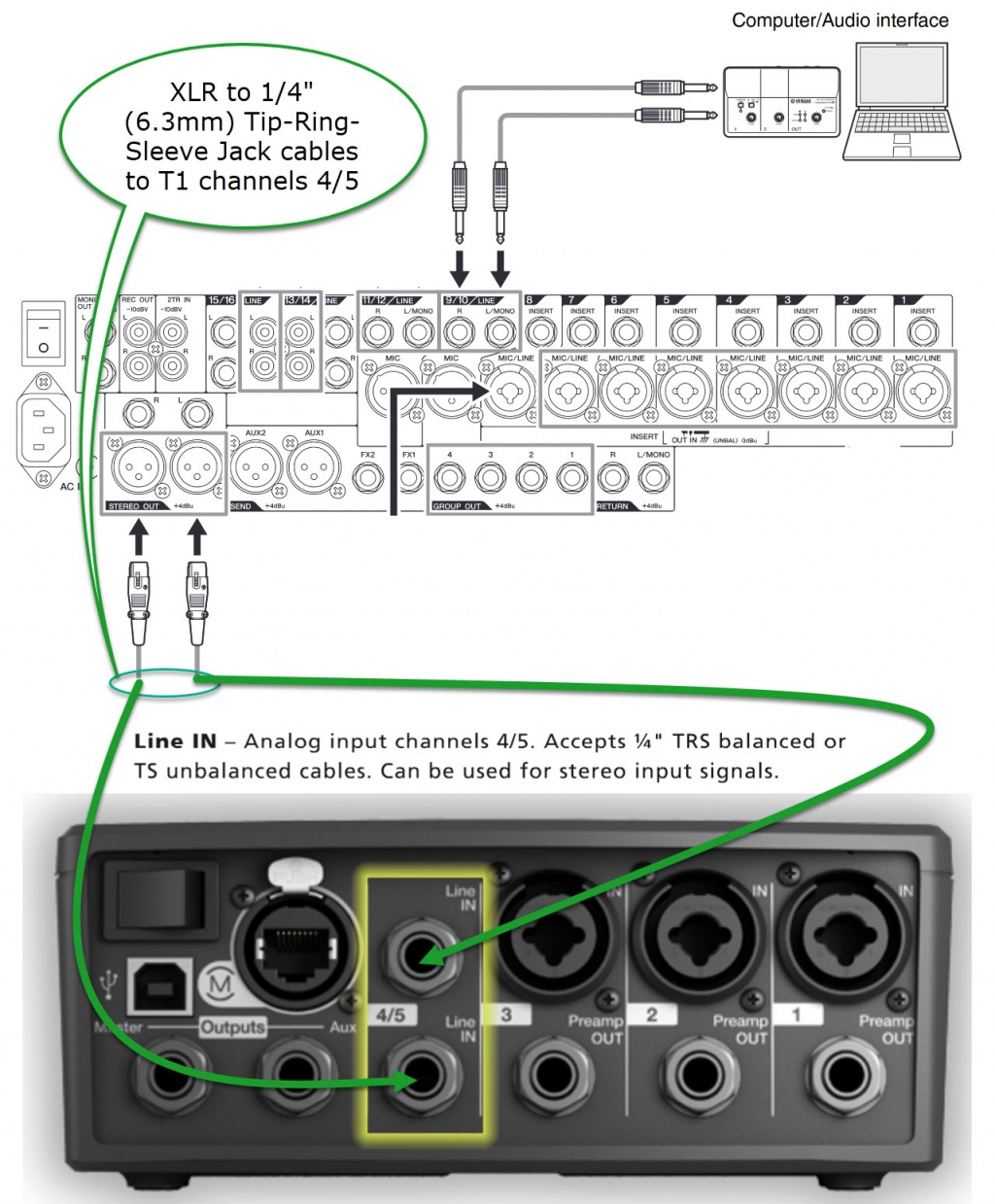

Connect the output of the Yamaha MGP12X to T1 ToneMatch Audio Engine

Use XLR to 1/4" (6.3mm) Tip-Ring-Sleeve Jack cables.

Yamaha MGP12 to T1.jpg

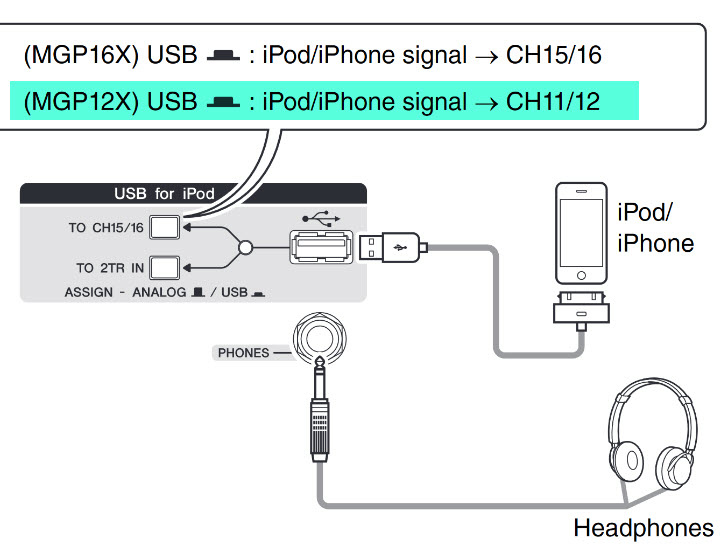

If you are connecting a computer to the Yamaha MGP12X consider using the USB interface.

Yamaha MGP12 USB Interface.jpg

Additional Information

T1 ToneMatch® Audio Engine / Gain Staging

[Yamaha MGP12X Owner's Manual]
