Connections at the PS1 Power Stand (Classic) / Model I

Serial Effects - Excerpt from the PS1 Power Stand (Classic) / Model I Manual



Insert Cable

Typical Insert Cable Hosa STP204

Hosa STP204 Insert Cable

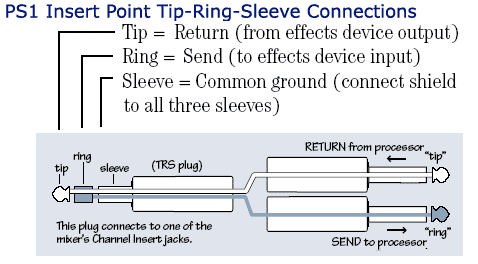

Insert Cable Connections to the PS1 Power Stand (Classic) / Model I

Insert Cable Connections.png
