S1 Pro+ Daisy Chain
Connect Two S1 Pro+ using a wired connection
For a wireless connection see: S1 Pro+ Daisy Chain Wireless
To connect an S1 Pro+ to a second S1 Pro+ using the S1 Pro+ XLR Wireless transmitter.
Terms used
- S1 Pro+ 1
- This is the master S1 Pro+ to which you have connected the sound sources that you want to be heard through both S1 Pro+ systems
- S1 Pro+ 2
- This is the remote S1 Pro+ to which you send the sound from S1 Pro 1
Set Up
- Turn down the volume on both S1 Pro+ systems
- Connect the S1 Pro+ 1 Line Out (XLR connection) to S1 Pro+ 2 Channel 3 Aux Input
The output side is XLR so you will also need a converter or cable that is XLR female to Balanced ¼ inch jack Tip-Ring-Sleeve.

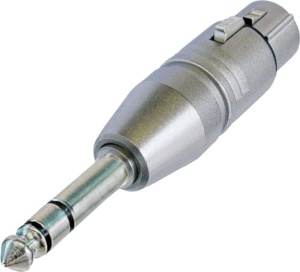

Female XLR to 1/4" Male TRS Balanced Adaptor Cable (audiopile.net) or use an XLR cable with a converter
- On S1 Pro+ 1, bring up the channel volumes to the desired levels
- On S1 Pro+ 2, bring up channel 3 volume to suit your application. Note: This will not necessarily match the same position on the dials as S1 Pro+ 1
