Before proceeding, please read the following instructions:

These instructions describe how to update the firmware of your ToneMatch® mixer.

Download and install the LI System Updater tool at https://www.bose.com/en_us/l1_downloads.html.

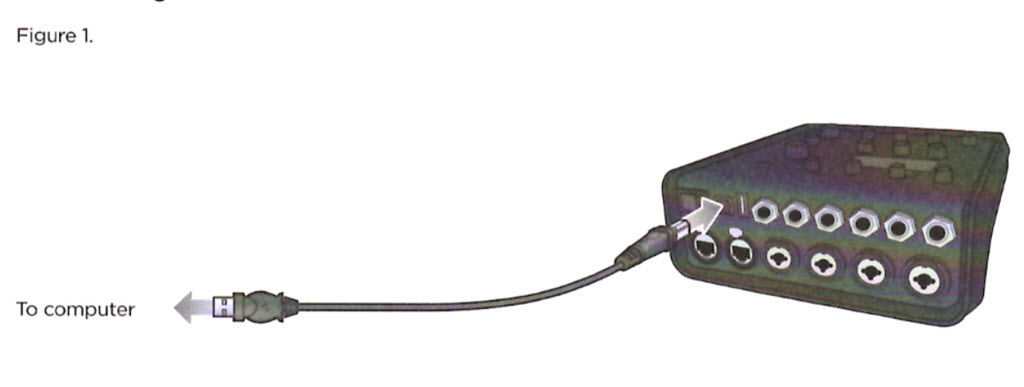

Connect the mixer to your computer via the 2.0 USB Type-B port on the rear panel of your mixer.
See Figure 1.
Connect your mixer to a power source via a ToneMatch cable or power supply and turn on your mixer.
To download the latest firmware, follow the appropriate link:
- http://bosepro.link/t4s
- http://bosepro.link/t8s
Launch the L1 System Updater.
Click the "Update" button next to "T4S (or T8S) Firmware". See Figure 2.

@@ Line 3: / Line 3: @@
 These instructions describe how to update the firmware of your ToneMatch® mixer.
 #	Download and install the LI System Updater tool at https://www.bose.com/en_us/l1_downloads.html.
-#	Connect the mixer to your computer via the 2.0 USB Type-B port on the rear panel of your mixer. <br>See Figure 1.<br>Figure 1<br>
+#	Connect the mixer to your computer via the 2.0 USB Type-B port on the rear panel of your mixer. <br>See Figure 1.<br>[[File:T4S T8S firmware update figure 1.jpg]]<br>
 #	Connect your mixer to a power source via a ToneMatch cable or power supply and turn on your mixer.
 #	To download the latest firmware, follow the appropriate link:
@@ Line 10: / Line 10: @@
 #	Launch the L1 System Updater.
 #	Click the "Update" button next to "T4S (or T8S) Firmware". See Figure 2.
+<br>[[File:T4S T8S firmware update figure 2.jpg]]
-PDF version [[File:T4S T8S Firmware Update Instructions.pdf]]
+;WARNING: Do NOT unplug or power off the mixer while it is updating.
+PDF version [[Media:T4S T8S Firmware Update Instructions.pdf|T4S T8S Firmware Update Instructions]]
