L1 Compact

Boss ME-80.jpg

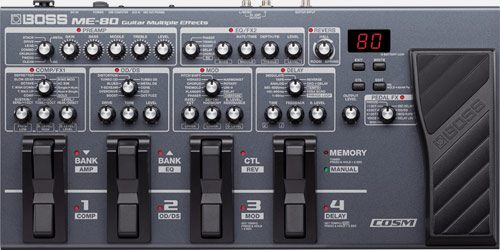

The Boss ME-80 is a guitar multi-effects unit for electric guitar. The outputs are designed to be connected to an electric guitar amp. These outputs will not sound their best when connected to a full range system like your L1® connected to your T1 ToneMatch Audio Engine or L1 Compact. For best results, you will want to activate the guitar amp simulators in the Boss ME-80.

Referring to page three of the Boss ME-80 Users Guide. Boss ME 80 Users Guide

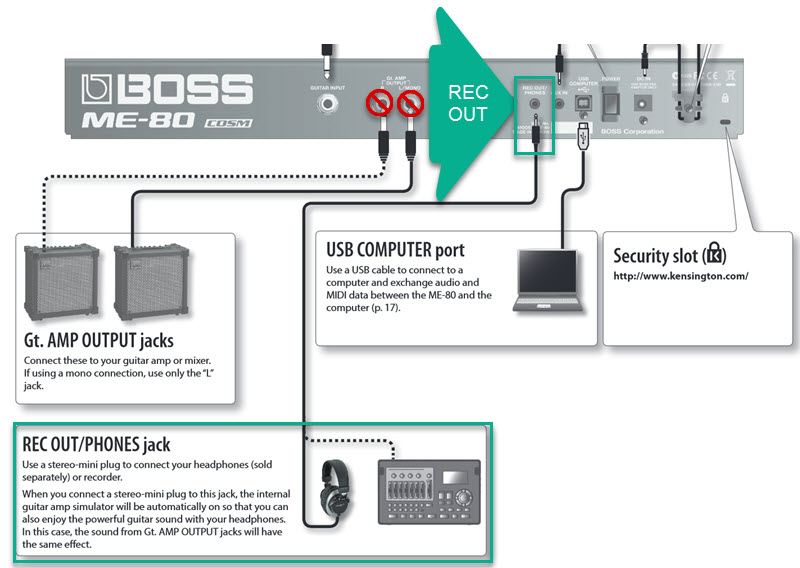

To activate the amp simulators you need to connect something to the Record Out / Phones Jack.

Boss ME 80 Rec Out.jpg

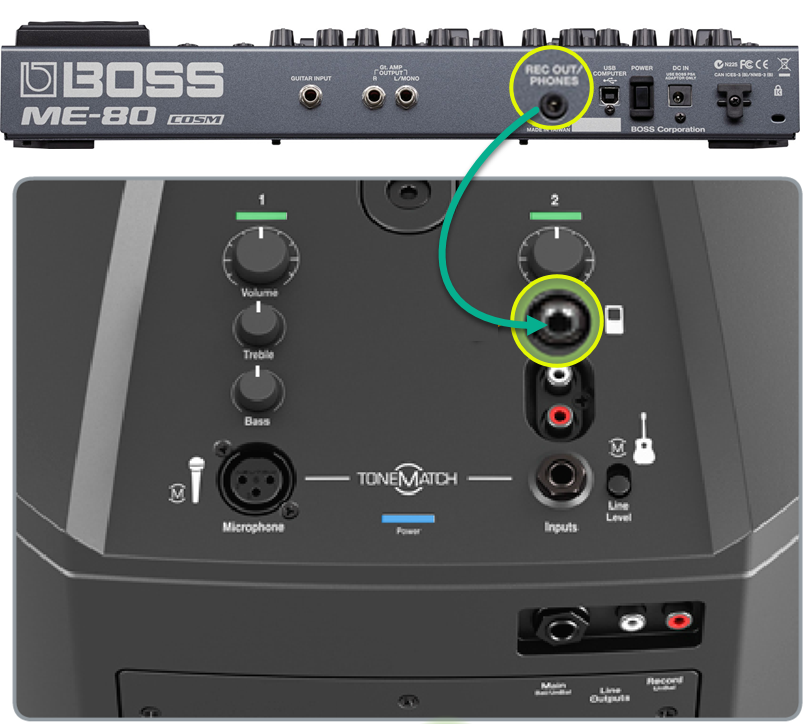

L1 Compact

Boss ME-80 Outputs to Compact.png

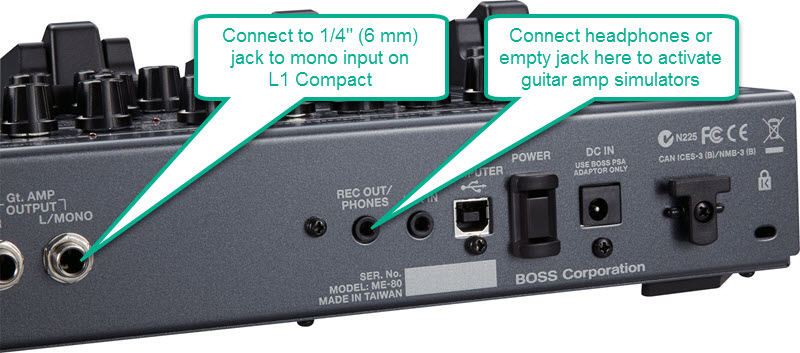

Or you can plug an empty jack plug to the Boss ME-80 Record Out / Phones Jack. This turns on the guitar amp simulators. Then you can connect Left (MONO) output to L1 Compact Channel 2. Set the ToneMatch switch to Line Level.

Boss ME 80 to Compact version 2.jpg

Compact Channel 2 Line Level.png

Please see the live discussion: multi effects
