Jazz Guitar

From Bose Portable PA Encyclopedia
Jump to: navigation, search

T1 This information is applicable to the T1 ToneMatch® audio engine
T4S This information is applicable to the T4S ToneMatch® mixer
T8S This information is applicable to the T8S ToneMatch® mixer
L1 Model II This information is applicable to the L1®  Model II
L1 Compact
S1 Pro  This information is applicable to the S1 Pro system

Gibson L5-CES (Wes Montgomery)

Recommended ToneMatch Presets for Jazz Guitars (semi-acoustic archtop electric guitars)

Questions or comments?

See Jazz Guitar Settings in the Bose Portable PA Community.

ToneMatch Mixers

This is the same as Utility/Flat except it sets theZEQ centers for Low, Mid, High to useful values for electric guitar.

Here's another one to try.

This sounds like you're running clean through a 12 inch loudspeaker in a guitar cabinet.

L1 Model II or L1 Model 1S

Gibson L5-CES (Wes Montgomery)

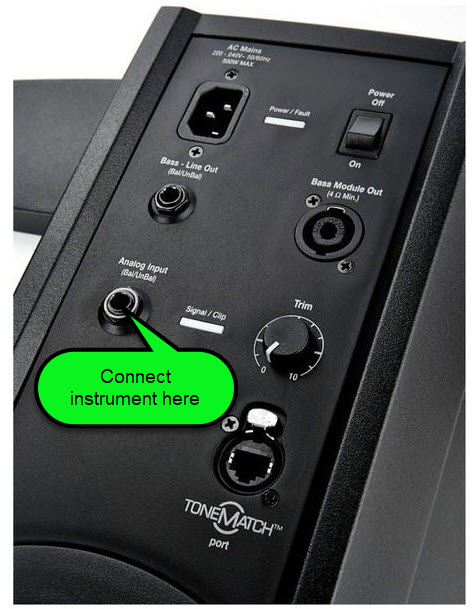

You can connect your guitar directly to the Power Stand Analog Input. Set the Trim so when you play the loudest, you see solid green with occasional flickers of yellow. Then control the volume using your guitar.

L1 Model II Analog Input Instrument.jpg

L1 Compact

Connect your guitar directly to the L1 Compact channel 2. Set the ToneMatch switch to Line Level (down position). This will give you the flattest response.

Compact Channel 2 Line Level.png

If you find the tone is too bassy, set the ToneMatch switch to Guitar (up position)

S1 Pro System

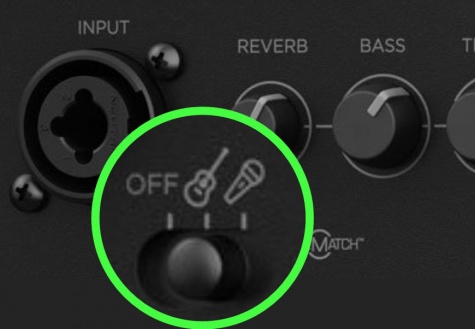

You may be closer to the S1 Pro System than the other models above. As a result, you may get some low-frequency feedback or unwanted resonance exciting the body of the guitar. Try all three ToneMatch Presets.

  • Off - is flat
  • Guitar - rolls of some bass
  • Mic - more emphasis on vocal frequencies and low end roll off

S1 Pro ToneMatch Switch.jpg
