Les Paul Ultima

From Bose Portable PA Encyclopedia FAQ & Wiki
Jump to: navigation, search

The Ultima marries the craftsmanship of the Custom Division with the structural features of the Les Paul. A highly figured maple top and abalone binding are but two of the many features of this incredible instrument.

The selection of hand inlaid fingerboards are among the most beautiful created by Gibson, including the Tree of Life, the Harp, and Flames. Set off by the original Heritage Cherry Sunburst finish, this line of guitars is the Ultimate.

Body:

  • Top wood: Highly quilted maple
    • Other Also available with flame maple top
  • Back wood: Solid mahogany
    • Other Dynamic sound chambers
  • Binding: Multi-ply abalone on top
  • Finish Colors: Heritage Cherry Sunburst

Neck:

  • Neck construction: 1-piece mahogany
  • Fingerboard wood: 22 fret ebony
    • Other: Abalone side dots
  • Inlays: Harp, Flame, or Tree of Life; all in mixed abalone/mother of pearl
  • Binding: Single-ply white
  • Profile: Rounded
  • Scale length/Nut width: 24 3/4"; 1 11/16"
  • Strings: Brite Wires .010-.046

Electronics & Hardware:

  • Pickups: '57 Classic humbuckers
  • Controls:2 volume, 2 tone, 3-way switch
  • Hardware Color:Gold
  • Bridge/Tailpiece: Nashville TOM/Stopbar or Ultima loop
  • Tuner style: Grover Imperial


Les Paul Ultima on gibson.com

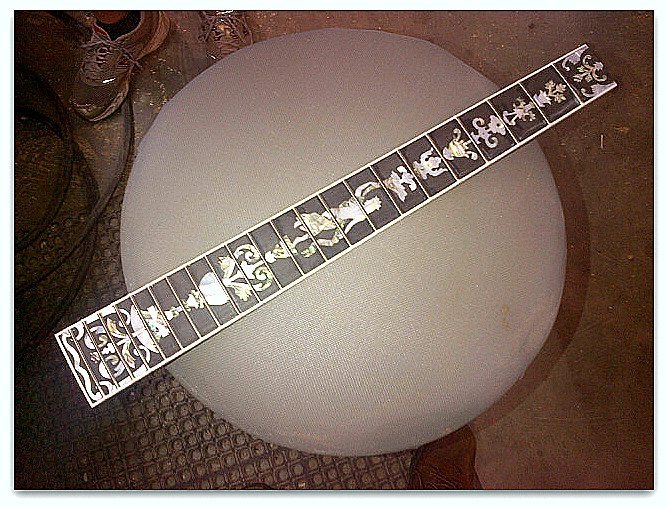

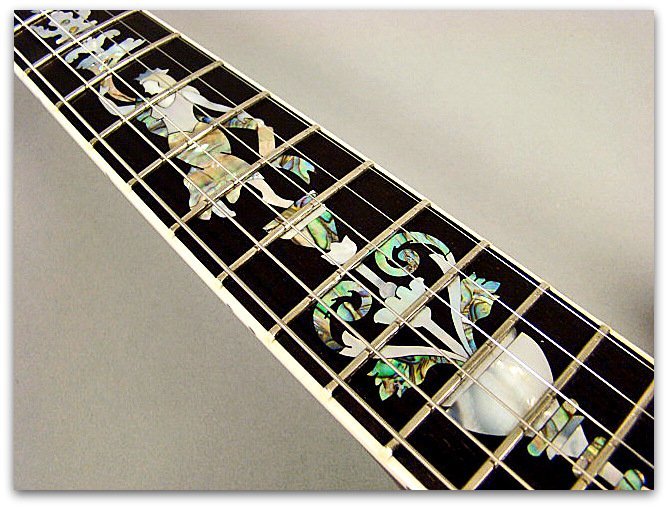

Shots of the Harp Lady

Found on the internet.

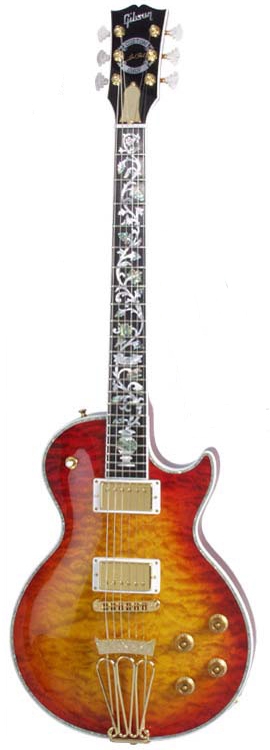

Tree of Life


History and Details

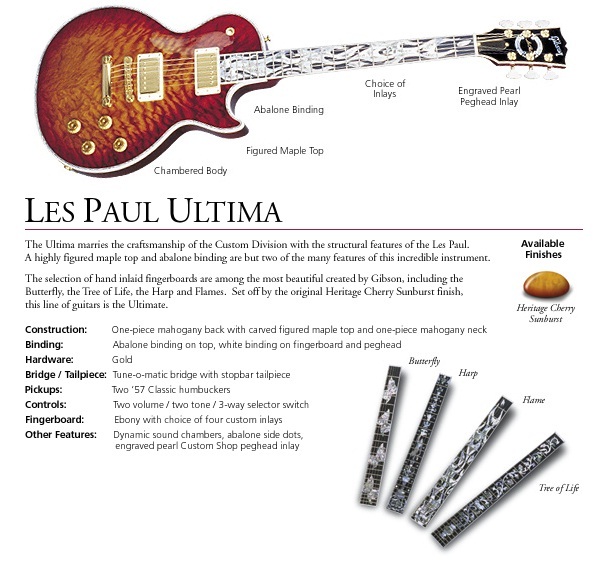

Original Web Page


More Information

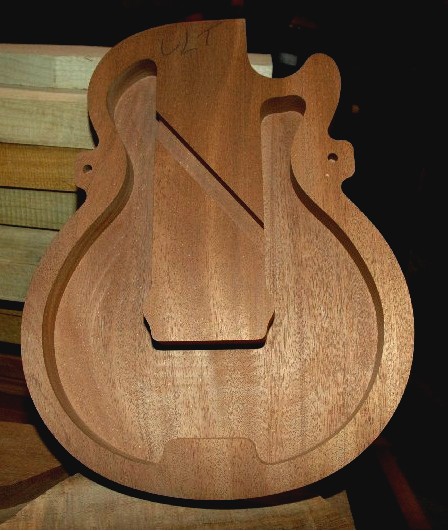

This is all I have on the Ultima. Other than the wild fretboard inlays, it is pretty much a chambered reissue.
I think some of the early ones had a slightly different chambers but I can't find my exact photos of them.






Source: CR9 - Gibson Brands Forums
