Sennheiser Wireless Transmitter to Apple Lightning

From Bose Portable PA Encyclopedia
Jump to: navigation, search

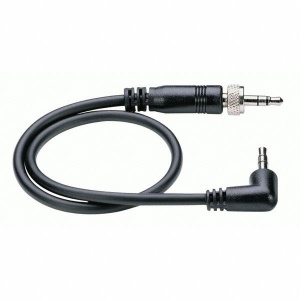

Sennheiser CL1.jpg

Many of the Sennheiser Wireless Transmitters use a 1/4" TRS (3.5mm) TRS output connection.

To connect this to an Apple Lightning connection, use two adapters

  1. Apple Lightning to 3.5mm Adapter
  2. Azden HX-Mi TRRS Audio Adapter Cable for Smartphones and Tablets

Notes: The headphone adapter cable (#1 above) is wired for a TRRS signal, the usual CL 1 won’t work as it’s wired for a TRS connection. You can use a TRRS splitter, which allows a lot of versatility with the added benefit of letting you plug in headphones (super useful for playback.
