T1® No Sound

From Bose Portable PA Encyclopedia FAQ & Wiki
Jump to: navigation, search

If you have no sound coming through your T1 ToneMatch Audio Engine and everything looks okay there are several things to you can check.

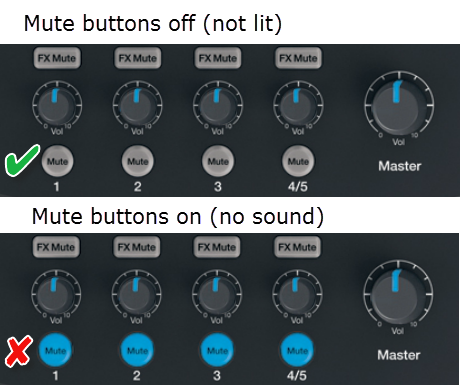

Check Channel Mute Buttons

Make sure that the Channel Mute buttons are NOT lit.

T1 Channel Mutes.png

Double Check Inputs

  1. Try your inputs in different channels.
  2. Try connecting a microphone to Channel 1.
  3. If you are using a condenser microphone make sure that you have phantom power turned on.

Check Inputs

If you are using 1/4 inch inputs make sure that you are using the inputs in the top row (in the center of the XLR/Combo inputs). NOT the Preamp Outputs in the bottom row.

T1 Inputs Not Preamp Outputs.png

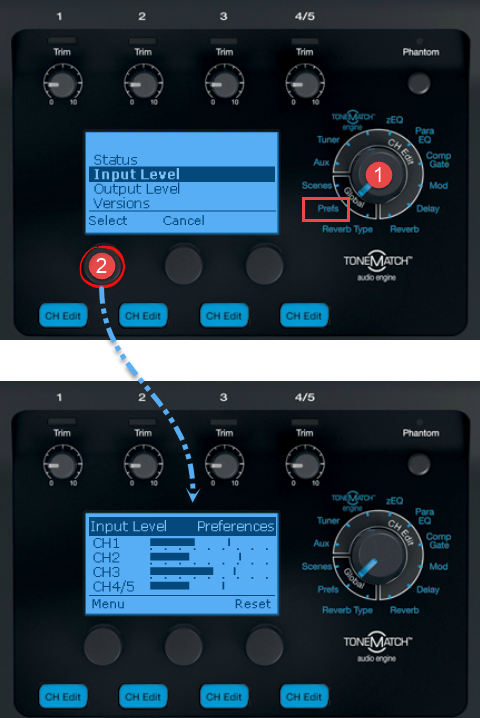

Check Input Levels

  1. Turn the Rotary Selector to Prefs
  2. Turn Select knob to Input Level, press to see the Input Levels

T1 Prefs Input Level.png

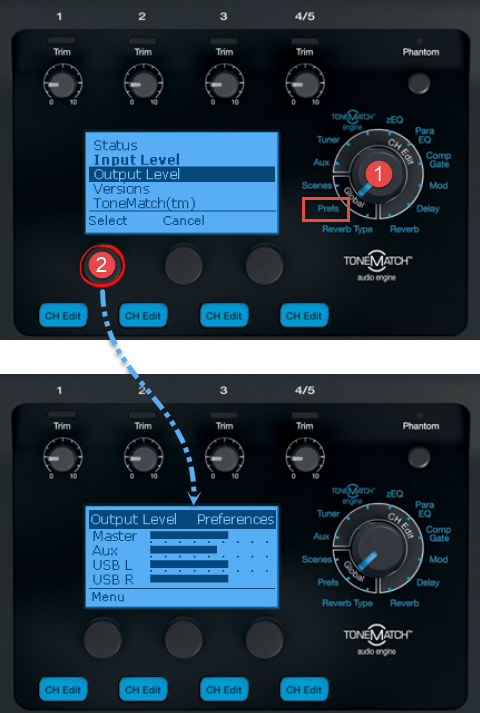

Check Output Levels

  1. Turn the Rotary Selector to Prefs
  2. Turn Select knob to Output Level, press to see the Input Levels


T1 Prefs Output Level.png
