T4S to L1 Model 1I

T4S Settings

Note: The ToneMatch port used for power and signal to a single L1 Model II or L1 Model 1S is the RIGHT output. Ensure that the PAN settings for each input are up the center or panned hard right. Any signal panned hard left will not be heard through the L1.

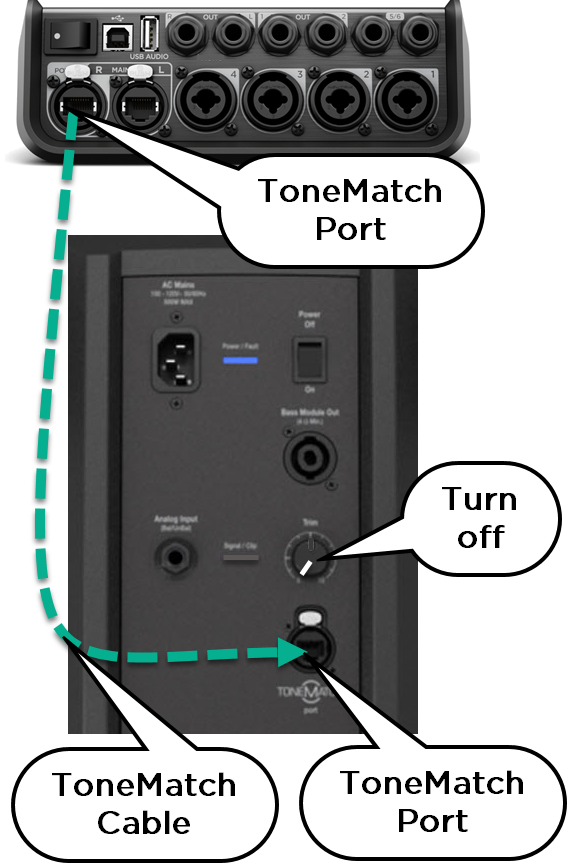

T4S to L1 Model 1S.png

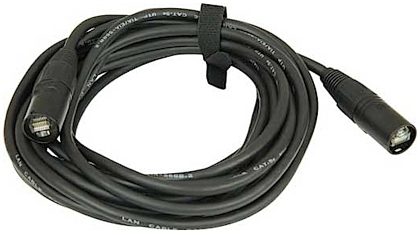

ToneMatch Cable

ToneMatch Cable.jpg

The cable may have silver ends.
