T4S This information is applicable to the T4S ToneMatch® mixer
L1 Pro This information is applicable to the L1 Pro

Introduction

This article applies to a T4S ToneMatch Mixer connecting to an L1 Pro (any model).

In addition to the three inputs on the L1 Pro systems, you can add a T4S. When you do,

  • The inputs and controls on the T4S operate independently from the inputs and controls on the L1 Pro
  • The three inputs on the L1 Pro operate independently of the T4S. The operation of the controls of the L1 Pro is the same whether a T4S is connected via the ToneMatch port
Note
This article applies ONLY to connections from a T4S to an L1 Pro. We have other articles for

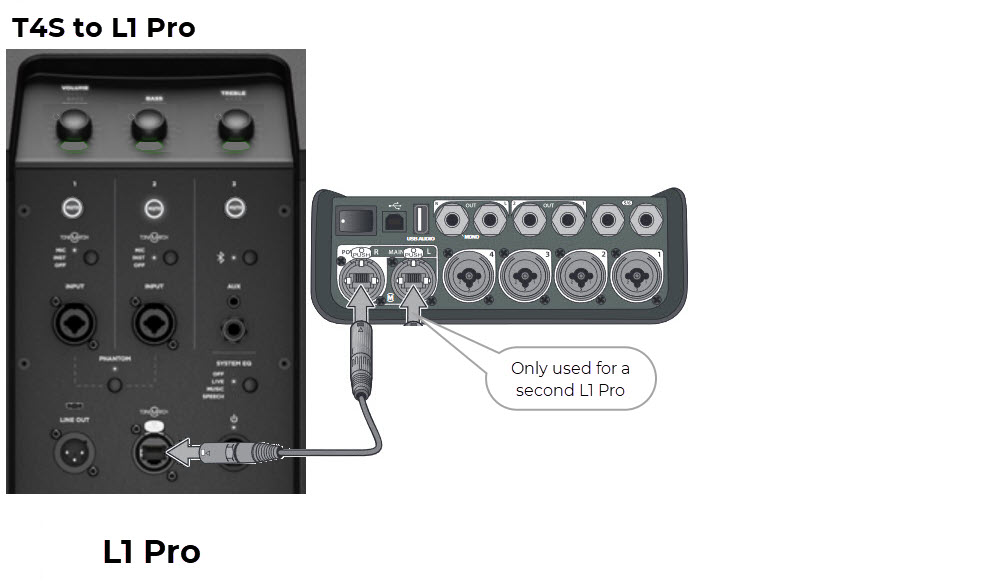

T4S to One L1 Pro System

  • Use the ToneMatch cable (included with the T4S) to connect the Right digital output to the L1 Pro ToneMatch port. Power will be supplied by the L1 Pro
  • On the L1 Pro, turn down the volume and/or mute any unused channels
  • Adjust the relative levels using the T4S channel volume controls

T4S to L1 Pro.jpg

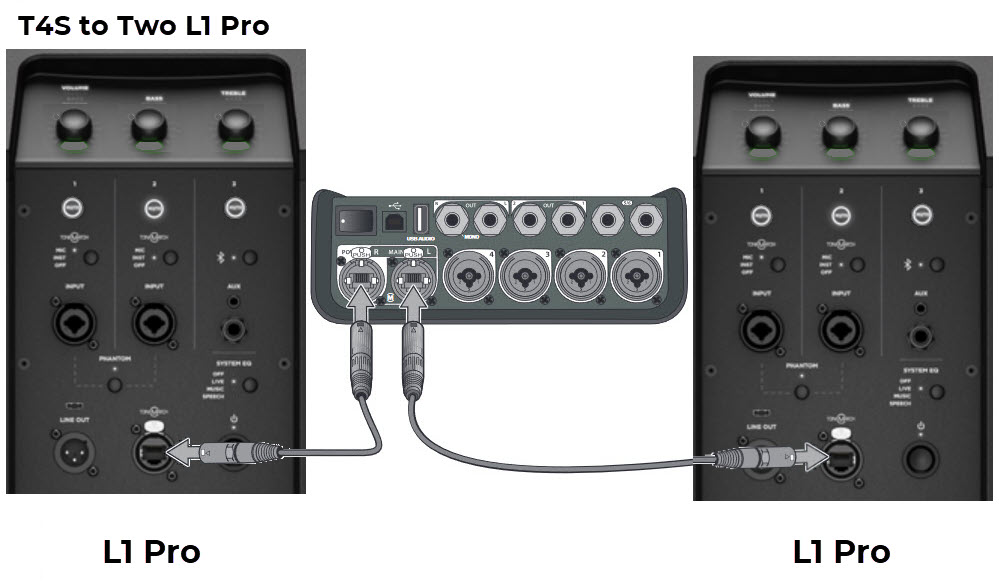

T4S to Two L1 Pro Systems

  • Use the ToneMatch cable (included with the T4S) to connect the Right digital output to the L1 Pro ToneMatch port. Power will be supplied by the L1 Pro
  • On the L1 Pro, turn down the volume and/or mute any unused channels
  • Use another ToneMatch cable (or equivalent) to connect the Left digital output to the second L1 Pro ToneMatch port. No power will be supplied by the L1 Pro
  • On the L1 Pro, turn down the volume and/or mute any unused channels
  • Adjust the relative levels using the T4S channel volume controls

T4S to L1 Pro x2.jpg

ToneMatch Cable

Overview

The Bose ToneMatch cable comes with the T4S ToneMatch mixer (and the T1 ToneMatch Audio Engine}. It is an optional accessory for the T8S ToneMatch mixer and the L1 Pro systems.

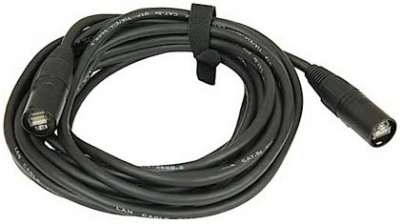

ToneMatch Cable.jpg


ToneMatch Cable

The T4S and T1 ToneMatch Audio Engine uses a digital connection to the L1 Pro and L1 Model 1S/L1 Model II Power Stands. This is labeled ToneMatch®. The T8S ToneMatch mixer can connect to the L1 Pro systems via the ToneMatch port, but not to the L1 Model 1S/L1 Model II.

The connecting cable has a male Ethercon connection at each end that looks like this.

Ethercon connector

CAT5 or CAT6 or CAT7 or CAT8 cable

If your ToneMatch® cable gets damaged or lost  you can use a computer network cable type CAT5 or CAT6 or CAT7 or CAT8 cable. There's no compelling reason to choose higher category cables. All should work.

The T4S and T1 ToneMatch Audio Engine come with a Pro Ethercon cable, with robust metal connector shells and an almost memoryless 18' black cable.

Cat5 cable

However, in a pinch, should you forget the cable, or if say a huge Hammond B3 gets dropped on the cable and severs it, you can use and ordinary Ethernet cable and it will work fine.

Later in that discussion Hilmar-at-Bose tells us:

Any CAT5 (or CAT5e, CAT6, or CAT7 or CAT8) cable will work just fine without any degradation at least initially. The downsides are that most ethernet cables don't coil particularly well and that the connectors wear out over time. After a a few hundred uses you may notice the occasional drop out, at which point it's time to get a new one.

It's certainly a quick and cheap way to get a spare for an emergency.

Bose recommends you do not exceed a fifty foot cable run.

Convert Cat-5/6/7/8 to Ethercon

NE8MC EtherCon® Cable Connector Carriers (retrofit over an existing RJ-45 Connector).

Example vendor http://www.fullcompass.com/product/255589.html

Cable Length

Up to 50 feet

A technical note from Bill-at-Bose [1]

A 33 or 50 footer will not cause any problems, either with the digital audio (ones and zips) or the power.

The technical reason follows, for those who are interested : A 24 gauge wire (the size typically used in ethernet cables) has about 2.5 Ohms of resistance per 100 feet. The T1 draws roughly 1/4 Amp on each of two supply wire pairs (+/-18V nominal).

For a 50 foot run, each pair of wires (made up of a plus and minus lead) totals 100 feet. A quarter Amp of current across 2.5 Ohms gives, per Ohm's law, a voltage drop of less than one volt (V=IR = 0.625 Volts). Because of the margin we built into the system, it can handle this voltage drop easily.

In fact, although we don't recommend it and can't guarantee it, the digital audio has been tested up to 100 feet in average conditions (for example, no undervoltage on the AC supply at the gig), and quite happily continued to make music.

Over 50 feet

MikeZ-at-Bose added in a later discussion:[2]

Bill at Bose stated you could run 50' of ethernet cable no problem at all. Success at distances longer than that would start to depend on outside factors, for instance the voltage of your power source.

Another option for you is to run the T1 ToneMatch Audio Engine off of the optional power supply, and then run a balanced line from the Master Out on the T1 ToneMatch Audio Engine to the balanced 'analog input' on the L1 Model II. This method would be able to transmit over a hundred feet, perhaps much more.

¼ Inch Tip-Ring-Sleeve (balanced) to ¼ Inch Tip-Ring-Sleeve (balanced)

A balanced connection is preferred and will provide better noise rejection over greater distances than the unbalanced connection.

Tip-Ring-Sleeve to Tip-Sleeve
