Issue

Can I connect the Master Outputs from my T4S ToneMatch mixer or T8S ToneMatch mixer to RCA phono inputs on a mixer?

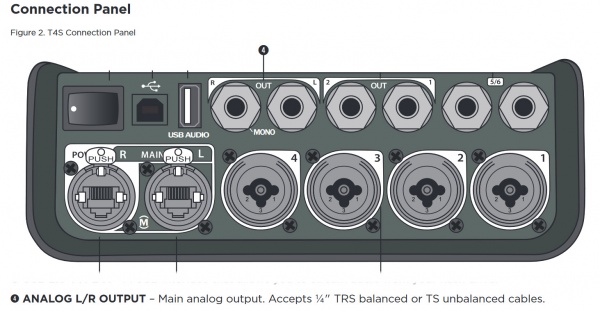

T4S Main Outputs.jpg

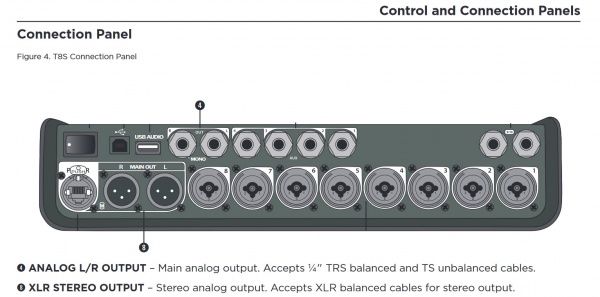

T8S Main Outputs.jpg

Environment

The house system at a gig has only RCA phono inputs.


Resolution

RCA phono inputs are usually consumer level inputs: -10dBv. Your T4S outputs are pro audio level: +4dBu. The outputs of the T4S will likely be 11.79 dB higher than the RCA phono inputs were designed to handle. This may still all work, but you may have to keep the T4S Master Output lower than usual to avoid distortion.

See: -10dBv and +4dBu voltage levels


Cause

Not applicable to the resolution for this issue



Related discussion Stereo Out or Not
