T8S to F1 Model 812 Tip Ring Sleeve Connection

From Bose Portable PA Encyclopedia
Jump to: navigation, search

Connect the T8S to L1 Model II

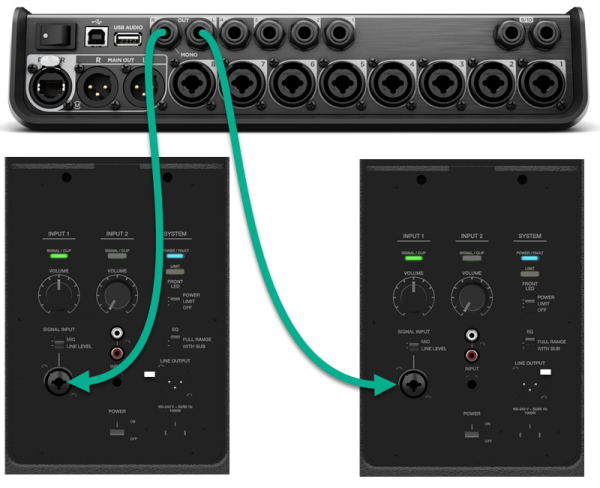

T8S to F1 Model 812 TRS x 2.png


The output from the T8S ToneMatch mixer is a balanced mono 1/4 inch (6.35 mm) Tip-Ring-Sleeve and the input on the F1 Model 812 Flexible Array Loudspeaker is a balanced mono 1/4 inch (6.35 mm) Tip-Ring-Sleeve so use a cable like this.

1/4" Male TRS to 1/4" Male TRS  Cable.

1/4" TRS Balanced Patch Cable (audiopile.net)



Connect the ToneMatch Power Supply to the T8S ToneMatch mixer for power.


Gain Staging

For each F1 Model 812 Flexible Array Loudspeaker

F1 Model 812 Flexible Array Loudspeaker Channel 1 Combo Input

The use a ¼ inch Tip-Ring-Sleeve jack cable.

MIC / LINE LEVEL

Set this to LINE LEVEL


Volume Control

Use the Input 1 volume control.

F1 812 Channel 1 only.png

  1. Set the Input 1 Volume control to the 0 (zero) position.
  2. Connect the T8S ToneMatch mixer Main Output to the Input 1
  3. Adjust the volume of the T8S ToneMatch mixer Main Output to the maximum output without distortion. This is probably between 10:00 o'clock and 12:00 o'clock on the Master Output
  4. While playing music through the T8S ToneMatch mixer, increase the Volume level so that the Signal/Clip indicator glows green with flickers of red. This will probably be around 9:00-11:00 o'clock
  5. If the Signal/Clip indicator glows red, decrease the Volume level so that it glows only green or red. If you see red flashes longer than one second, turn down the volume.
