Bose L1 Model II Compared to L1 Pro32

From Bose Portable PA Encyclopedia
Jump to: navigation, search

Questions and comments or LinkedIn @STPro.Thank youST.
Feature Bose L1 Model II with B2 Bose L1 Pro32
  L1 Model II B2 85x200.jpg L1 Pro32 with subs 121x205.jpg
Feature Bose L1 Model II with B2 Bose L1 Pro32
Horizontal dispersion 180 degrees 180 degrees
Vertical dispersion 0 degrees (straight) 0 degrees (straight)
Output 115 dB / 121 dB peak  With Sub1: 117 dB / 123 dB peak
With Sub2: 122 dB / 128 dB peak
Audience up to 500 not specified
Speaker Array Twenty four 2.25" (57 mm) articulated array Thirty two 2.00" (51 mm) articulated cricket drivers
Woofer Two 10" low frequency drivers in the B2 Sub1:One 7" x 13" neodymium racetrack transducer
Sub2:One 10"x 18" neodymium racetrack transducer
Low Frequency  40 Hz - 3dB With Sub1:37 Hz - 3dB
With Sub2:42 Hz - 3dB
Crossover 200 Hz 200 Hz
Power to speakers Biamped
  •  250 Watts RMS mid-high Cylindrical Radiators
  •  250 Watts RMS B2
  •  500 Watts total
Biamped
  • Power Stand 480 Watts RMS mid-high array
  • Sub1 480 Watts RMS
  • Sub2 1000 Wattes RMS
  • 960/1480 Watts total
Weight Total system weight  49.67 kg (110 lb)
  • Power Stand: 10.7 kg (32.0 lb)
  • Cylindrical Radiators (pair): 15.3 kg (33.7 lb)
  • B2 Bass Module: 23.67 kg (52.2 lb)
Total system weight with
Sub1 29.1 kg (64.1 lb)
Sub2 36.4 kg (80.3 lb)
  • Power Stand: 5.9 kg (13.0 lb)
  • Mid-High arrays (2) 7.1 kg (15.6 lb)
  • Sub1 16.1 kg (35.5 lb)
  • Sub2 23.4 kg (51.7 lb)
Dimensions (H x W x D) L1 Model II Power Stand
213.4 x 66.0 x 66.0 cm (84.2 x 26.0 x 26.0 in)
B2 Bass Module
59.4 x 33.8 x 48 cm (23.4 x 13.31 x 18.9 in)
Footprint (floor space required)
L1 Model II with B2 (W x D) 71.0 x 66.0 cm (28.0 x 26.0 in)
L1 Pro32
213.5 × 34.5 × 55 cm (84.1 × 13.6 × 21.7 in)
Sub1 53.0 × 25.0 × 53.0 cm (20.9 × 9.8 × 20.9 in)
Sub2 69.0 × 30.5 × 55.0 cm (27.2 × 12.0 × 21.7 in)
Footprint (floor space required)
L1 Pro32 with Sub1 (W x D) 59.4 x 55.1 cm (23.4 x 21.7 in)
L1 Pro32 with Sub2 (W x D) 65.0 x 55.1 cm (25.6 x 21.7 in)

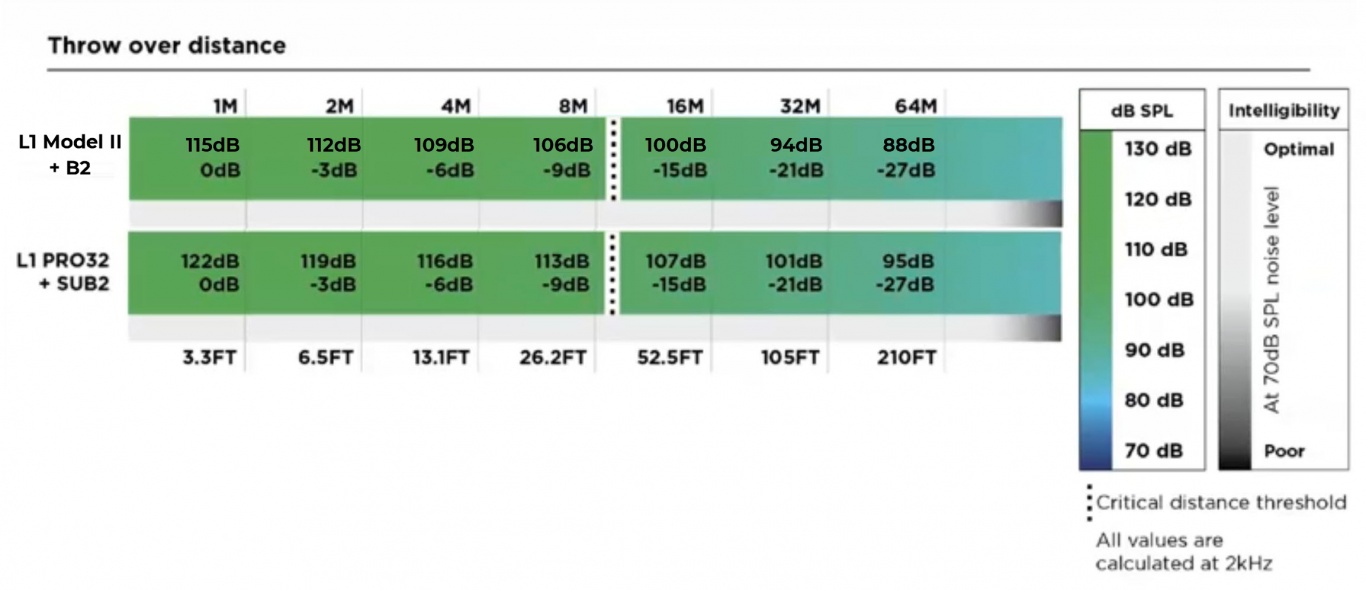

Sound Projection Click for more comparisons
ToneMatch® Presets No Channels 1 and 2
Full suite of ToneMatch Presets available in the ToneMatch mixers, built-in. Set using the L1 Mix App.
Battery No No
Connections Input
  • 6 mm (1/4" Tip-Ring or Tip-Ring-Sleeve) balanced / unbalanced
  • ToneMatch Port
Channels 1 and 2
Combo Jacks
XLR / 6 mm (1/4" Tip-Ring or Tip-Ring-Sleeve) balanced / unbalanced
Channel 3/Aux Input
  • 6 mm (1/4" Tip-Ring or Tip-Ring-Sleeve) balanced / unbalanced
  • 3 mm (1/8" Tip-Ring-Sleeve) accepts stereo or mono input
  • Bluetooth input
Tone Controls No Channel 1 * Bass / Treble Channel 2 * None
Line Out No XLR balanced
Bluetooth input No Yes: Channel 3
Supports Bluetooth 5.x
Reverb No Channels 1 and 2 Yes
Channel 3 None
ToneMatch Port Yes full support for T1/T4S
T8S not supported
Yes full support for T4S/T8S
power only for T1
System EQ No Yes
Live/Music/Speech/Off
Scenes No Yes
Store/recall system settings via Bose L1 Mix App
Bose L1 Mix App No Yes
Wireless control over volume, tone, reverb and system EQ
