Please note: Bose recommends that if you have two Model II systems using the same source, that you place the Model II systems at least 20 feet apart (6 meters). This is to avoid Multiple Source Interference.

Dual Mono

T1 This information is applicable to the T1 ToneMatch® audio engine
L1 Model 1S This information is applicable to the L1®  Model 1S
L1 Model II This information is applicable to the L1®  Model II

Please note: Bose recommends that if you have two Model II systems using the same source, that you place the Model II systems at least 20 feet apart (6 meters). This is to avoid Multiple Source Interference

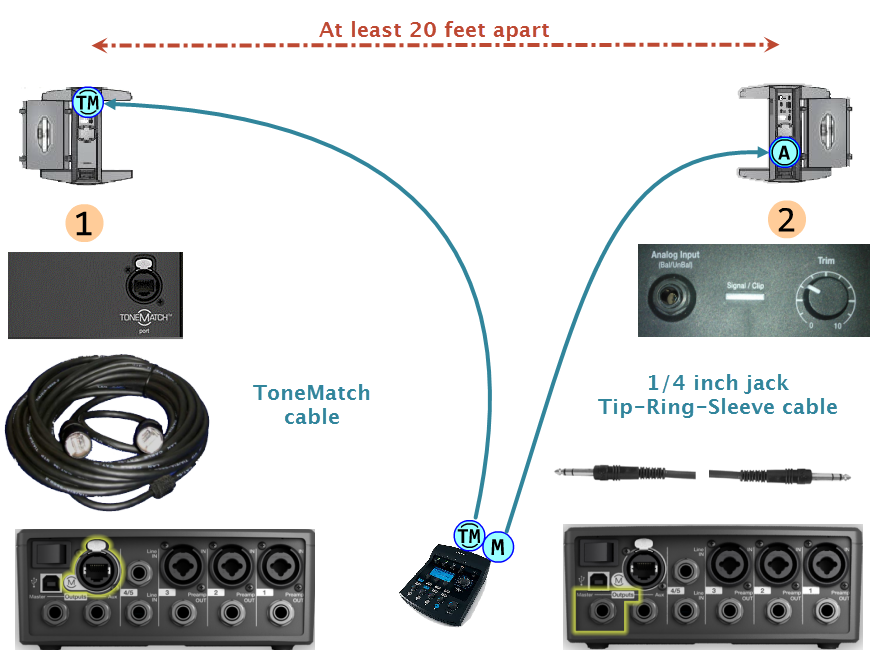

Running two Model II systems with the same source is running Dual Mono and not recommended unless the L1®s are at least 20 feet apart.


System 1

Connect the first system with the ToneMatch cable that came with the T1®.

  • T1® ToneMatch port to the Model II Power Stand ToneMatch port.
System 2

Connect the second system with a ¼ inch jack Tip-Ring-Sleeve cable

  • T1® Master Output to the Model II Power Stand Analog input
    • on the Model II Power Stand set the analog input trim to "3" and adjust as necessary to get a good balance with the other system.
    • For best results use a Tip-Ring-Sleeve (balanced) connection.
      You can use a Tip-Sleeve (unbalanced connection) but the Tip-Ring-Sleeve (balanced connection is preferred).

Model II Analog input trim (volume, or gain) control

There is a trim control for the analog input.

Model II Analog Input Trim.png

  1. Set the Trim control on the power stand to the 0 (zero) position.
  2. Connect the T1 Master Output to the Analog Input using a 1/4 inch (6mm) Tip-Ring-Sleeve cable
  3. Adjust the volume of the audio source to the maximum output without distortion.
  4. While playing music through the T1®, increase the Trim level so that the Signal/Clip indicator glows green or yellow.
  5. If the Signal/Clip indicator glows red, decrease the Trim level so that it glows only green or yellow.

Model 1S Analog Input

Set the input trim to 10:00 - 11:00 o'clock to get results similar to the other L1® connected through the ToneMatch port.

Stereo

This article will primarily be of interest to DJs.

You can run a two signals (for example stereo tracks) through a single T1 ToneMatch Audio Engine out to two L1 s. How you do that will depend on your input, USB or Analog. Both of these methods involve sending one track to the Main output, and one track to the Aux output.

Related Article: T1 ToneMatch® Audio Engine / Mono Output to Two L1®s



Analog

Summary

In this case you connect one half of the stereo pair to one T1® Channel (1, 2 or 4/5) and let that be amplified through the T1® Main output. Then connect the other half of the stereo pair to another T1® Channel. In this example I did that on Channel 3. By routing Channel 3 exclusively to the T1® Aux output, you can keep the Stereo channels left and right separated.

Once you get the balance set you will probably want to control the overall volume from the sound source. It is not really convenient to do that in the T1® because there is no joint control for both Main and Aux outputs.

T1™ Aux

Using Aux to send a signal exclusively to a second System

Using a T1 ToneMatch Audio Engine with two L1 s, you may want to send an input to one System, but not the other.

In this example, we are taking an input in Channel 3, and sending it to Aux, and not to Main.

  1. Set the Selector to Aux

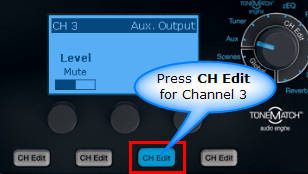

  2. Press CH Edit for Channel 3

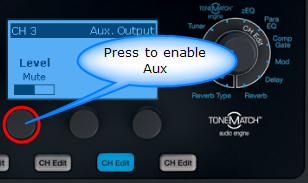

  3. Press button 1 to enable Aux

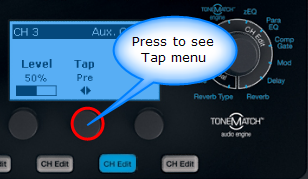

  4. Press button 2 to see the Tap menu

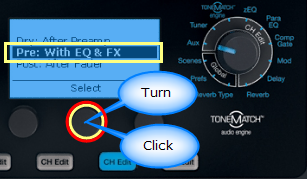

  5. Turn the Tap setting to Pre: With EQ & FX. Press the button to Select.

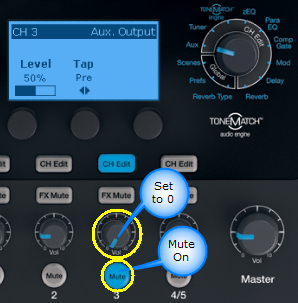

  6. Set the Channel Volume to 0 (zero).
    I set the Volume to 0 to avoid unwanted consequences of accidentally hitting Mute. Just to be safe, I also Mute the channel.
  7. Adjust Aux Volume if necessary.
    You will probably end up at or near 100%

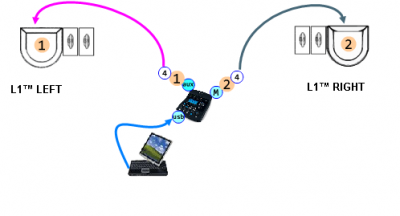

USB

Playback stereo tracks from a USB connection from your computer

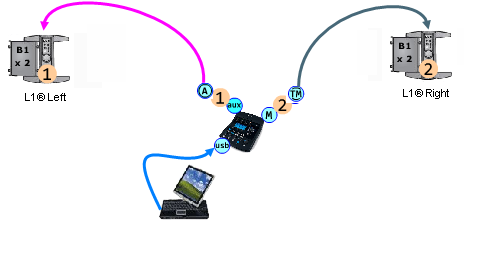

USBtoStereoPhysical 3.png



USBtoStereoL1Model I.png

If you need to playback stereo tracks from a USB from your computer, this how you can do it.

NOTE: You will want to control the volume and balance from your computer. It is not convenient to do this from the T1 ToneMatch Audio Engine in this configuration because one of the channels is routed through the T1 ToneMatch Audio Engine Aux buss and the other is through the Master. It is not easy to control both of these at the same time on the T1 ToneMatch Audio Engine.

Equipment Required

  • L1® Classic/Model I or Model 1S or Model II or Compact (L1® LEFT)
  • L1® Classic/Model I or Model 1S or Model II or Compact (L1® RIGHT)



Initial Connections

Turn down the outputs and volume

Start with your computer with the volume set all the way off, muted or at least really low. Things can get loud very quickly if you are not careful.

On the T1® turn down the Master Volume and mute all Channels.

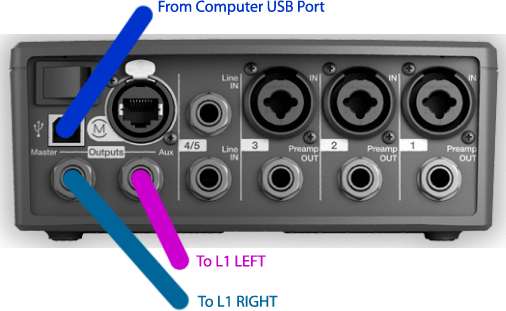

Physical Connections

Make the following connections. If you are running two L1 Classics or L1 Model I or L1 Compact Systems, then you will also need the optional T1 ToneMatch® Audio Engine power supply (not shown below).

USBtoStereo 0.png

Model II

If one of the L1®s is a L1 Model II then you will not need the connection marked "To L1 RIGHT". This will be replaced by the ToneMatch® connection to the L1® Model II.

USB to PC

We want to split the USB signal from the computer so that

  • the Stereo Left channel goes through Channel 4/5 to Aux and from there to an analog connection to an L1®
  • the Stereo Right channel goes through to Master and from there to an analog connection or digital connection to another L1™

Prefs

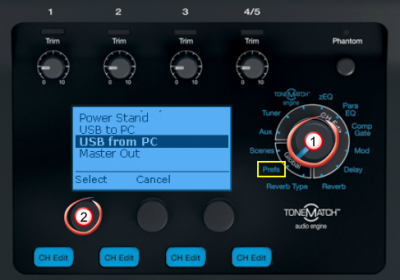

  • Turn the main selector to Prefs.
  • Select USB from PC


  • Set Left: Ch 4/5
  • Set Right: Master

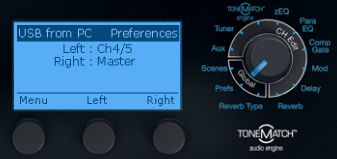

USBtoStereo 1.png

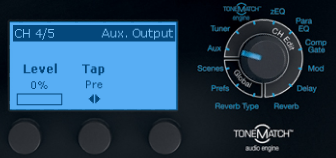

Channel 4/5

  • Press Chan 4/5 CH Edit
  • Rotate the selector to Aux
  • Set the Level to 0% (not bypass)
  • Set the Tap to Pre
  • Mute this Channel. You can turn down the level as well. It you leave the Mute off then you will be sending both Left and Right stereo signals to the Main output.

USBtoStereo 2.png

Setting the Relative Levels

  • On the Computer: Start playing a track. Turn up the volume on the computer a little. You won't hear anything yet.
  • On the T1® Turn up the Master Volume. You should be hearing the Stereo Right channel.

Work the volume on the computer and the T1® until you are happy with a workable volume level.

  • On the T1® Turn up the Aux Level. Your setting will look something like this. The actual value you set may be different. That's okay.

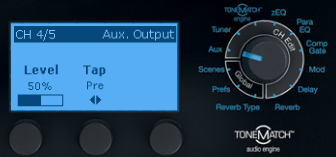

USBtoStereo 3.png

This is the Stereo Left channel. Bring up the volume until it matches the output from the Master. Note: This Aux volume is completely independent of the Master volume. This is why you want to set it to be equally balanced with the Master. You will then be able to control the balance and level from the computer.

Download Shared Scene

Here is a Shared Scene you can load into your T1 ToneMatch Audio Engine. If you have been following along and have set up our T1 ToneMatch® Audio Engine with the settings above, you do not need to download this Shared Scene. I just included this as a convenience in case you wanted to try the Shared Scene system.

This scene has very generic settings for Channels 1,2 and 3 and the settings discussed in this article for Channel 4/5.

  • Channels 1,2,3 are set to Vocal Microphones: Handheld Microphones - no effects, muted.
  • Channel 4/5 is set as described above with USB routed to 4/5 routed to Aux. This is muted so that this Channel is not sent to the Main output.

Please read the entire article before using this Shared Scene. It is provided as a convenience to save you some time is you want to have the same settings.

Warning

This is an experimental file and I strongly recommend that you back up all your scenes before loading this one, just in case you overwrite something by accident. I have tested this and it works in my environment, but I cannot accept responsibility for any issues you may have when you apply it to your T1 ToneMatch® Audio Engine

You will need to understand how to use the L1 Software Updater program to load this Shared Scene.

Things you must have and understand to use a Shared Scene

Get the L1® Updater Software


These are the latest versions of the ToneMatch Updater application.

ToneMatch® Updater Software application. (two versions available)

If you have questions please see ToneMatch Updater discussion.


To update your L1 Model II with a T1 ToneMatch Audio Engine use the older version of the L1 Updater software


macOS Issues

[Filename] can't be opened because the identity of the developer cannot be confirmed

If you see "[Filename] can't be opened because the identity of the developer cannot be confirmed" message displayed

Mac OSX users may see this message when trying to install a Bose app. If this message appears, try the following:

Mac users may need to hold the Control key (Ctrl) when opening the file.

Various versions of the Mac OS cannot identify Bose as a developer. The Mountain Lion version of OS X (10.8) includes a feature called Gatekeeper to protect users from installing applications of non-Apple identified developers. The Mavericks version of OS X (10.9.5) temporarily cannot identify Bose as a developer as well.

To open the application, follow these steps:

  • Press and hold the Control key while clicking on the application icon
    • Note: Do not use Launchpad to do this. Launchpad doesn’t allow you to access the shortcut menu

In the menu that appears, select Open at the top of the list

A confirmation window will appear. Select Open

Without Control click:

SoundTouch-osx-installer 01.png


With Control click:

SoundTouch-osx-installer 02.png

More information on Gatekeeper can be found at http://support.apple.com/kb/HT5290






Warning

If your firmware update is not successful - Caution

After you update the T1 ToneMatch Audio Engine or L1 Model II firmware, if you see a window on the PC that says the update was not successful, you should:

  1. turn the L1 and T1 off
  2. wait three seconds
  3. then turn the L1 and T1 back on

Do this before trying the update again!

This allows the L1 and T1s to re-establish a good copy of the software.

Source: If your firmware update is not successful - Caution


Shared Scene Download

Here is a very simple Scene that includes the setup described above.

Media:Shared_Scene_USBtoStereoL1s.BOS

Variations

One Classic / Model I and One Model II

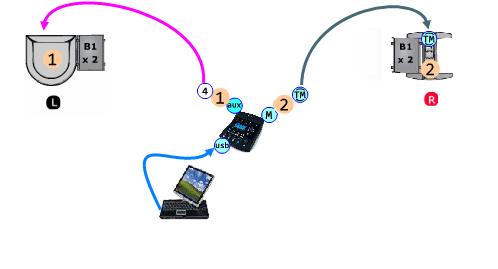

USBtoStereoPhysical 2.png

On the L1® Classic / L1® Model I set the Power Stand Input Level to 3. You may want to fine tune that a bit but it should be a reasonable starting point.

Two Model IIs

USBtoStereoPhysical 3.png

For the L1 Model II with the Analog connection - try setting the Analog input trim 3. You may want to fine tune that a bit but it should be a reasonable starting point.

Two Model 1S

USBtoStereoPhysical 3.png

For the L1 Model II with the Analog connection - try setting the Analog input trim 3. You may want to fine tune that a bit but it should be a reasonable starting point.

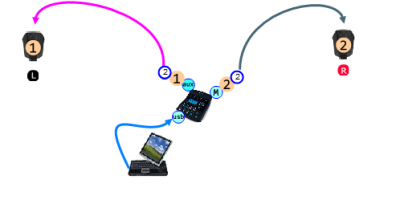

Two Compacts



For the L1 Compact connect to Channel 2 with the volume straight up. You may want to fine tune that a bit but it should be a reasonable starting point.

Compact Channel 2 Line Level.png

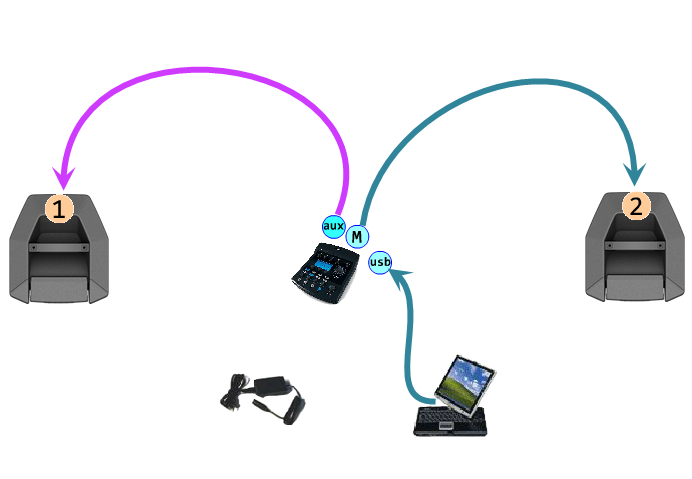

Two F1

Stereo

This article will primarily be of interest to DJs.

You can run a two signals (for example stereo tracks) through a single T1 ToneMatch Audio Engine out to two L1 s. How you do that will depend on your input, USB or Analog. Both of these methods involve sending one track to the Main output, and one track to the Aux output.

Related Article: T1 ToneMatch® Audio Engine / Mono Output to Two L1®s



Analog

Summary

In this case you connect one half of the stereo pair to one T1® Channel (1, 2 or 4/5) and let that be amplified through the T1® Main output. Then connect the other half of the stereo pair to another T1® Channel. In this example I did that on Channel 3. By routing Channel 3 exclusively to the T1® Aux output, you can keep the Stereo channels left and right separated.

Once you get the balance set you will probably want to control the overall volume from the sound source. It is not really convenient to do that in the T1® because there is no joint control for both Main and Aux outputs.

T1™ Aux

Using Aux to send a signal exclusively to a second System

Using a T1 ToneMatch Audio Engine with two L1 s, you may want to send an input to one System, but not the other.

In this example, we are taking an input in Channel 3, and sending it to Aux, and not to Main.

  1. Set the Selector to Aux
  2. Press CH Edit for Channel 3
  3. Press button 1 to enable Aux
  4. Press button 2 to see the Tap menu
  5. Turn the Tap setting to Pre: With EQ & FX. Press the button to Select.
  6. Set the Channel Volume to 0 (zero).
    I set the Volume to 0 to avoid unwanted consequences of accidentally hitting Mute. Just to be safe, I also Mute the channel.
  7. Adjust Aux Volume if necessary.
    You will probably end up at or near 100%

USB

Playback stereo tracks from a USB connection from your computer

USBtoStereoPhysical 3.png



USBtoStereoL1Model I.png

If you need to playback stereo tracks from a USB from your computer, this how you can do it.

NOTE: You will want to control the volume and balance from your computer. It is not convenient to do this from the T1 ToneMatch Audio Engine in this configuration because one of the channels is routed through the T1 ToneMatch Audio Engine Aux buss and the other is through the Master. It is not easy to control both of these at the same time on the T1 ToneMatch Audio Engine.

Equipment Required

  • L1® Classic/Model I or Model 1S or Model II or Compact (L1® LEFT)
  • L1® Classic/Model I or Model 1S or Model II or Compact (L1® RIGHT)



Initial Connections

Turn down the outputs and volume

Start with your computer with the volume set all the way off, muted or at least really low. Things can get loud very quickly if you are not careful.

On the T1® turn down the Master Volume and mute all Channels.

Physical Connections

Make the following connections. If you are running two L1 Classics or L1 Model I or L1 Compact Systems, then you will also need the optional T1 ToneMatch® Audio Engine power supply (not shown below).

USBtoStereo 0.png

Model II

If one of the L1®s is a L1 Model II then you will not need the connection marked "To L1 RIGHT". This will be replaced by the ToneMatch® connection to the L1® Model II.

USB to PC

We want to split the USB signal from the computer so that

  • the Stereo Left channel goes through Channel 4/5 to Aux and from there to an analog connection to an L1®
  • the Stereo Right channel goes through to Master and from there to an analog connection or digital connection to another L1™

Prefs

  • Turn the main selector to Prefs.
  • Select USB from PC


  • Set Left: Ch 4/5
  • Set Right: Master

USBtoStereo 1.png

Channel 4/5

  • Press Chan 4/5 CH Edit
  • Rotate the selector to Aux
  • Set the Level to 0% (not bypass)
  • Set the Tap to Pre
  • Mute this Channel. You can turn down the level as well. It you leave the Mute off then you will be sending both Left and Right stereo signals to the Main output.

USBtoStereo 2.png

Setting the Relative Levels

  • On the Computer: Start playing a track. Turn up the volume on the computer a little. You won't hear anything yet.
  • On the T1® Turn up the Master Volume. You should be hearing the Stereo Right channel.

Work the volume on the computer and the T1® until you are happy with a workable volume level.

  • On the T1® Turn up the Aux Level. Your setting will look something like this. The actual value you set may be different. That's okay.

USBtoStereo 3.png

This is the Stereo Left channel. Bring up the volume until it matches the output from the Master. Note: This Aux volume is completely independent of the Master volume. This is why you want to set it to be equally balanced with the Master. You will then be able to control the balance and level from the computer.

Download Shared Scene

Here is a Shared Scene you can load into your T1 ToneMatch Audio Engine. If you have been following along and have set up our T1 ToneMatch® Audio Engine with the settings above, you do not need to download this Shared Scene. I just included this as a convenience in case you wanted to try the Shared Scene system.

This scene has very generic settings for Channels 1,2 and 3 and the settings discussed in this article for Channel 4/5.

  • Channels 1,2,3 are set to Vocal Microphones: Handheld Microphones - no effects, muted.
  • Channel 4/5 is set as described above with USB routed to 4/5 routed to Aux. This is muted so that this Channel is not sent to the Main output.

Please read the entire article before using this Shared Scene. It is provided as a convenience to save you some time is you want to have the same settings.

Warning

This is an experimental file and I strongly recommend that you back up all your scenes before loading this one, just in case you overwrite something by accident. I have tested this and it works in my environment, but I cannot accept responsibility for any issues you may have when you apply it to your T1 ToneMatch® Audio Engine

You will need to understand how to use the L1 Software Updater program to load this Shared Scene.

Things you must have and understand to use a Shared Scene

Get the L1® Updater Software


These are the latest versions of the ToneMatch Updater application.

ToneMatch® Updater Software application. (two versions available)

If you have questions please see ToneMatch Updater discussion.


To update your L1 Model II with a T1 ToneMatch Audio Engine use the older version of the L1 Updater software


macOS Issues

[Filename] can't be opened because the identity of the developer cannot be confirmed

If you see "[Filename] can't be opened because the identity of the developer cannot be confirmed" message displayed

Mac OSX users may see this message when trying to install a Bose app. If this message appears, try the following:

Mac users may need to hold the Control key (Ctrl) when opening the file.

Various versions of the Mac OS cannot identify Bose as a developer. The Mountain Lion version of OS X (10.8) includes a feature called Gatekeeper to protect users from installing applications of non-Apple identified developers. The Mavericks version of OS X (10.9.5) temporarily cannot identify Bose as a developer as well.

To open the application, follow these steps:

  • Press and hold the Control key while clicking on the application icon
    • Note: Do not use Launchpad to do this. Launchpad doesn’t allow you to access the shortcut menu

In the menu that appears, select Open at the top of the list

A confirmation window will appear. Select Open

Without Control click:

SoundTouch-osx-installer 01.png


With Control click:

SoundTouch-osx-installer 02.png

More information on Gatekeeper can be found at http://support.apple.com/kb/HT5290






Warning

If your firmware update is not successful - Caution

After you update the T1 ToneMatch Audio Engine or L1 Model II firmware, if you see a window on the PC that says the update was not successful, you should:

  1. turn the L1 and T1 off
  2. wait three seconds
  3. then turn the L1 and T1 back on

Do this before trying the update again!

This allows the L1 and T1s to re-establish a good copy of the software.

Source: If your firmware update is not successful - Caution


Shared Scene Download

Here is a very simple Scene that includes the setup described above.

Media:Shared_Scene_USBtoStereoL1s.BOS

Variations

One Classic / Model I and One Model II

USBtoStereoPhysical 2.png

On the L1® Classic / L1® Model I set the Power Stand Input Level to 3. You may want to fine tune that a bit but it should be a reasonable starting point.

Two Model IIs

USBtoStereoPhysical 3.png

For the L1 Model II with the Analog connection - try setting the Analog input trim 3. You may want to fine tune that a bit but it should be a reasonable starting point.

Two Model 1S

USBtoStereoPhysical 3.png

For the L1 Model II with the Analog connection - try setting the Analog input trim 3. You may want to fine tune that a bit but it should be a reasonable starting point.


Two Compacts



For the L1 Compact connect to Channel 2 with the volume straight up. You may want to fine tune that a bit but it should be a reasonable starting point.

Compact Channel 2 Line Level.png



Two F1
